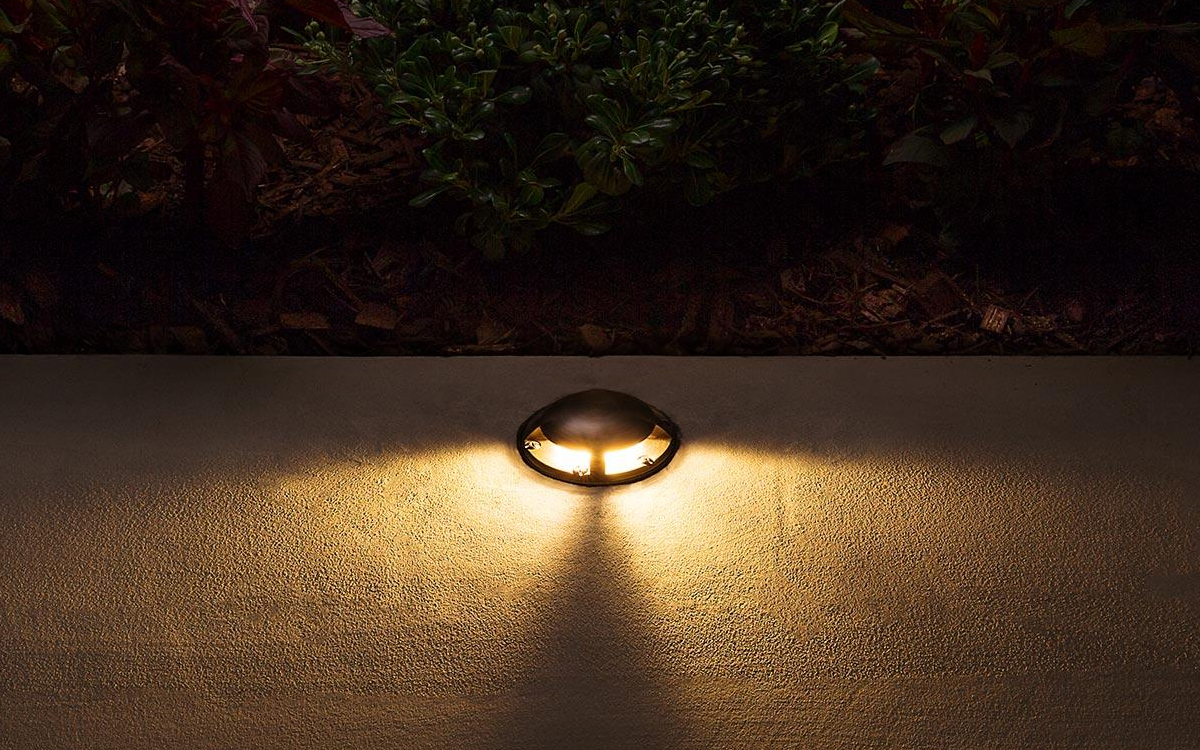

The FC LED In-Grade Light is an excellent choice for a wide range of LED applications, particularly excelling in environments requiring recessed installation. Its innovative installation sleeve facilitates easy removal and adjustment, especially when embedded in concrete, enhancing maintainability. The FC offers four distinct faceplate options and supports configurations up to 9 LEDs. A notable feature is the new ground wash faceplate, which is field-adjustable and designed with a no-glare finish, making it especially suitable for deck and patio lighting where glare reduction is essential.
Constructed from durable die-cast brass or aluminum, the FC boasts a two-layer marine-grade anodization and powder coat finish that ensures long-lasting protection against harsh outdoor conditions. It incorporates Cree® integrated LEDs paired with color temperature filters to provide a versatile range of lighting tones. The fixture is compatible with Luxor® technology, allowing advanced zoning, dimming, and, in some models, full RGBW color control. It operates on an input voltage of 10-15V and supports both phase and PWM dimming for precise light management.
Performance-wise, the FC offers multiple LED configurations, ranging from 3LED to 9LED setups, each delivering varying lumen outputs and efficiencies tailored to different application needs. For example, the 9LED version produces up to 719 lumens with an efficacy of 65 lumens per watt and a color rendering index (CRI) of 84, ensuring vivid, high-quality illumination. Additionally, the ZDC model includes zoning, dimming, and color control options with RGBW LEDs, expanding creative lighting possibilities. All variants maintain a minimum rated life of 72,000 hours (L70).
The FC is engineered with high-quality materials, including a die-cast C360 brass faceplate paired with a powder-coated A380 aluminum housing. The fixture includes black oxide stainless steel set screws and a PBT construction sleeve for durability. The wiring consists of 18 AWG cable designed to withstand temperatures up to 220°F (105°C) and offers 10 feet (3 meters) of length for flexible installation. Weighing 2.4 pounds (1.1 kg), the fixture operates reliably within ambient temperatures ranging from 0°F to 140°F (-18°C to 60°C).
A key feature is the MoistureBlock™ technology integrated into the socket, which prevents moisture from wicking into sealed areas, significantly enhancing the fixture’s durability in outdoor environments. The integrated LED module uses Cree LEDs with gold-plated connectors and conformal coating to resist corrosion and maximize reliability. Its proprietary intelligent driver regulates temperature via firmware, extending LED life. The LEDs are field upgradeable and replaceable, rated for 55,000 hours, with a maximum drive current of 1 amp.
Power requirements include an input of 10-15VAC or VDC at 50/60Hz, and the fixture requires a remote transformer, which is specified separately. The die-cast aluminum housing accommodates multiple LED configurations, from a single LED up to 9 LEDs or ZDC integrated LEDs. Installation is designed for recessed mounting in the upward direction only, ensuring optimal light distribution and fixture protection.
Optical options include polycarbonate lenses for color temperature adjustment, with preinstalled 2,700K filters and additional lenses available for 3,900K, 4,500K, and 5,200K. Interchangeable optics provide beam angles ranging from 10° to 58°, and lenses can be serviced in the field. Photometric data is calculated using the LM-79 standard for solid-state luminaires. The ground wash option is certified for drive-over use per IEC 60598-1, supporting loads up to 1,125 lbs (510 kg), making it suitable for durable outdoor surfaces.
The FC carries a 10-year limited warranty and offers a wildlife-friendly amber LED option available with the ZD 3LEDT variant. It is manufactured in an ISO 9001:2015 certified facility, ensuring consistent quality and reliability. The faceplate, made of die-cast C360 brass, is engineered for protection, glare control, walkway illumination, and optimized beam pattern, while some models feature aluminum faceplates. Lenses vary between tempered glass for shock resistance and frosted polycarbonate for high durability, with ABS light shields that mask specific light quadrants as needed.
Finish options include natural copper/brass, antiqued finishes with brushed or tumbled effects, and TGIC powder coat finishes. Antique finishes are sealed with a clear TGIC powder coat layer for durability, and brass accent pieces remain natural on certain finishes such as Bronze, Silver, Black, and Flat White. Hardware includes six black oxide stainless steel faceplate screws and two gold tamper-resistant wood screws to securely attach the housing to the installation sleeve.
The FC’s control capabilities leverage Luxor technology, which enables zoning of up to 250 groups, with dimming control in 1% increments between 0 and 100%. Additionally, models with RGBW LEDs can cycle through 30,000 colors for versatile lighting effects. Customers may select ZD options for zoning and dimming or ZDC for zoning, dimming, and color control. The standard fixture is zoneable via Luxor by default.
Sustainability is a core principle in the design and manufacturing of the FC, with recycled materials used wherever possible without compromising functionality. The LED technology delivers high-quality light with optimal energy efficiency, long lifespan, and durability. International compliance is ensured through adherence to IEC 60598-1 and IEC 60598-2-7 standards, with compliant versions selectable in the parts builder, underscoring the fixture’s reliability and safety for global applications.
