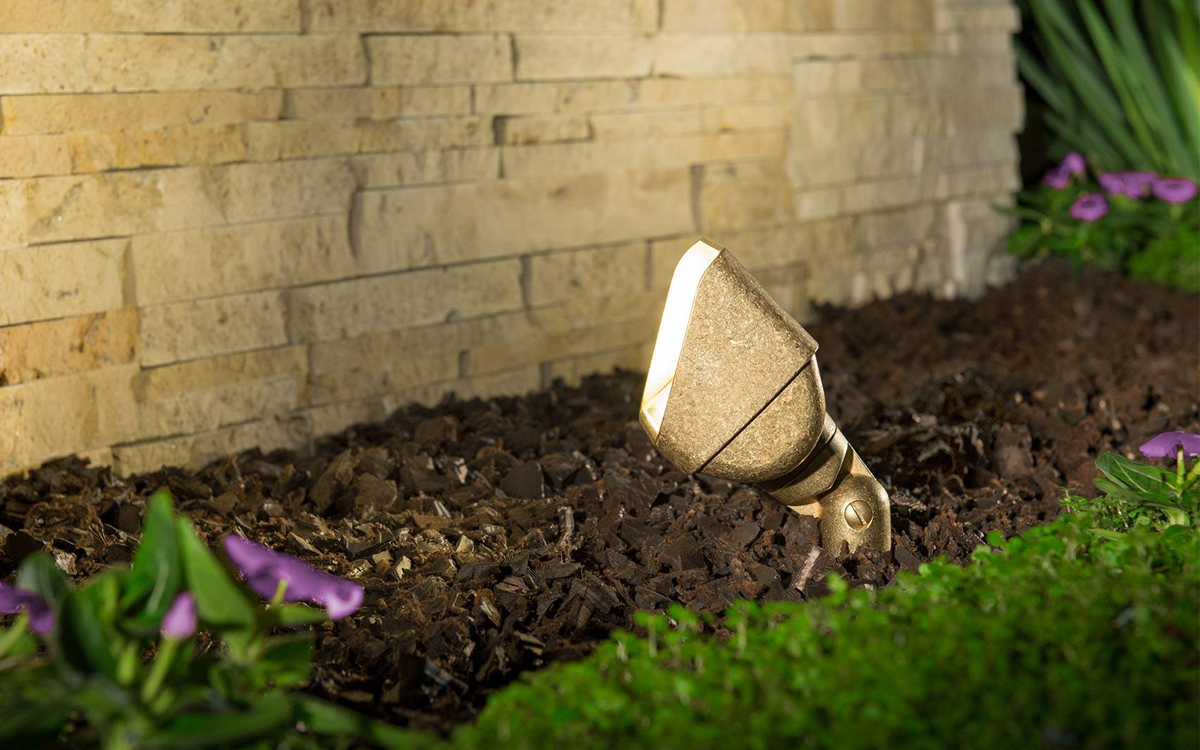

The LC LED Uplight is a high-performance wall wash luminaire available in 3, 6, or 9 LED configurations, with a ZDC option offering RGBW capabilities when integrated with Luxor® systems. Designed for both aesthetic and functional landscape lighting, the LC is constructed from durable die-cast aluminum or brass and features a two-layer marine-grade anodization and powder coat finish for long-lasting outdoor performance. This fixture delivers total lumen outputs ranging from 305 to 810 for standard configurations, and between 195 to 460 lumens in ZDC mode, all while maintaining impressive efficacy and a minimum rated life of up to 72,000 hours.
The LC uplight uses Lumileds® integrated LEDs with a proprietary on-board intelligent driver that regulates temperature and maximizes LED lifespan. The LED module is conformally coated, features gold-plated connectors, and is field-upgradeable. Each fixture includes a tempered frosted glass lens for thermal and impact resistance, and a die-cast brass or aluminum shroud with a 30° glare control cutoff. The optics provide a very wide flood beam (90°), with center beam candlepower up to 400, depending on the model. The fixture operates on 10-15VAC/VDC input power and is dimmable via phase-cut dimming or controlled through Luxor systems for advanced zoning, dimming, and color-changing options.
Precision is built into every aspect of the LC, including the ProAim™ adjustability system and tamper-resistant features. The die-cast knuckle, in brass or aluminum, offers 9° increments of vertical tilt over a 220° range and includes ½"-14 NPSM threads for secure positioning. MoistureBlock™ technology within the socket prevents water ingress, safeguarding internal components. The 18 AWG, 10' SPT-1W wire lead is rated for high temperatures and voltages, ensuring reliable power delivery.
Finish options for the LC include standard powder coat, natural brass, or antique bronze with brushed or tumbled textures. Powder-coated models are sealed with anodization and TGIC polyester powder for maximum weather resistance, tested to ASTM standards. Antique finishes are sealed with a clear protective TGIC powder coat layer. The fixture’s ambient operating range spans from 0°F to 140°F (-18°C to 60°C), and its installation weight is 3.8 lbs (1.7 kg).
The LC LED Uplight supports Luxor zoning and dimming technology. Standard models support zoning; ZD models add dimming capabilities, while the ZDC version introduces full RGBW color tuning, allowing control of up to 250 groups and 30,000 color options. Installation is intended in the upward orientation only, using the included 12” ABS slotted spike. International models are compliant with IEC 60598 standards when paired with the appropriate IP65+ rated mounting accessories.
Designed with sustainability in mind, the LC fixture incorporates recycled materials where possible without compromising performance. It combines high-quality light with energy efficiency, long lifespan, and durable construction—making it a versatile and reliable choice for architectural and landscape lighting projects.
