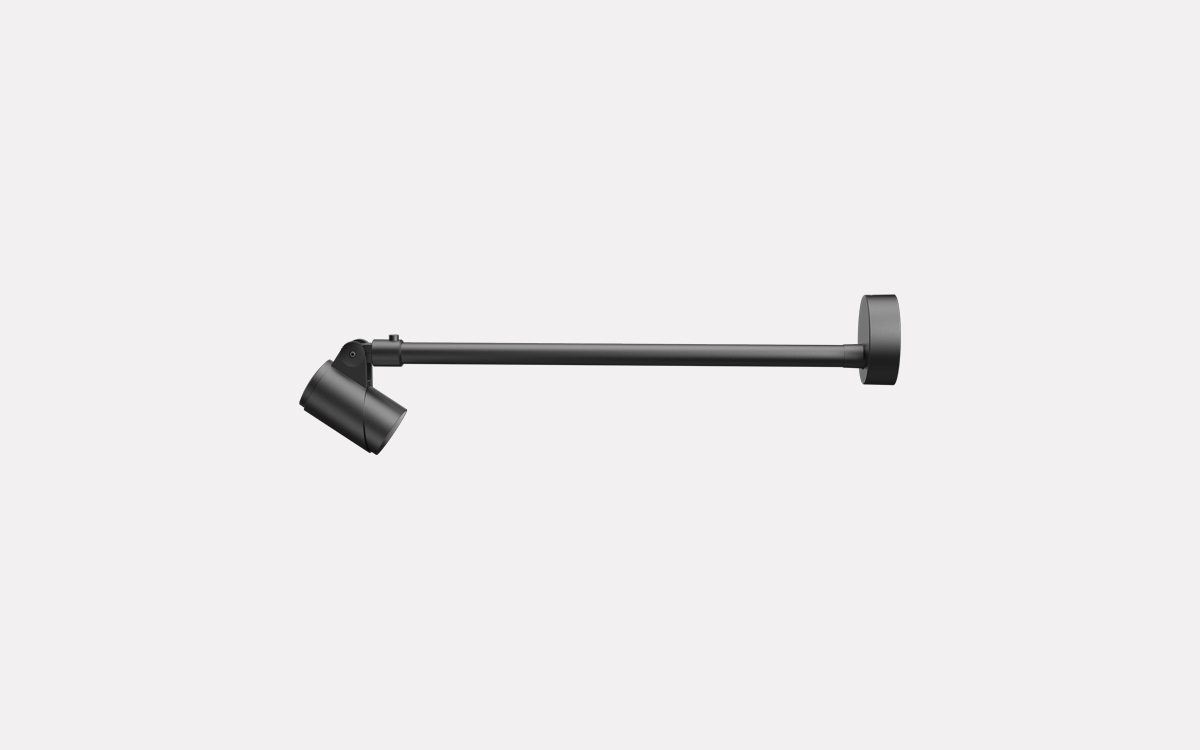

The FLC311 LED projector with wall bracket is a high-performance outdoor lighting solution designed for durability and visual precision. With an IP66 rating and IK08 impact protection, it is built for challenging environments. The luminaire features a marine-grade, all-aluminium body enhanced with 5CE superior corrosion protection and PCS hardware, ensuring long-term reliability in coastal or industrial settings.
The projector is equipped with a safety glass lens and a factory-sealed housing, eliminating the need for on-site opening during installation. Its CAD-optimized optics deliver superior beam control and minimized glare, while advanced thermal management technology maximizes lumen output and extends LED life.
An integral EC electronic converter is included as standard. Mains voltage models are supplied in ON-OFF Class I, with optional 1–10 V analogue dimming or DALI interface available upon request. Two cable entries are provided for installation flexibility.
The knuckle mounting bracket enables precise aiming with 340° rotation, 54° forward tilt, and 90° backward tilt, making the luminaire adaptable to various architectural or landscape lighting applications. Optical accessories are factory-installed and must be specified at the time of ordering.
The FLC311 offers excellent mechanical integrity with a windage (EPA) of 0.065 m². It includes a Silicone CCG® Controlled Compression Gasket for sealing, and is available in multiple RAL color finishes, including Signal Black, White Aluminium, Grey Aluminium, Anthracite Grey, and Traffic White.
