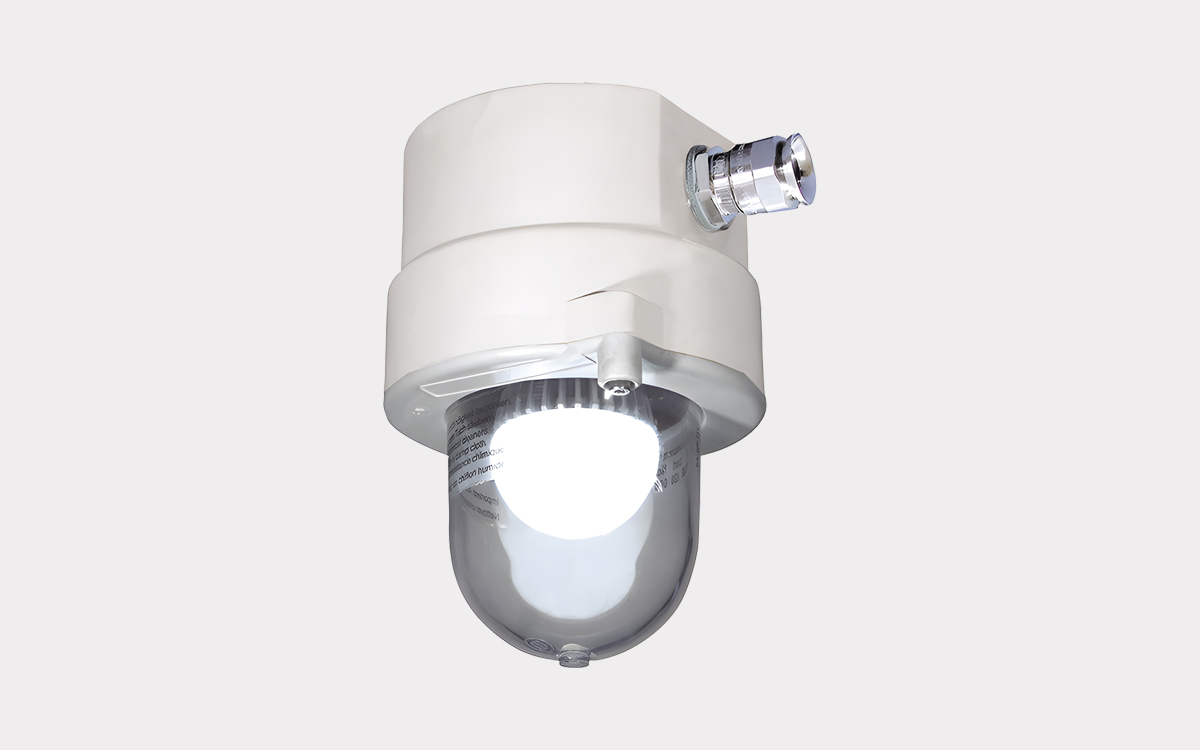

The CEAG dKLK LED explosion-protected non-metallic emergency light fixtures, offered by Eaton's Crouse-Hinds Division, are specially designed for use in hazardous environments classified as Zone 1, 21, 2, and 22. These fixtures are well-suited for ceiling and wall mounting applications where reliable signaling and escape lighting are critical. The dKLK LED series is particularly effective for intermittent operation as flashing lights, but when paired with an optional flash module, they can function as strobe lights. Additionally, when equipped with a colored protective cover, these fixtures serve as signal lights, making them versatile for a range of industrial safety needs.
Constructed from heavy-duty, fiberglass-reinforced polyester with protective globes made from transparent or colored polycarbonate, the dKLK LED fixtures are built to withstand harsh physical and environmental conditions. They are resistant to dust, dirt, gases, vapors, smoke, fumes, moisture, corrosive substances, and wet environments. This robust non-metallic construction ensures durability and longevity, even in demanding industrial atmospheres. The fixtures also offer a high degree of protection, boasting an IP66 rating, making them well-suited for both indoor and outdoor use in challenging locations.
Certified to meet stringent international safety standards, the CEAG dKLK LED series complies with the ATEX Directive 2014/34/EU and IECEx certifications. They are marked according to 2014/34/EU as Ex II 2G Ex d IIC T6 Gb for explosive gas atmospheres and Ex II 2D Ex tb IIIC T80°C Db for explosive dust atmospheres. Their protection rating per EN 60529 is IP66, ensuring resistance against dust ingress and powerful water jets. These certifications validate their safe operation in Zones 1, 2, 21, and 22, across temperature class T6.
The dKLK 23 LED model comes pre-equipped with a high-quality LED lamp, combining the benefits of advanced LED technology with the essential features of energy efficiency and environmental friendliness. These fixtures are mercury-free, consume less energy, offer long service lives, and require minimal maintenance, which translates into significant cost savings over their operational lifespan. Their design supports intermittent flashing operation, making them ideal for signaling purposes, while the option to add a flash module enables strobe light functionality for enhanced visibility.
Installation and connectivity of the dKLK LED fixtures are designed for flexibility and safety. They can be connected through flameproof eXLink coupler plugs or flameproof cable glands, ensuring secure and compliant electrical connections in hazardous environments. Furthermore, with the addition of the optional V-CG-S monitoring module featuring a coding switch that supports up to 20 addresses, these luminaires can be integrated into CEAG’s emergency lighting supply systems. This allows for individual monitoring of each fixture, enhancing the reliability and management of emergency lighting networks.
Overall, the CEAG dKLK LED explosion-protected non-metallic emergency light fixtures provide a highly reliable, durable, and versatile solution for emergency escape and signaling applications in hazardous zones. Their robust construction, compliance with international safety standards, and advanced LED technology make them an excellent choice for industries requiring dependable illumination and signaling under extreme conditions.
