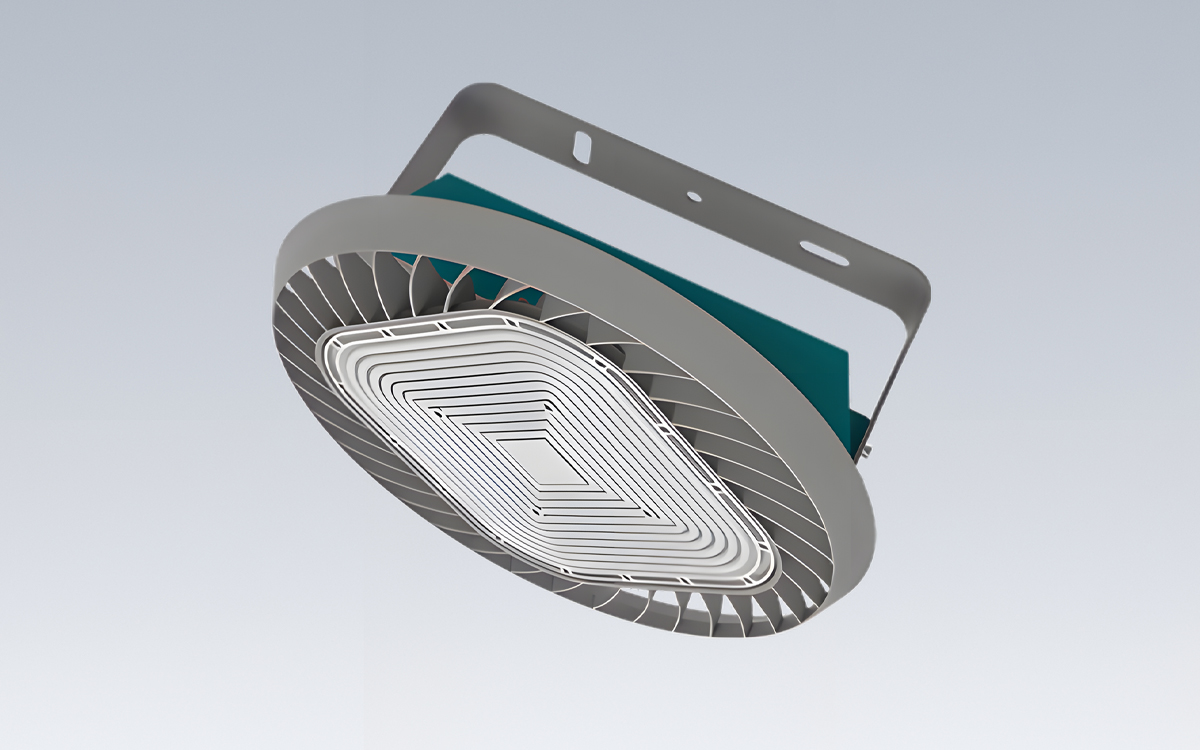

The tempLED RayCrane LED crane light provides precise and powerful lighting for work areas directly under cranes, making it an ideal choice for industrial operations requiring reliable visual support. Available in two output levels, 200 and 300 watts, and equipped with symmetrical beam angles of 60 and 90 degrees, the luminaire allows optimal selection for various crane types and installation heights. The high-performance light control optics direct light efficiently while reducing stray light, ensuring well-lit work zones without compromising visual comfort. Each RayCrane light comes standard with a reinforced stainless steel mounting bracket, a specialized crane mounting kit, and integrated fall protection, supported by a five-year full warranty and a ten-year spare parts guarantee for long-term investment security.
The construction of the RayCrane luminaire emphasizes shock and vibration resistance, with screw-locking assemblies and rubber-buffered mounting for vibration damping on crane systems. Its modular design allows easy exchange and replacement of main components, while the solid, powder-coated die-cast aluminum housing combines durability with weight optimization. A powerful, dust-permeable heat sink ensures thermal management, and a pressure compensation membrane prevents condensation. The impact- and UV-resistant linear optical system offers effective stray light reduction, enhancing operational safety and visual performance. Optional high-voltage versions of the energy-efficient constant current power supplies expand compatibility for demanding industrial environments.
Lighting performance ranges from 34,000 to 51,000 lumens with a system efficiency of up to 170 lumens per watt. The RayCrane maintains color temperatures of 4,000 and 5,000 kelvins, a color rendering index (CRI) above 80, and consistent color uniformity under 5 SDCM. Photobiological safety meets IEC/TR 62778 standards, and the compact flicker degree is limited to 1 percent. Symmetrical beam angles of 60 and 90 degrees are available, ensuring precise coverage and minimal stray light thanks to the linear optical technology.
Electrically, the RayCrane operates with AC voltages from 90 to 240 volts and DC voltages from 140 to 250 volts, supporting a power factor above 0.95 and total harmonic distortion below 10 percent. The luminaire includes overvoltage protection, overheating protection, and integrated temperature monitoring. Classified for ATEX T5 environments, it can operate in ambient temperatures from –40 to +50 degrees Celsius, maintaining a maximum Tc temperature of +90 degrees Celsius. The IP65-rated housing provides protection against dust and water ingress, while impact resistance is rated IK08. The housing and heat sink are made from die-cast aluminum, complemented by a natural-finish reinforced stainless steel bracket and impact- and UV-resistant polycarbonate optical system. The luminaire color is white aluminum RAL 9006, with a water blue power supply housing (RAL 5021) and a powder-coated surface finish. Standard 40 cm H05RN-F 3G1 supply cables with open cable ends are included, supporting three-pole electrical connections.
The RayCrane comes with all necessary installation components, including a reinforced stainless steel bracket, crane mounting kit with two attachment points, and rope suspension for fall protection. Optional accessories include crane mounting kits with one or two attachment points featuring rubber-buffer shock-absorbing devices, supply cable extensions up to 10 meters, IP44 safety plugs, Wieland RST 20i5 connectors, and kits for relocating the integrated power supply unit up to 35 meters. Lifespan is estimated at approximately 100,000 hours (L70B10C1) and 50,000 hours (L90B10C1), and certifications include CE and RoHS compliance with ENEC certification in preparation, providing a safe, long-lasting solution for industrial crane lighting needs.
This fully modular and rugged design ensures flexibility, durability, and safety in high-demand industrial environments, enabling precise lighting of crane operation areas while mitigating mechanical stress, vibration, and environmental exposure.
