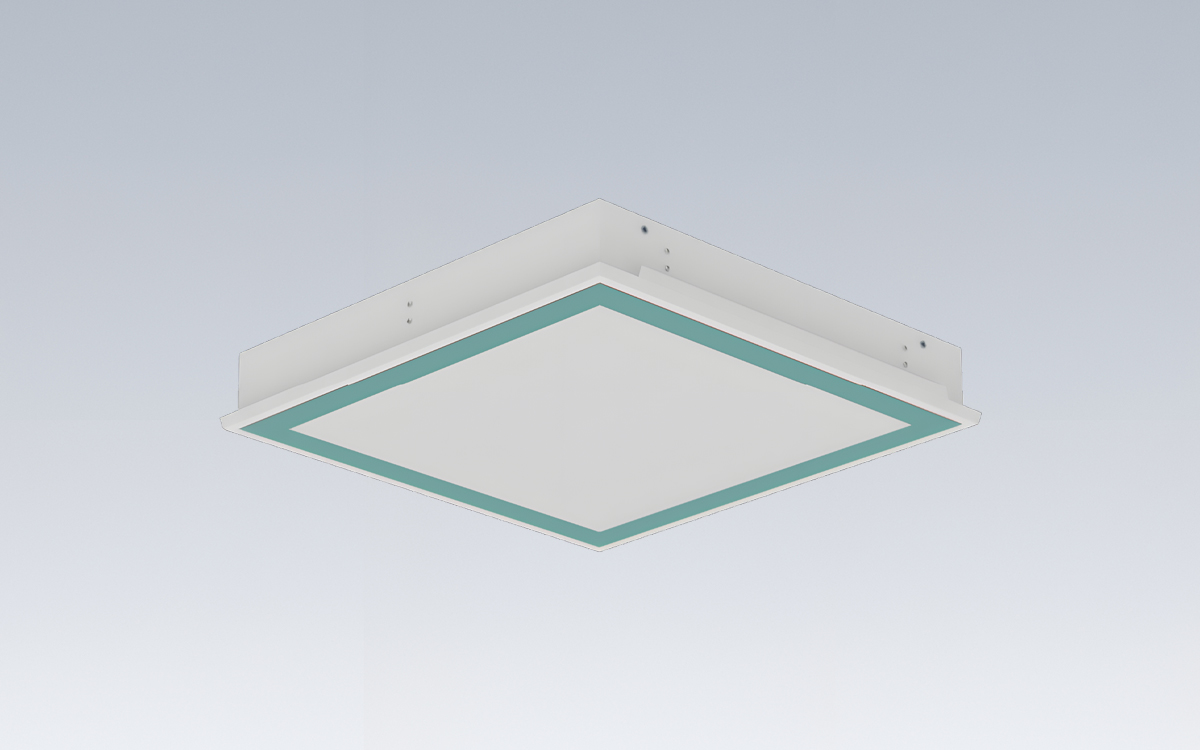

The tempLED RayClean V2 LED cleanroom luminaire delivers powerful, efficient, and hygienic lighting tailored for controlled environments such as laboratories, hospitals, medical practices, and semiconductor production facilities. With two available power levels—39 and 54 watts—it offers flexibility to meet diverse illumination needs while maintaining outstanding energy efficiency and long-term reliability.
Engineered with a completely modular design, the RayClean V2 allows key components to be easily exchanged or replaced, ensuring simple maintenance and sustainable operation. Its versatile structure supports ceiling or wall installation and accommodates various ceiling thicknesses for fast, flexible setup. The fixture is backed by a five-year full warranty and an additional ten-year spare parts guarantee, ensuring a secure, long-term investment for critical environments.
The RayClean V2 provides a luminous flux range from 4,040 to 6,350 lumens, achieving a system efficacy of up to 121 lumens per watt. It delivers bright, uniform illumination through a 120° symmetrical beam angle, with a color temperature of 4,000 K for clean, neutral white light. Upon request, monochromatic yellow light is also available for specialized applications. The fixture ensures excellent visual quality, featuring color rendering indices of Ra > 80 or Ra > 90, color consistency below 3 SDCM, and minimal flicker with a compact flicker degree (CFD) < 2%, SVM of 0.01, and Pst LM of 0.03 for flicker-free visual comfort.
Built to perform under demanding conditions, the RayClean V2 operates in ambient temperatures from –20°C to +50°C and carries an IP65 protection rating and IK08 impact resistance, guaranteeing resistance to dust, water jets, and mechanical impact. The luminaire’s steel housing is abrasion-resistant and powder-coated, making it durable and resistant to cleaning and disinfection agents—an essential feature for sterile and clinical environments. The 5 mm thick tempered safety glass cover includes a light green screen-printed frame (RAL 6027) and a microprismatic diffuser foil, ensuring even, glare-free light distribution.
Electrically, the RayClean V2 operates with a wide power supply range (198–240 V AC / 176–250 V DC), a power factor above 0.98, and low total harmonic distortion (< 12%), reflecting its high electrical efficiency. Integrated temperature monitoring, overvoltage, and overheating protection enhance reliability and operational safety. Classified under ATEX temperature class T6, the fixture maintains a maximum case temperature (Tc) of 75°C. Optional features include Constant Lumen Output (CLO) and an emergency light module, extending its adaptability for mission-critical environments.
Complying with ENEC, CE, and RoHS standards, and certified for cleanroom class ISO 3 according to EN ISO 14644-1, the RayClean V2 ensures exceptional cleanliness and compliance with stringent industry requirements. With a service life of approximately 100,000 hours (L70B10C1) and 50,000 hours (L90B10C1), it guarantees long-term, maintenance-free operation.
Overall, the tempLED RayClean V2 stands as a robust, efficient, and precision-engineered lighting solution that combines high luminous performance, hygienic design, and easy serviceability—a perfect fit for modern cleanroom environments.
