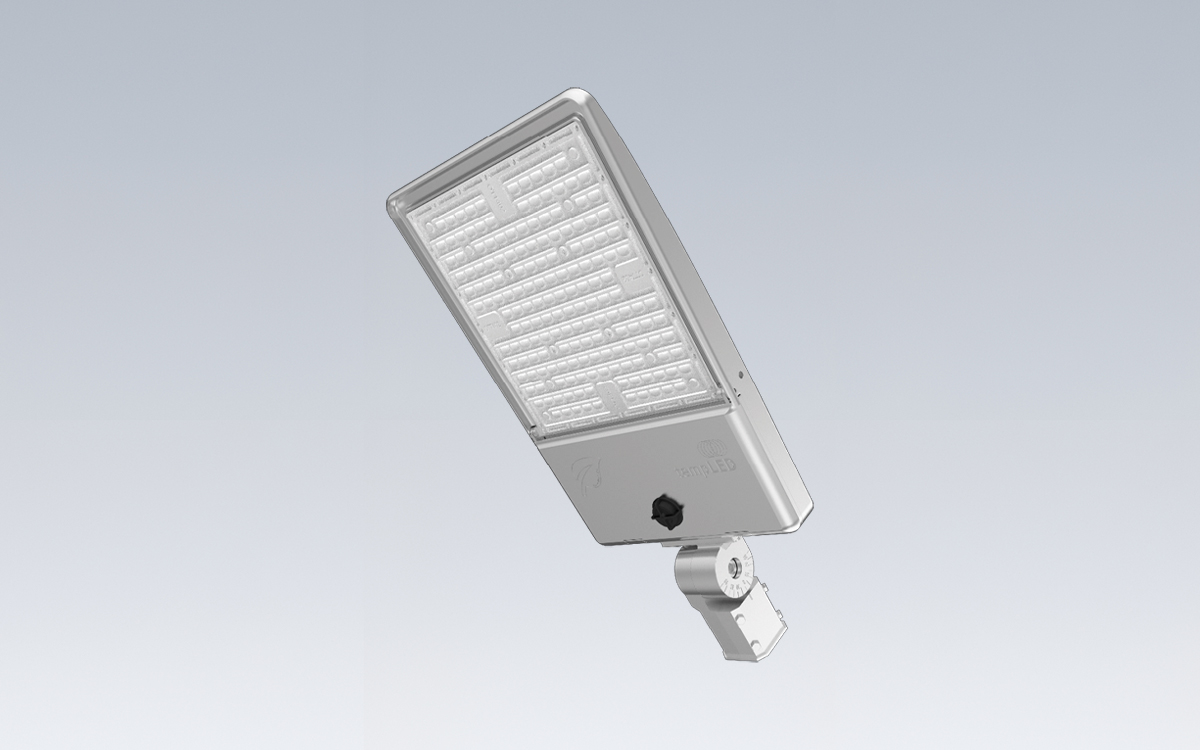

The RayTrack Pro V2 LED area light represents a versatile and high-performance solution for outdoor environments such as driveways, car parks, and loading zones. Available in nine power levels ranging from 40 to 420 watts, it ensures optimal lighting for a wide variety of site configurations. Its integrated precision optical system, equipped with an asymmetrical beam angle of 80 x 150 degrees and full cut-off technology, effectively minimizes stray light while focusing illumination exactly where it is needed. The optical system can also be customized in four distinct configurations to meet specific project or environmental requirements. This adaptability is complemented by its modular construction, DALI-2 compatibility, Zhaga-18 interface, and the ability to retrofit motion and light sensors. Optional warm white light variants at 3,000 K support the protection of nocturnal wildlife. A robust pole-top mounting system accommodates spigot diameters of 60 or 76 mm, providing installation flexibility across different infrastructure setups. Backed by a five-year full guarantee and a ten-year spare parts warranty, the fixture ensures a secure and long-term investment.
The luminaire delivers an initial luminous flux range from 6,800 to 73,500 lumens with a system efficacy of up to 190 lumens per watt. It supports multiple color temperature options including 3,000 K, 4,000 K, and 5,000 K, all maintaining a color rendering index greater than Ra 70 and a color consistency below 5 SDCM. Its optical system is optimized to minimize glare and stray light, achieving photobiological safety according to IEC/TR 62778 and a compact flicker degree of just 1 percent. Designed for visual comfort and environmental consideration, the 3,000 K version provides a warm spectrum that reduces disruption to nocturnal ecosystems.
Electrically, the RayTrack Pro V2 operates on AC voltages between 100 and 240 volts or DC voltages from 127 to 250 volts at a frequency of 50 or 60 hertz. The fixture maintains a high power factor above 0.95, with total harmonic distortion below 20 percent. Integrated protection features include overvoltage resistance up to 20 kilovolts, overheating safeguards, and continuous temperature monitoring. Classified under ATEX T5, the luminaire maintains a critical case temperature of +89 °C and is suitable for extended use under demanding conditions. Depending on configuration, its energy efficiency class falls under category C (up to 169 lm/W) or category B (from 170 lm/W and above).
The RayTrack Pro V2 supports multiple mounting options for maximum versatility. Standard installations utilize a pole-top system with an adjustable tilt range from -90° to +90°, while optional wall brackets and mounting arms extend the same adjustment range for façade or corner applications. Specialized steel and aluminum brackets are available to support various output models, ranging from compact 40-watt units to high-output 420-watt systems. These include dedicated mounting types such as the K, G, and GG brackets, as well as galvanized single-, double-, triple-, and four-sided angle brackets designed for mast installations. All mounting accessories share the same high-quality powder-coated finish in white aluminum (RAL 9006) for visual uniformity and corrosion resistance.
Control and automation capabilities are integrated through the Zhaga-18 socket, which enables dimming, daylight harvesting, and presence detection via compatible sensors. DALI-2 control can be activated ex works through a factory upgrade, providing intelligent dimming down to 10 percent and optional constant lumen output (CLO) functionality. Optional sensor accessories, such as PIR and HF motion detectors or daylight sensors, extend system flexibility for smart lighting management. These devices, programmable via Bluetooth and the manufacturer’s HubSense app, ensure precise energy optimization and operational adaptability.
Constructed for outdoor durability, the housing of the RayTrack Pro V2 is made from die-cast aluminum with a powder-coated finish in white aluminum (RAL 9006). The luminaire achieves IP66 ingress protection and IK08 impact resistance, making it suitable for harsh environmental conditions and industrial-grade applications. A pressure compensation membrane ensures internal balance and prevents moisture accumulation, while the limited surface temperature (D marking) provides safety assurance in hazardous environments. The optical enclosure uses UV- and impact-resistant polycarbonate, ensuring consistent performance and longevity. The fixture includes a 30-centimeter H05RN-F 3G1.3 supply cable with open wire ends for flexible integration, and a three-pole connection grid for reliable power continuity.
Certified for CE and RoHS compliance and prepared for ENEC certification, the RayTrack Pro V2 offers long-term dependability with a rated lifetime of approximately 100,000 hours (L70B10C1) and 50,000 hours (L90B10C1). Its included accessories, such as the dual-size pole-top adapter, provide ready-to-install convenience and compatibility for diverse project needs. Collectively, these features position the RayTrack Pro V2 as a robust, configurable, and future-ready LED area lighting solution tailored for industrial, commercial, and municipal outdoor applications.
