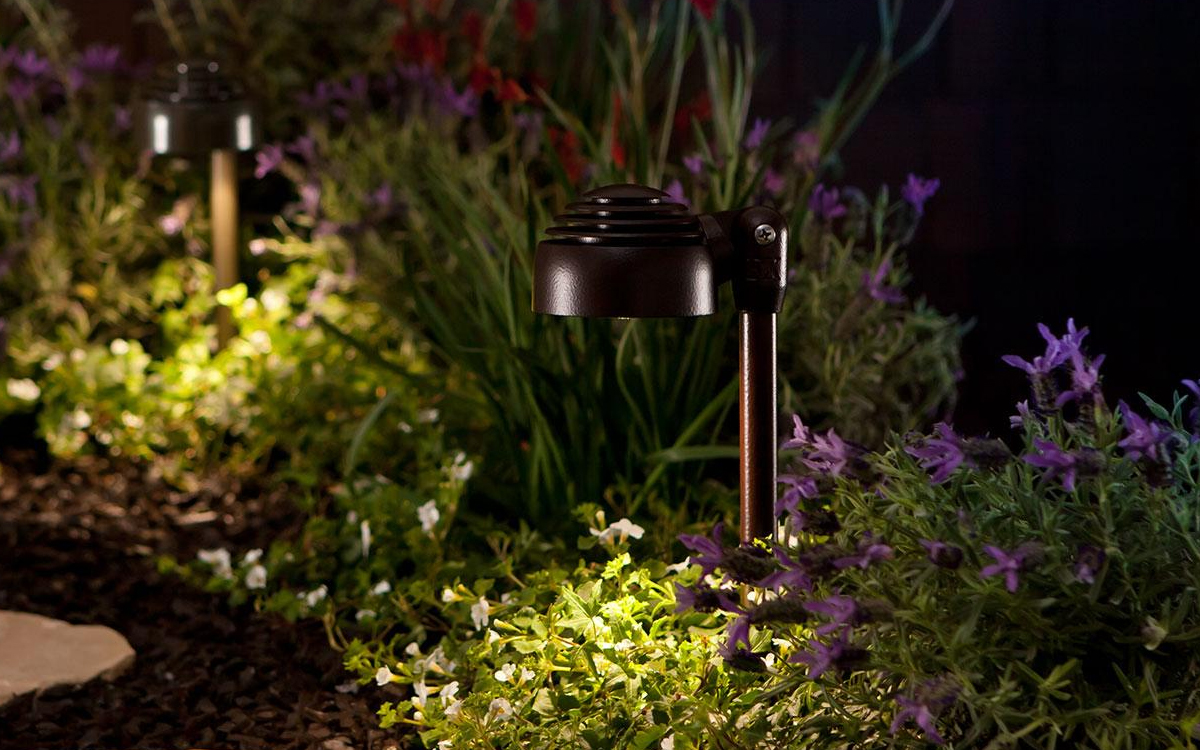

The RW Directional Path Light is a sleek and modern solution designed to enhance both residential and commercial landscapes. With its clean lines and soft, architectural illumination, the RW is ideal for gently washing walls or subtly highlighting textures in foliage and structural elements. Its thoughtful design provides a balance of aesthetics and performance, offering discreet yet effective lighting. Constructed from durable die-cast aluminum, the RW features a two-layer marine-grade anodization and TGIC powder coat finish, ensuring exceptional weather resistance and long-term durability in outdoor environments.
Engineered for performance and longevity, the RW uses integrated Cree® LEDs housed in a proprietary module with gold-plated connectors and conformal coating for superior corrosion resistance. The intelligent onboard driver includes firmware-controlled thermal regulation to maximize LED life, which is rated up to 50,000 hours at L90. The fixture accommodates multiple output levels — 3LED, 6LED, 9LED, and ZDC — with efficacy up to 64 lumens per watt and color rendering index (CRI) values of 80+. The RW provides beam angles tested to LM-79 standards and includes interchangeable polycarbonate lenses for adjusting color temperature between 2,700K, 3,900K, 4,500K, and 5,200K. A frosted tempered glass lens ensures uniform light diffusion while offering impact and thermal stress resistance.
For versatility, the RW includes ProAim™ adjustability, a die-cast zinc/aluminum knuckle with compress and lock features, and 9° incremental vertical tilt adjustments over a 220° range. The fixture is compatible with both phase-cut and PWM dimming methods and integrates seamlessly with Luxor® zoning and dimming systems. ZD and ZDC versions of the RW allow for individual fixture zoning, dimming in 1% increments, and full-color control via RGBW LEDs in up to 250 groups. The standard fixture is zoneable and designed for both upward and downward installations.
The RW comes pre-installed with a 2,700K color temperature lens and includes a 12-inch ABS slotted installation spike. It features a sealed socket with MoistureBlock™ technology to prevent moisture ingress, stainless steel hardware, and an 18 AWG SPT-1W lead wire rated for 220°F and 300V. The ambient operating temperature ranges from -18°C to 60°C (0°F to 140°F), and input voltage is 10–15 VAC/VDC (11–15V for ZDC models), requiring a remote transformer. The fixture supports a wide range of LED configurations within the same compact die-cast housing and flat aluminum faceplate for optimized aiming angles.
Committed to sustainability, the RW Directional Path Light is designed with conservation in mind. Where possible, recycled materials are used without compromising performance. These LED fixtures deliver superior light quality, energy efficiency, and product longevity. For international applications, the RW meets IEC 60598-1 and IEC 60598-2-7 standards when used with IP65 or higher-rated mounting accessories. This makes the RW an ideal choice for eco-conscious, design-driven landscape lighting projects.
