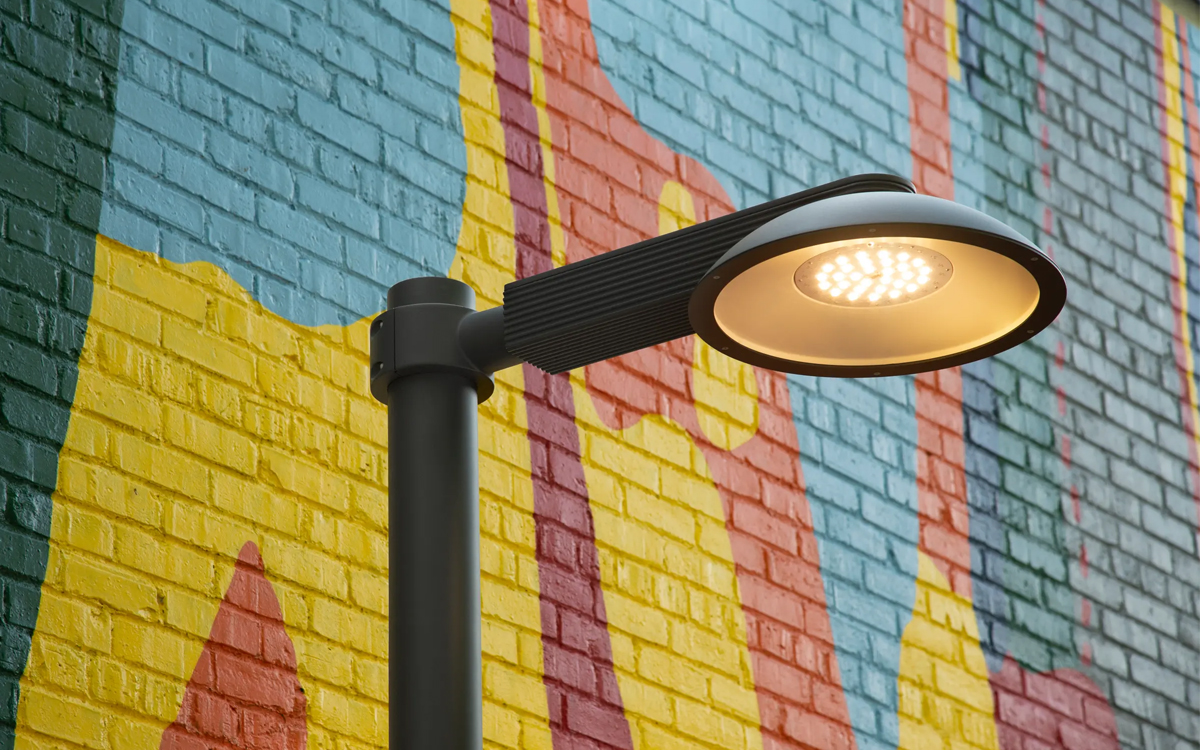

LEO Area Lights bring understated elegance and functional versatility to a wide range of outdoor environments. With clean lines and a minimalist design, LEO blends effortlessly into diverse architectural styles and site designs, making it a natural choice for both contemporary and traditional settings. Its 19-inch diameter housing strikes a visual balance that works well with varying pole heights and spacing, whether for pedestrian paths or larger vehicular areas.
Designed with performance and adaptability in mind, LEO offers configurable light distributions and output levels, allowing designers to tailor lighting strategies to the specific needs of a space. Whether prioritizing pedestrian comfort through improved visual experiences or focusing on cost-effective solutions with wider pole spacing and higher lumen packages, LEO adapts accordingly. The light engine scales from 2,700 to 8,100 lumens and is available in a range of roadway distribution types to ensure precise light placement. Single or multiple luminaires can be mounted on a single pole at varying heights and orientations, meeting the demands of both pedestrian and vehicular traffic environments.
Crafted from cast aluminum, LEO features a factory-sealed and replaceable LED cartridge housed behind a UV-stable, impact-modified acrylic lens, available in clear or diffused finishes. The robust construction is IP66 rated for weather resistance, and all hardware is magni-coated for corrosion resistance and anti-seize performance. Internal to the luminaire arm, the electronic driver operates on 120V–277V, 50/60Hz power and supports 0–10V dimming. Surge protection is built in, and optional pole-mounted accessories include an ANSI C136.41 twist-lock receptacle and a GFCI outlet with an “in-use” cover.
The advanced LED engine includes a die-cast aluminum heat sink and high-power LEDs mounted on a RoHS-compliant circuit board with secondary optics. Available in 3000K, 3500K, and 4000K color temperatures with a CRI of over 80, all configurations meet or exceed TM21 L70 standards for 60,000+ hours of performance. LEO is International Dark Sky Approved and Buy America Compliant, further enhancing its appeal for sustainable and locally sourced projects.
Available in single, dual, and staggered configurations with pole heights of 12, 16, 20, and 25 feet, LEO also offers a variety of optics, finishes, and optional occupancy sensors. The fixture can be specified in a wide color palette and finished with Landscape Forms’ proprietary Pangard II® polyester powdercoat, which is HAPS, VOC, and lead-free. With its blend of simplicity, adaptability, and high-performance LED technology, LEO empowers landscape architects, lighting designers, and electrical engineers to focus on creating environments that balance aesthetics, sustainability, and cost-effective performance.
