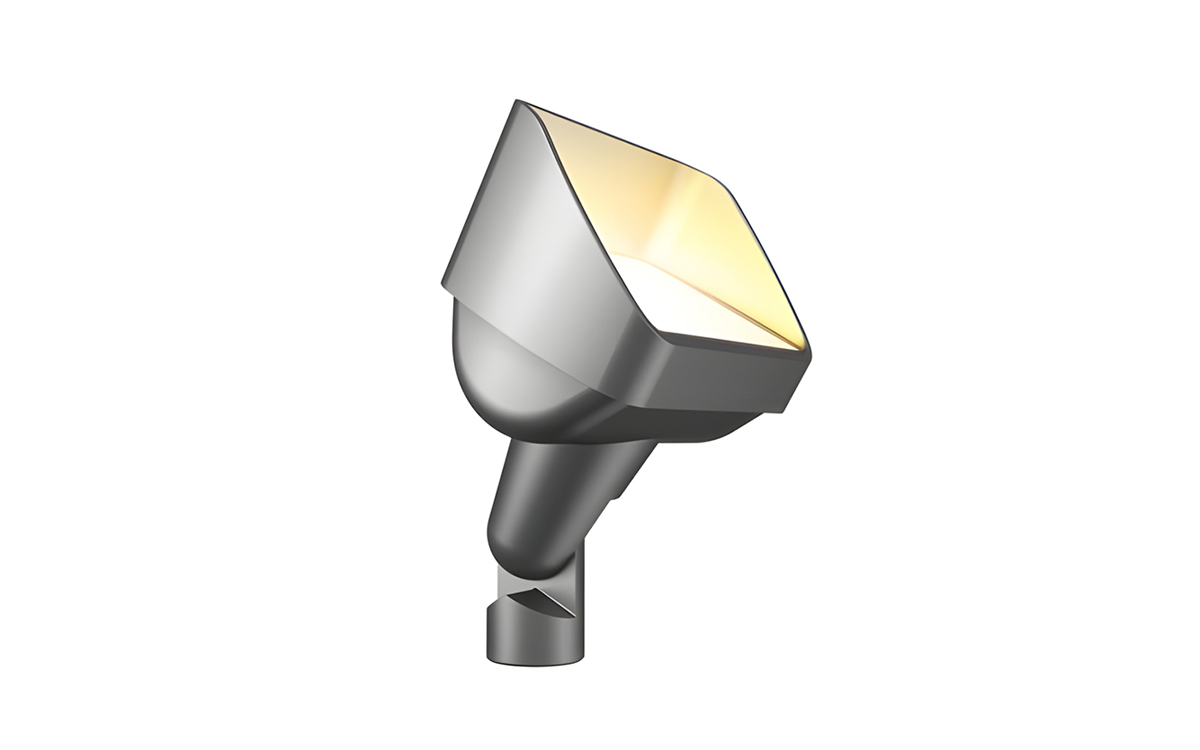

The dFresco-11 is a robust, high-performance LED flood light designed for architectural wall washing applications. Available in configurations of 3, 6, or 9 LEDs, the fixture is constructed from durable aluminum or solid die-cast C360 brass and offers an RGBW version compatible with ZDClink® systems. This version enables advanced control capabilities such as zoning, dimming, and color changing using Luxor Technology™, allowing users to assign luminaires to up to 250 zones, dim them in 1% increments, and select from over 30,000 colors.
The fixture features an integral driver and supports both white and RGBW LED options—white utilizing Lumileds® and RGBW utilizing Cree® LEDs. Power consumption ranges from 4.4 W to 12.2 W, depending on the model, and the system requires a remote transformer (specified separately). The input voltage ranges from 10–15 Vac/dc for white versions and 11–15 Vac for RGBW, both at 50/60 Hz. The luminaire is designed exclusively for upward installation to ensure optimal beam projection and performance, with a wide beam angle of 90° horizontal by 80° vertical.
Thermal management is handled by onboard CoolDrive™ technology, which monitors and regulates temperature for reliable operation and longevity. The white LED version boasts an impressive lifetime of over 72,000 hours (L70, B10, TM21 reported), while the RGBW version exceeds 55,000 hours. Dimming is supported via Luxor® control systems or trailing-edge (reverse phase-cut) dimmers for compatibility with a range of control environments.
Installation is simple and secure with the included ProAim™ Adjustable Ratcheting Stake (PARS), a 10-inch ABS stake equipped with tamper-resistant features and offering vertical alignment adjustability in 9° increments across a 220° range. The fixture also incorporates MicroAntileach™ Technology to prevent moisture ingress and wicking, maintaining long-term performance in harsh conditions.
The dFresco-11 is built to withstand challenging outdoor environments. Brass and stainless steel hardware, a tempered glass lens with shock and thermal stress resistance, and a 30° angled glare shield ensure both durability and visual comfort. Available in a variety of finishes, including natural metal, antique bronze (brushed or tumbled), or anodized and TGIC powder-coated aluminum, the fixture undergoes rigorous ASTM testing and is sealed with a protective TGIC clear coat.
Rated IP65 and suitable for dry, damp, and wet locations, the dFresco-11 meets multiple international standards, including UL 1838, CSA C22.2 No. 250.7, IEC 60598, FCC Part 15, and ISED Canada ICES-005. With its premium materials, versatile lighting options, and advanced control capabilities, the dFresco-11 offers a sophisticated solution for architectural, landscape, and outdoor lighting applications.
