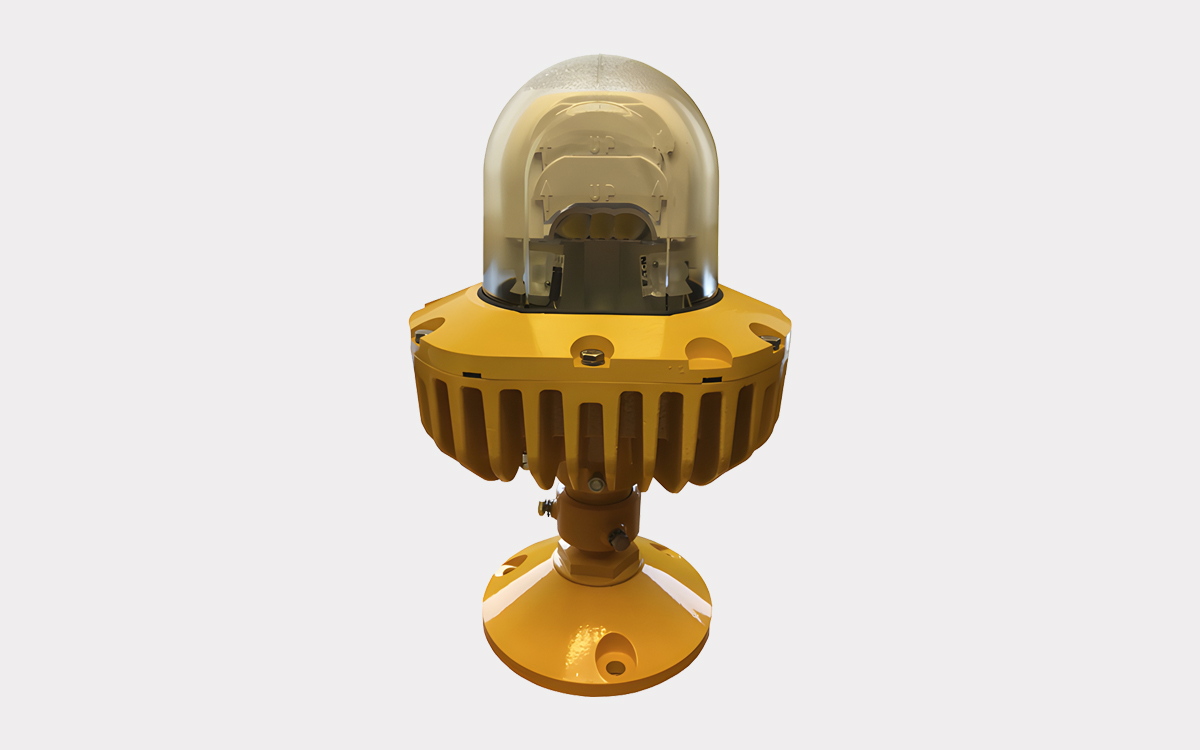

The PRO APF L-862,E HIRL is a high-intensity LED runway edge light designed for use as a runway edge, threshold/end light, and displaced threshold light. This fixture is engineered to provide maintenance-free performance while delivering long life and a high lumen output, making it suitable for demanding airfield applications worldwide. Its robust design and advanced LED technology ensure reliable operation in a variety of challenging environmental conditions.
Certified for global use, the PRO APF HIRL comes in multiple models tailored to meet stringent FAA, ICAO, and TP-312 standards. These certifications include FAA AC 150/5345-46D current edition and FAA Engineering Brief 67, ensuring that the light complies with the latest regulatory requirements for airfield lighting systems.
Among its key design features, the PRO APF L-862,E HIRL incorporates WaveTrac™ technology, which reduces power consumption by up to 60% compared to traditional incandescent lights. The fixture offers a full 360-degree viewing angle with an omnidirectional halo, enhancing visibility for pilots during night and low-visibility operations. Its innovative design emphasizes ease of installation and maintenance, with a removable flange ring that secures the glass dome to the housing, allowing quick and convenient access to the power supply and LED optical assembly.
The fixture includes a three-screw leveling system with hex head bolts to facilitate precise alignment during installation. It is available in installed heights of 14 inches (350 mm), 24 inches (607 mm), and 30 inches (759 mm), providing flexibility to meet diverse airfield design requirements. Additionally, it is compatible with both 1.5-inch and 2-inch baseplate hubs, allowing for versatile mounting options.
Constructed with a highly durable cast aluminum housing, the PRO APF L-862,E HIRL is built to withstand harsh environmental conditions. The LED technology employed offers a rated projected life greater than L70 at 50,000 hours when operated at 6.6 amps, greatly reducing maintenance needs. To enhance visual comfort and safety, the fixture utilizes high-frequency 400 Hz PWM dimming technology that eliminates flicker perception.
For added protection, the fixture includes surge protection rated at 10kV/5kA, safeguarding its sensitive electronics against voltage spikes. An optional energy-efficient arctic kit applies a filament directly to the glass dome to minimize energy losses in cold climates, improving reliability in extreme weather. The frangible coupling incorporates an integral fluid barrier to prevent ambient moisture and precipitation from entering the base, thus protecting the internal components.
All LED and electronic components are housed within an IP67-rated assembly, ensuring dust-tight and waterproof performance to maintain reliable operation under the most demanding environmental conditions. Overall, the PRO APF L-862,E HIRL combines energy efficiency, durability, and advanced technology to deliver a superior high-intensity runway edge lighting solution for airports worldwide.
