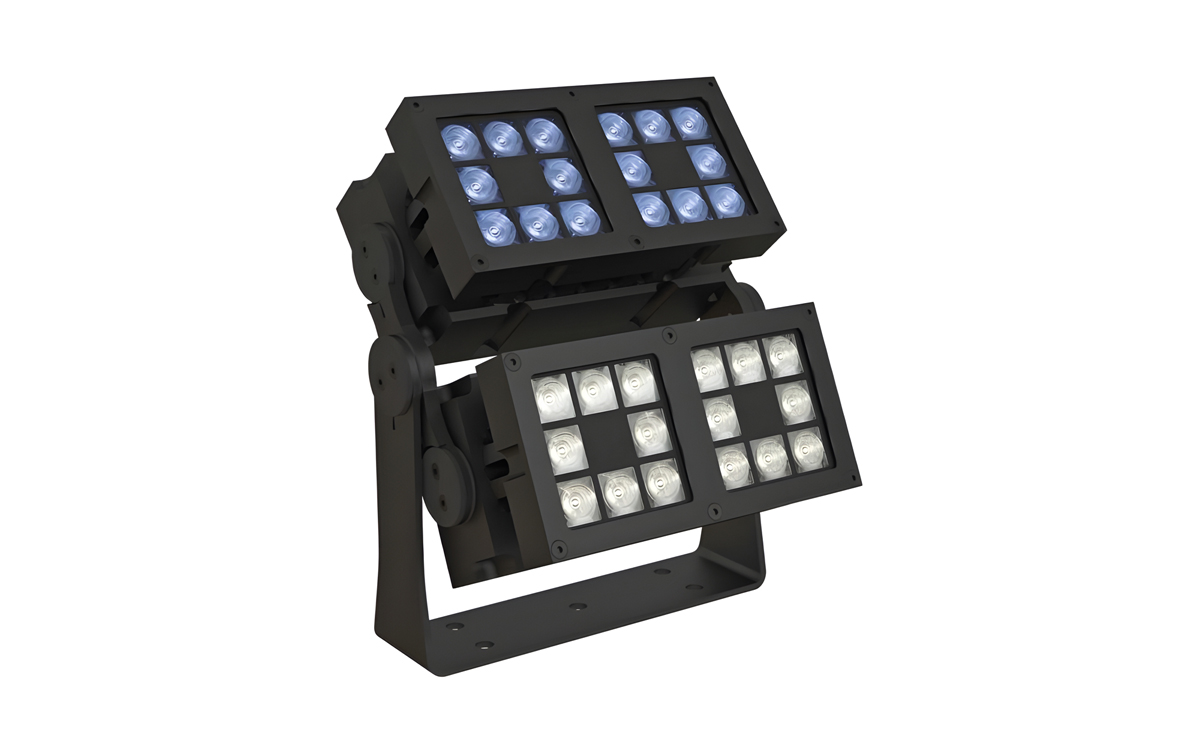

The Revo XXL DMX offers lighting designers unprecedented creative possibilities. This versatile fixture allows for two different temperatures of white light or even four distinct types of light within its sections, each individually controllable via DMX. Such flexibility enables designers to craft truly unique lighting effects that stand out. For instance, one can choose to have two sections emit warm white light for a cozy ambiance, while the other two sections shine in blue, creating dramatic and impressive effects as desired.
This 80-watt, IP67-rated outdoor surface mount fixture is built with a robust anodized aluminum housing that is CNC cut for durability and precision. The Revo XXL DMX uniquely combines two fixtures into one design, giving designers the ability to select different light colors and beam angles per section, vastly expanding design options. The included bracket construction facilitates perfect adjustment and alignment of the light beams, ensuring optimal illumination for any installation.
Designed for longevity and reliability, the fixture features a ventilation gland with a Gore-Tex membrane to minimize condensation risk inside the housing, crucial for outdoor environments. Its modular nature offers over 800 possible configurations, easily customizable online within seconds. Interchangeable optics allow fast and simple lens changes, supporting beam angles from narrow 8° up to wide 80°, including elliptical 12° x 46° options.
Installation is straightforward, as all electronics are fully integrated within the fixture, eliminating the need for external drivers. Connections are made simple with a 5-core DMX combi cable and Wago connectors. The Revo XXL supports multiple dimming protocols, including Casambi, DMX512, and Wireless DMX, providing versatile control options for complex lighting setups. With a high CRI above 80 and LED color temperatures ranging from 2200K to 6500K plus several vibrant colors, this fixture offers rich, high-quality light output.
Additional features include dynamic power and temperature control technologies that enhance performance and lifespan, which is rated at an impressive 50,000 hours with an L90B10 value. The fixture weighs 5750 grams and operates reliably in ambient temperatures from -10ºC to 40ºC. Certified CE and protected with an IP67 rating, it comes with a three-year warranty and optional accessories such as snoots to further refine lighting effects. The Revo XXL DMX stands out as a powerful, flexible solution for professional outdoor lighting projects requiring high performance and creative freedom.
