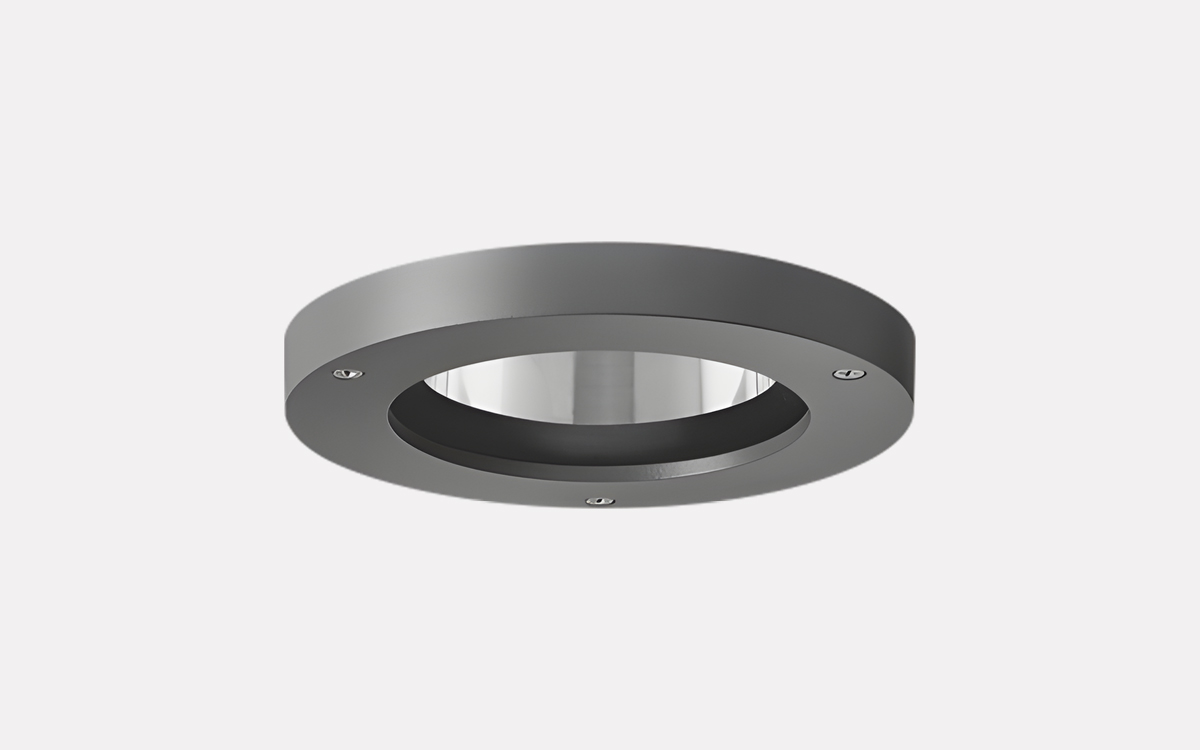

The DOC220-FT LED is a compact, high-quality recessed luminaire designed for performance, durability, and architectural integration in demanding environments. Built with a marine-grade, die-cast aluminium alloy housing and sealed with a silicone rubber gasket, it achieves IP66 ingress protection and IK07 impact resistance. The fixture is also protected against corrosion with 5CE-grade coating and PCS polymer-coated stainless steel hardware, making it suitable for harsh or moisture-prone environments.
The DOC220-FT features a hinged safety glass lens and a secure frame with safety catch for easy maintenance. Inside, it incorporates a thermally separated compartment housing the integrated ECG control gear, ensuring long-term reliability and thermal efficiency. A factory-installed LED circuit board works in tandem with a darklight anodised aluminium reflector and a PMMA diffusor-lens, delivering symmetrical, wide beam light distribution with excellent glare control and soft, even illumination.
This 24W luminaire operates on a 220–240V / 50–60 Hz power supply and offers built-in surge protection rated at 6/6 kV. It is available in standard or optional DALI dimmable versions to suit a variety of control systems. The rated lifetime is over 50,000 hours at L70B50 (Ta = 25°C), ensuring low maintenance and long-term energy-efficient operation. The light source is rated in energy efficiency class D.
With a diameter of 154 mm, the DOC220-FT LED is available in a range of architectural RAL colours, including Signal Black (RAL9004), White Aluminium (RAL9006), Grey Aluminium (RAL9007), Anthracite Grey (RAL7016), and Traffic White (RAL9016). Color temperature options include 2700 K, 3000 K, and 4000 K to match the desired ambience.
For installation in cast concrete ceilings, a flush or proud pre-installation blockout is recommended and available upon request. The DOC220-FT LED is a versatile and rugged lighting solution tailored for precision lighting applications in challenging environments.
