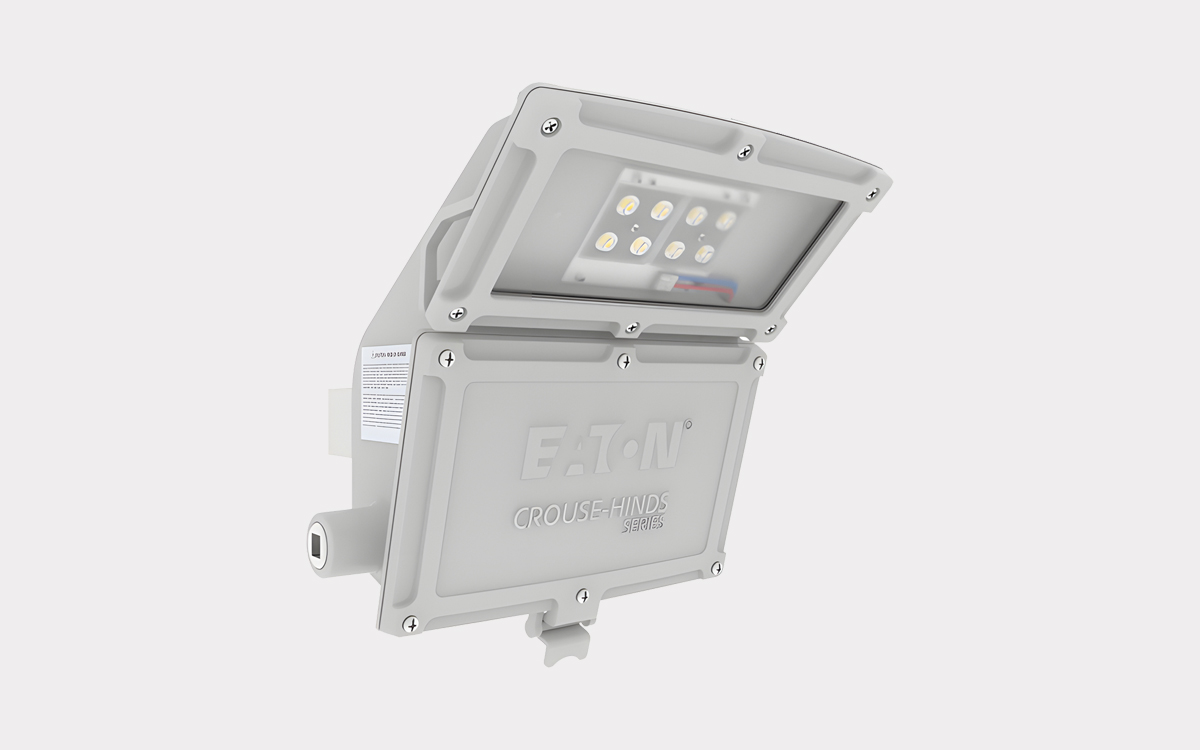

Eaton's Crouse-Hinds series Champ Pro PFMA LED floodlights are engineered to deliver full-spectrum, crisp white illumination designed specifically for heavy industrial and harsh environments. Offering eleven different models with lumen outputs ranging from 3,000 to 50,000 lumens, these floodlights provide a versatile and reliable lighting solution suitable for a broad range of industrial floodlighting applications. Their robust design ensures long life and excellent performance even in challenging conditions.
The Champ Pro PFMA LED floodlights feature a durable Type 4X housing constructed from die cast aluminum with a corrosion-resistant epoxy powder coating. This rugged construction makes them ideal for outdoor wall and stanchion mounting in locations exposed to corrosive elements, moisture, dust, extreme heat, and cold temperatures. These floodlights operate reliably across a wide ambient temperature range from -40°C to 65°C, providing up to 60,000 hours of rated life at 55°C, eliminating the need for frequent lamp replacements.
Energy efficiency is a key advantage of the PFMA series, offering up to 72% energy savings compared to traditional HID floodlights. The fixtures are designed with die cast aluminum heat sinks that maximize surface area and enhance airflow, optimizing the lifespan of both the LED array and the driver. The solid-state luminaires are shock- and vibration-resistant, containing no filaments or fragile glass components, significantly reducing the risk of premature failure.
Installation is straightforward thanks to a full-frame yoke design compatible with existing Crouse-Hinds SFA6 slipfitter and SWB6 wall mount brackets, which simplifies retrofit or new installations. The floodlights offer a choice of color temperatures, including cool white (5000K, 70 CRI) as standard, with optional warm white (3000K, 80 CRI) and neutral white (4000K, 80 CRI) options. They provide instant illumination without warm-up or restrike delays and include dimmable drivers with 0-10V control for adaptable lighting needs. These fixtures contain no mercury or other hazardous substances, enhancing environmental safety.
The lighting optics of the Champ Pro PFMA series are customizable, with NEMA 7x6 or 4x4 optical patterns available to deliver optimal light distribution and reduce dark spots. This customization can decrease the number of fixtures required, lowering installation and maintenance costs. Standard lenses are made from heat- and impact-resistant glass, with optional diffused glass and clear polycarbonate lenses also available. The floodlight housings are designed to withstand harsh conditions with corrosion resistance, impact resistance, and vibration testing up to 3G on three axes.
Performance in extreme environments is a hallmark of the Champ Pro PFMA line. These floodlights operate effectively in temperatures from -40°C up to 65°C and carry Type 4X and IP66/IP67 ratings for protection against water, dust, and corrosive elements. Additional features include 6kV surge protection to safeguard against electrical spikes and thick, rugged heat sinks that provide excellent thermal management. The heat fins promote airflow and dust shedding to ensure consistent cooling of both LED engines and drivers, extending product life and reliability.
The Champ Pro PFMA floodlights are suitable for a wide range of industrial applications, including manufacturing plants, chemical and food processing facilities, mining sites, loading docks, tunnels, and general outdoor areas requiring reliable and continuous lighting under extreme ambient conditions. With a focus on durability, efficiency, and easy installation, these floodlights offer a five-year warranty, reinforcing their quality and reliability for demanding environments.
Certifications and compliance for the Champ Pro PFMA series include NEC/CEC Type 4X and IP66 ratings, UL1598 and UL1598A standards, as well as IEC compliance with IEC 60598-1 and IEC 60598-2-1 standards. The floodlights are also ABS approved and CE marked for international usage, ensuring they meet rigorous safety and performance criteria worldwide. Overall, Eaton’s Champ Pro PFMA LED floodlights deliver optimized lighting quality, energy savings, and rugged durability essential for industrial floodlighting needs in harsh and corrosive environments.
