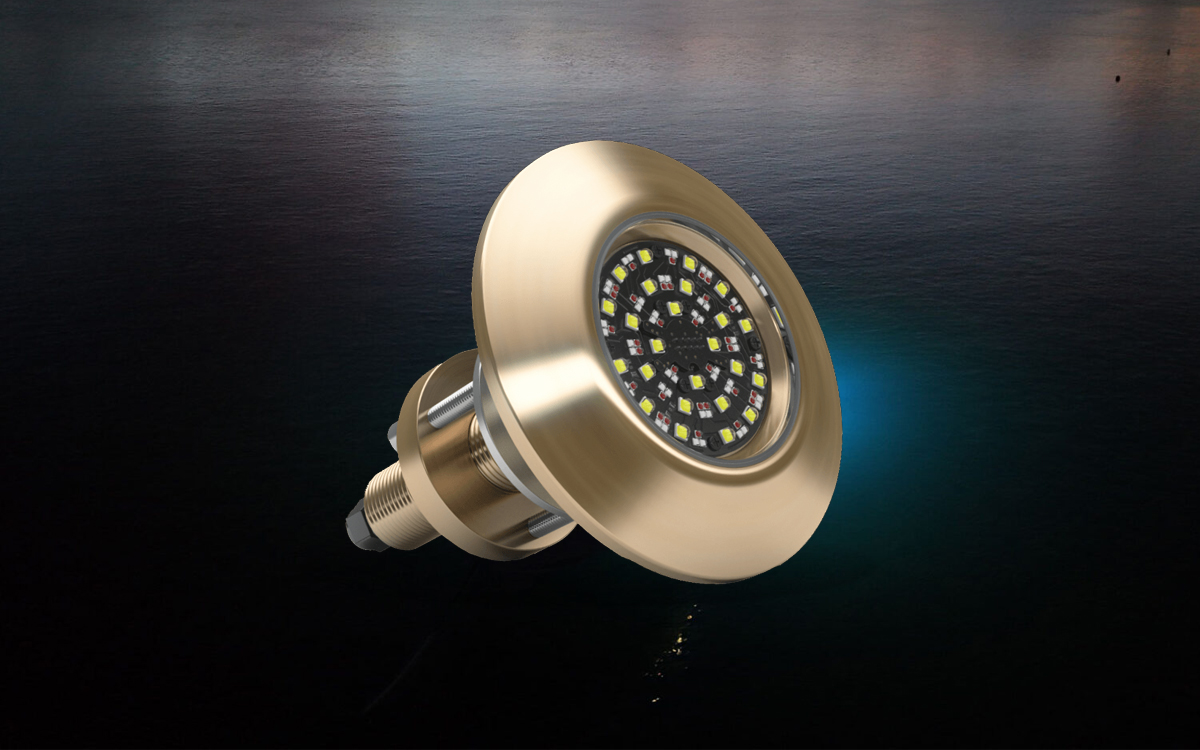

The Lumishore THX804 underwater light offers fully controllable color change, delivering the greatest range of colors along with a powerful 12,000 verified fixture lumens output. Its ultra-wide 110° beam angle creates the ultimate halo effect around any vessel, providing vibrant and immersive underwater illumination. Designed with a flush-fit, extremely low-profile aesthetic, the THX804 features a standard 1-inch fitting and is equipped with an external multi-channel driver, ensuring both sleek installation and reliable performance.
This versatile lighting solution is suitable for transom, side, and bottom mounting, allowing flexible placement on a wide variety of vessels. The THX804 supports full EOS color change (RGBW), utilizing a combination of high-power LEDs including 24 white LEDs at 10W each, 24 green and blue LEDs at 3W each, and 32 red LEDs at 3W each, all arranged in a high-performance HICOB array. This setup provides vivid, dynamic color options with a typical LED lifespan exceeding 50,000 hours, ensuring long-term durability.
The housing is crafted from marine-grade aluminum bronze to withstand harsh marine environments, while the unit operates on 12/24 V DC power, with an AC option available. Maximum current draw is 8.8A or 4.4A depending on voltage. Control options include seamless integration with your vessel’s multifunction display (MFD) or the optional Lumishore Display, giving you direct access to color, modes, and special effects.
Additional advanced features include synchronized lighting across multiple units, adjustable color cycles and sweeps with speed control, customizable favorites, fixed and random strobe effects, programmable scenes, and Wi-Fi control via an app. The THX804 also supports sound-to-light synchronization, brightness adjustment, and automatic light discovery and setup, offering a sophisticated, user-friendly underwater lighting experience tailored to professional marine applications.
