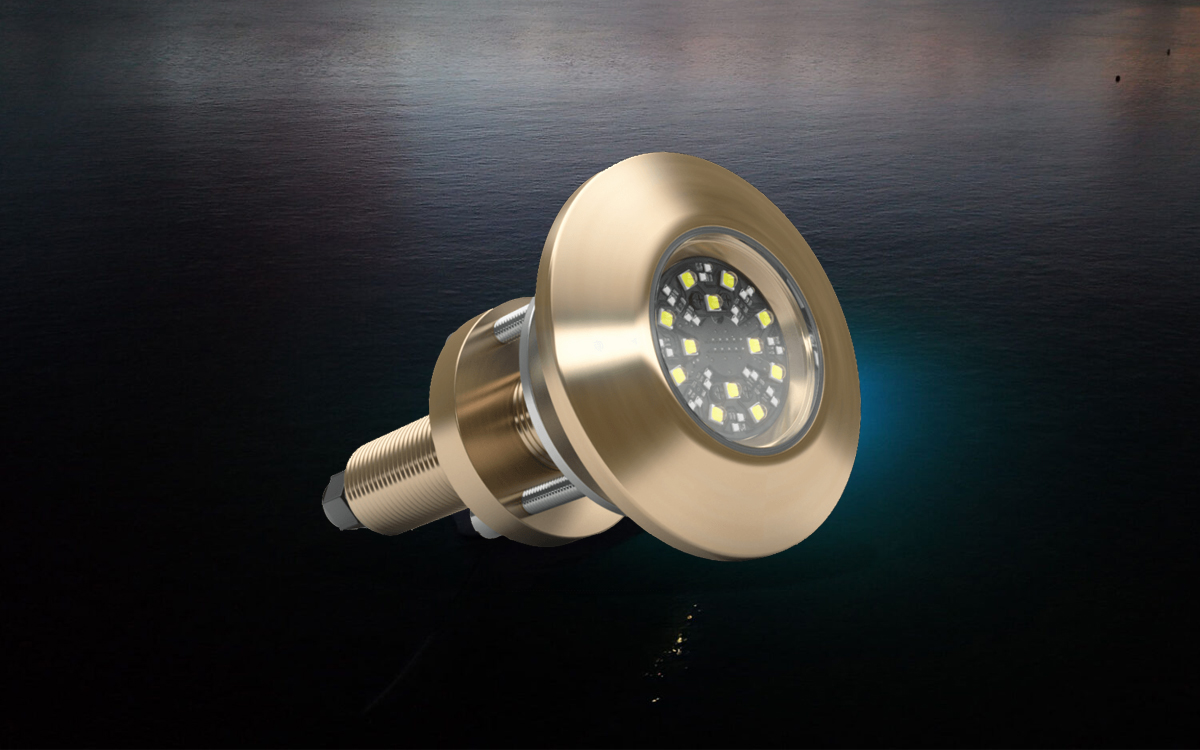

Lumishore's THX404 underwater LED light delivers a powerful 8,150 verified fixture lumens combined with an ultra-wide 110° beam angle, creating a striking halo effect that enhances any marine setting. This dual-color model offers independent control over blue and white LEDs, allowing users to effortlessly switch between colors, fade smoothly, adjust brightness levels, and apply strobe effects at two different speeds. The lighting system is designed for versatile mounting options, including transom, side, and bottom installations, featuring a flush-fit design with an extremely low profile.
The THX404 is controlled through the SUPRA I-Connect Hub & Switch or directly from compatible multifunction displays (MFDs) and the optional Lumishore Display when used with the SUPRA Bridge. This model incorporates a standard 1-inch fitting and utilizes an external multi-channel driver for efficient power management. Constructed from marine-grade aluminum bronze, the housing ensures durability and resistance in demanding aquatic environments. It operates on a 12 or 24 V DC supply, with an AC power option available, drawing a maximum current of 6.4 amps at 12 V or 3.2 amps at 24 V.
The LED configuration features twelve 10-watt white LEDs and twenty-four 3-watt blue LEDs arranged in a high-intensity CoB (Chip on Board) array, providing both bright illumination and long operational life exceeding 50,000 hours. Users benefit from advanced control options including synchronized lighting, brightness adjustment, independent white and blue color management, strobe and synchronized strobe functions, as well as fade modes with synchronization capabilities, enabling a highly customizable and dynamic underwater lighting experience.
