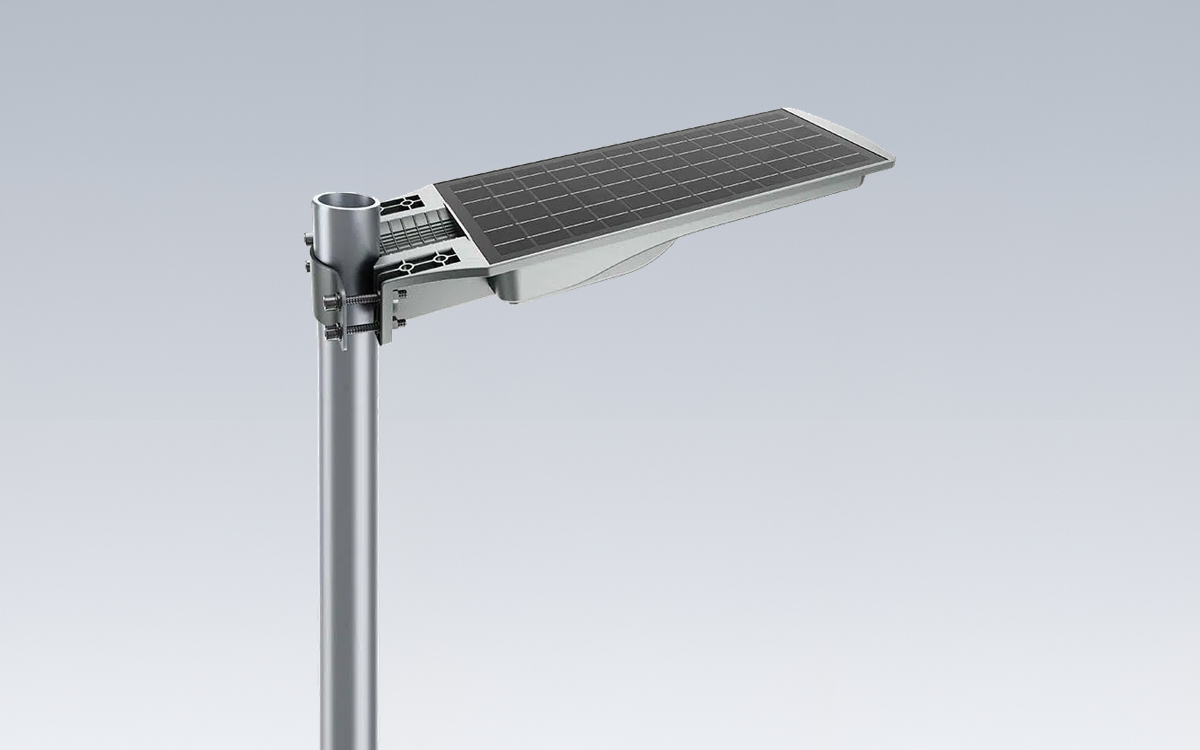

The PV4 integrated LED solar street light represents a cost-effective and versatile solution for outdoor lighting, combining advanced solar technology with a sleek, all-in-one design. It incorporates a high-efficiency monocrystalline photovoltaic solar panel, providing enhanced energy conversion to maximize performance. With luminous efficacy reaching 200 lumens per watt, this integrated solar street light delivers bright, reliable illumination while maintaining a compact, slim profile. The design supports multiple installation modes, including vertical and horizontal pole mounting as well as wall installation, making it adaptable to a wide range of urban, suburban, and residential environments.
The PV4 series comes in four power options—10W, 20W, 30W, and 50W—allowing for flexible selection based on project requirements. Its all-in-one construction houses the solar panel, lithium battery, LED modules, and intelligent control system in a single unit, streamlining installation and maintenance. A high-efficiency MPPT (Maximum Power Point Tracking) controller ensures optimal solar charging, achieving up to 92% charging efficiency, while the intelligent battery management system extends the service life of the LiFePO4 battery. The integrated microwave induction system enables a smart power-saving mode that automatically adjusts output based on ambient conditions and movement detection. Comprehensive protection functions, including undervoltage and overcharge safeguards, provide reliable long-term operation. For convenience, the PV4 also features infrared wireless remote control, allowing users to easily adjust working modes and lighting schedules.
The system operates on a DC 12V input and accommodates battery capacities ranging from 64Wh to 268Wh, paired with monocrystalline solar panels rated from 12W to 55W. It supports a color temperature range from 3000K to 5700K and offers standard CRI values of Ra>70, with options exceeding Ra>80, ensuring natural color rendering. Designed for durability, the PV4 solar street light carries an IP65 rating for water and dust protection, an IK08 impact rating, and can operate in temperatures from -15°C to +70°C. Its Type I beam angle provides focused roadway and pedestrian lighting, while installation versatility includes post top, side-entry, or wall-mounted configurations.
Certified to CE, IEC, ROHS, IP66, IK09, LM80, TM-21, and IEC62471 standards, the PV4 integrated solar street light combines reliability, safety, and long-term performance. Control options include PIR motion sensors, timer dimming, and daylight sensors, enabling fully automated operation and energy optimization. With a two-year warranty, this all-in-one solar street light is an ideal solution for a wide variety of outdoor applications, delivering bright, efficient, and sustainable lighting for streets, pathways, parks, and residential areas.
