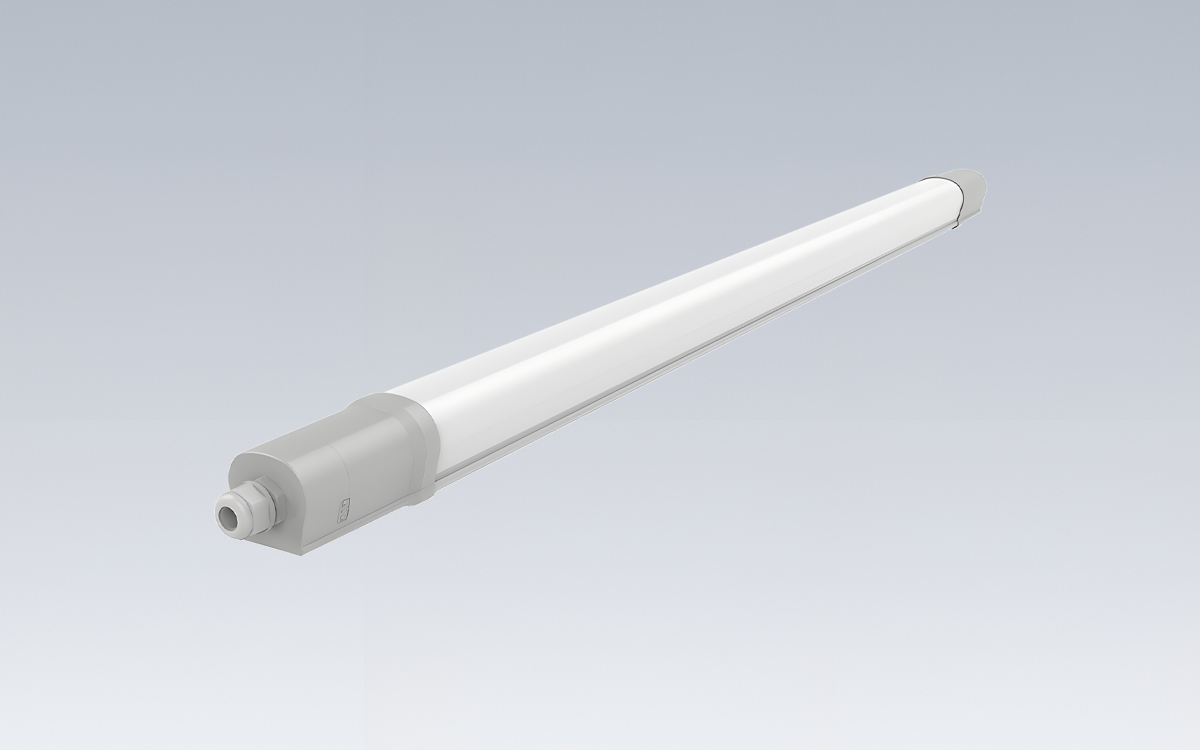

The tempLED RayProof Lite LED tri-proof light is a versatile and durable luminaire, ideally suited for industrial, commercial, and utility spaces exposed to particularly damp, dusty, and steamy ambient conditions. With a system efficiency of up to 160 lumens per watt, it delivers consistent, reliable light across various applications. Each luminaire offers two selectable power levels—22/30 watts and 28/40 watts—and comes in two construction lengths, 1,200 mm and 1,500 mm, making it adaptable to a wide range of installation requirements. The impact-resistant polycarbonate housing, rated IK08, includes an integrated diffuser that produces a broad symmetrical beam angle of 150 degrees, ensuring even light distribution throughout the space. The modular design allows for easy replacement of main components, while an intelligent opening mechanism simplifies wiring and electrical connections. The tri-proof light supports 3-pole through-wiring, providing flexibility for complex installations, and is backed by a five-year full warranty with a ten-year spare parts guarantee for long-term reliability and investment security.
The luminaire’s construction emphasizes durability and adaptability. The housing is weatherproof, dustproof, and impact-resistant, crafted from robust polycarbonate materials. The diffuser is similarly impact-resistant and optimally designed for even light spread. The heat sink is efficient and weight-optimized, supporting effective thermal management to maintain performance in demanding environments. The rotatable opening mechanism allows quick and safe electrical connections, while a multifunctional slot is available for optional PIR or microwave motion sensors. The modular design facilitates maintenance and component replacement, ensuring minimal downtime in operational settings.
Lighting performance is consistent and precise. The RayProof Lite produces an initial luminous flux ranging from 4,800 to 6,400 lumens with a tolerance of ±10 percent, maintaining a system efficiency of up to 160 lumens per watt. The color temperature is nominally 4,000 kelvins, offering a natural and neutral light, with a high color rendering index of Ra > 80 and a color consistency of less than 3 SDCM. The luminaire provides a wide symmetrical beam angle of 150 degrees, combined with photobiological safety classification IEC/TR 62778: 0. Compact flicker and stroboscopic effects are minimal, with CFD at 1 percent, SVM at 0.023, and short-time flicker (Pst LM) at 0.02, ensuring visual comfort and safety in work environments.
Electrotechnical specifications include a power supply range of 220 to 240 volts AC at 50/60 hertz. The system performance varies between 22/30 watts and 28/40 watts, with a tolerance of ±10 percent. The luminaire maintains a power factor above 0.90 and includes overvoltage and overheating protection, as well as temperature monitoring. Total harmonic distortion is below 20 percent, and the temperature classification (ATEX) is T6, with a Tc temperature rating of +45 degrees Celsius.
The RayProof Lite offers versatile mounting options, including standard wall and ceiling mounting, with pendant mounting available as an option. Control capabilities are enhanced with optional occupancy control via motion sensor systems. The luminaire operates within ambient temperatures ranging from –20 to +40 degrees Celsius, providing robust IP65 ingress protection and maintaining electrical safety with class I certification. The housing and diffuser are made from impact- and UV-resistant polycarbonate, while the heat sink is aluminum. The luminaire housing is finished in light grey (RAL 7035), and it includes 3-pole through-wiring via terminal blocks with dual cable glands for supply connection. Standard mounting clips are made from natural stainless steel for durability and corrosion resistance.
Certifications and conformity include ENEC (in preparation), CE, RoHS, and compliance with DIN 10500 (HACCP/IFS). The expected lifespan is approximately 100,000 hours at L70B10C1 and 50,000 hours at L90B10C1. The product is backed by a five-year full warranty and a ten-year spare parts guarantee. Each delivery includes the luminaire and two combined wall and ceiling mounting clips, providing all necessary hardware for a straightforward installation. This combination of durability, modularity, and intelligent design makes the RayProof Lite LED tri-proof light an optimal solution for industrial, commercial, and utility environments where reliability, performance, and long-term investment security are essential.
