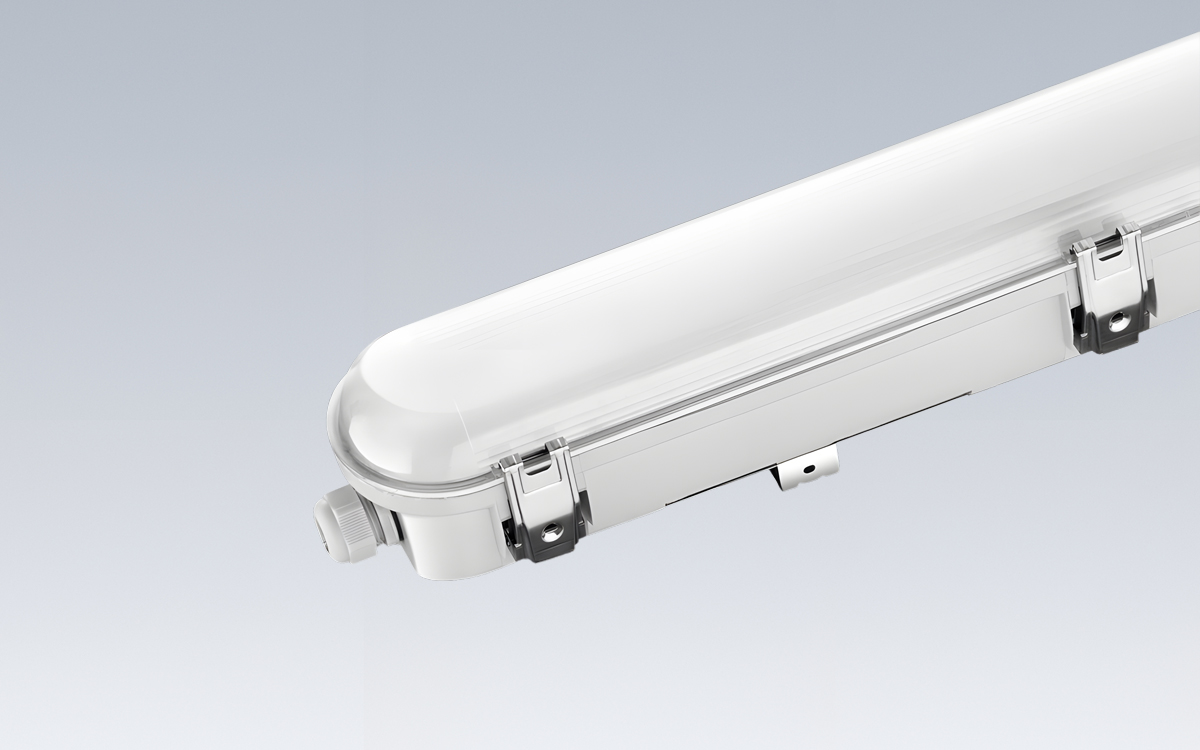

The tempLED RayProof V3 is an ENEC-certified multipurpose LED tri-proof luminaire developed for industrial and logistics environments that demand resilience against moisture, dust, and steam. Its robust and adaptable design makes it suitable for production halls, warehouses, workshops, and food-processing facilities where reliability and safety are essential. Available in four power levels ranging from 20 to 80 watts and in four lengths from 655 to 1,860 millimeters, it provides a flexible lighting solution that meets the needs of both compact and large-scale installations. The impact-resistant, vandal-proof polycarbonate housing includes an integrated diffuser that ensures uniform light distribution, while the luminaire’s modular structure supports future adaptability and easy maintenance. This includes retrofitting options for radio-based control systems, emergency power modules, and five-pole through-wiring for efficient electrical connection across multiple fixtures. Backed by a full five-year warranty and a ten-year spare parts guarantee, the RayProof V3 represents a secure, long-term investment for demanding industrial settings.
Built for endurance and reliability, the luminaire features a fully sealed housing that achieves an IP66 protection rating, safeguarding it from dust and water ingress. The construction includes an IK08 impact resistance level, ensuring durability even in rough environments, while the polycarbonate body and impact-resistant diffuser provide additional protection against mechanical stress and vandalism. The diffuser incorporates an integrated light-directing prism that refines beam control, creating an evenly lit environment with a symmetrical 120° light distribution. The unit maintains a color temperature of 4,000 K or 5,000 K with a color rendering index (CRI) above 80, guaranteeing natural and accurate color appearance in the workspace. With an initial luminous flux range of 3,400 to 14,400 lumens and a system efficiency reaching up to 180 lumens per watt, the RayProof V3 ensures high visual performance and consistency, maintaining color stability within less than 5 SDCM.
The electrical system of the RayProof V3 supports both AC (220–240 V) and DC (176–250 V) operation at 50 or 60 Hz, ensuring compatibility with a variety of industrial power supplies. It delivers a power factor greater than 0.93 and maintains low total harmonic distortion under 20 percent, ensuring stable and efficient operation. Built-in protection systems guard against overvoltage, overheating, and electrical anomalies, while integrated temperature monitoring ensures longevity and reliability. The luminaire meets ATEX temperature classification T6 and maintains a Tc temperature of +75°C, underlining its ability to perform under challenging thermal conditions.
For additional control flexibility, the RayProof V3 supports optional DALI-2 dimming and Constant Lumen Output (CLO) functions to maintain consistent brightness levels throughout its lifespan. It can be upgraded with an emergency lighting module or integrated with motion detection through PIR sensors in DALI-dimmable versions. For enhanced automation, it also supports the proprietary tempLED SensorSystem, allowing intelligent light management that responds to occupancy and ambient light changes.
The RayProof V3 is designed to perform in ambient temperatures ranging from –20°C to +50°C, making it suitable for both cold storage and warm industrial zones. Its constant current power supply ensures operational stability, while the efficient heat sink made of steel optimizes thermal management. Mounting flexibility includes standard wall and ceiling installations, as well as optional pendant configurations, supported by stainless steel clips supplied with each unit. Through-wiring is implemented via two five-pole terminal blocks (5 x 1.5 mm²) with dual cable glands for easy in-and-out wiring, supporting both 3-grid and 3-grid/2-DALI configurations depending on the version.
The fixture complies with CE, RoHS, and DIN 10500 (HACCP | IFS) standards, ensuring suitability for hygienically sensitive environments such as food and beverage processing facilities. The RayProof V3’s circumferential sealing system, efficient power supply, and modular replaceable components emphasize both durability and serviceability. The luminaire’s color finish in signal gray (RAL 7004) blends seamlessly into industrial settings while underscoring its professional design. With a rated service life of approximately 100,000 hours at L70B10C1 and 50,000 hours at L90B10C1, the RayProof V3 offers lasting reliability and minimized maintenance costs.
Each unit is supplied complete with two combination clips for wall or ceiling mounting, ensuring quick and secure installation. As part of tempLED’s commitment to long-term reliability, every RayProof V3 includes a five-year product warranty and a ten-year spare parts guarantee, ensuring continued support and component availability throughout its operational life.
