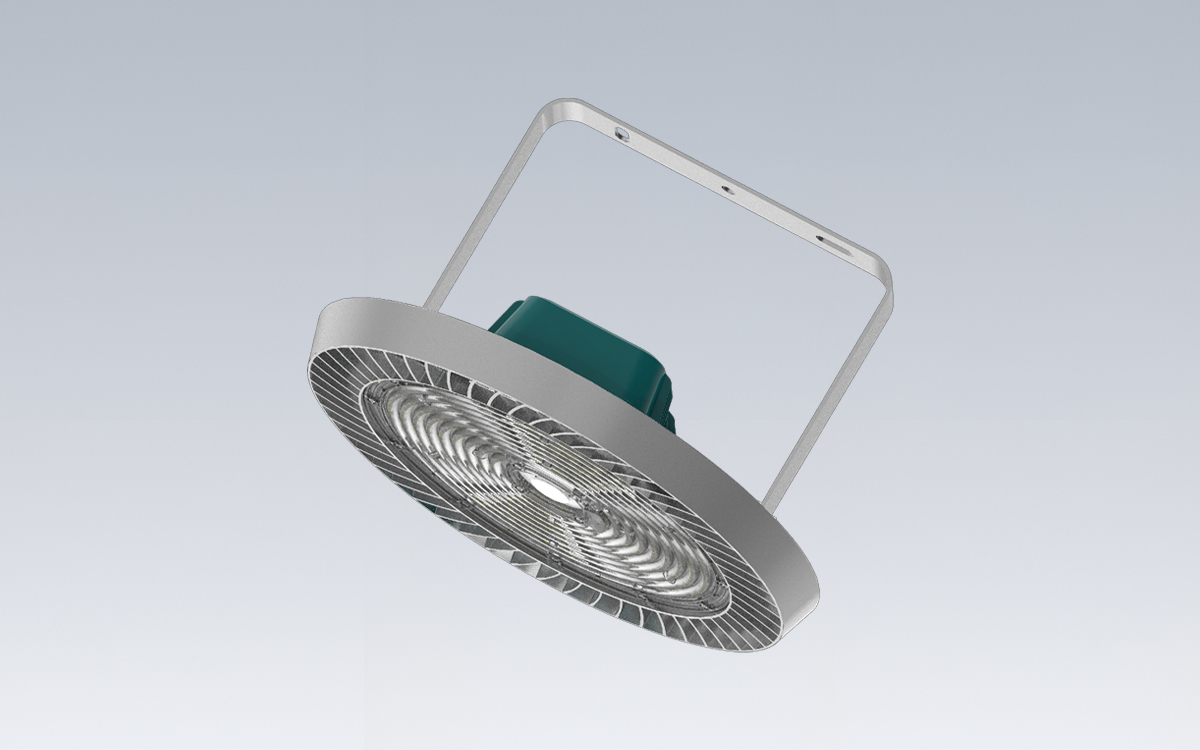

The tempLED RayBeam Lite V2 is a next-generation high-bay LED luminaire tailored for industrial, logistics, and production environments that demand maximum efficiency and durability. Delivering an impressive system efficiency of up to 180 lumens per watt, this modular fixture achieves luminous flux levels from 18,000 to 54,000 lumens, ensuring bright and consistent performance across a wide range of applications. Its turbine-inspired housing structure ensures excellent thermal management by efficiently dissipating heat, while a dust-permeable die-cast aluminum heat sink minimizes dirt accumulation, ensuring sustained optical and mechanical performance over time.
Constructed for longevity and reliability, the RayBeam Lite V2 features a solid die-cast aluminum body finished in powder-coated white aluminum (RAL 9006) for enhanced corrosion resistance, complemented by a water-blue power supply housing (RAL 5021). The fixture incorporates a pressure compensation membrane to prevent condensation, ensuring optimal internal conditions in varying ambient environments from –40°C to +50°C. It carries an IP65 ingress protection rating and IK08 impact resistance, offering robust protection against dust, water, and mechanical stress. Its limited surface temperature (D) and temperature classification T5 (ATEX) ensure suitability for demanding industrial environments, while overvoltage, overheating, and temperature monitoring protections safeguard the luminaire’s electronics.
The optical system utilizes impact- and UV-resistant polycarbonate lenses available in three beam angles—60°, 90°, and 120°. The 60° and 90° options incorporate linear light-control technology for effective stray light reduction, ensuring targeted and uniform light distribution even in high-ceiling applications. The luminaire maintains excellent visual comfort, with a color rendering index (CRI) above 80, color consistency below 5 SDCM, and options for 4,000 K or 5,000 K color temperatures. Its outstanding photometric stability is demonstrated by flicker metrics such as CFD ≤ 1%, SVM < 0.03, and Pst LM < 0.02, ensuring visual comfort in camera-monitored or precision-oriented spaces.
Electrically, the fixture operates across a wide input range—AC 100–240 V or DC 140–250 V at 50/60 Hz, with system power between 100 W and 300 W depending on the model. It maintains a power factor above 0.90 and total harmonic distortion (THD) under 10%, ensuring power quality and compliance with industrial standards. The luminaire’s modular power supply includes a multifunctional socket located at the bottom, enabling integration of optional control technologies such as constant lumen output (CLO), emergency lighting modules, and HF-based presence detectors for intelligent lighting management.
Mounting flexibility is another key strength of the RayBeam Lite V2. The standard adjustable mounting bracket allows positioning from 0° to +90°, while optional accessories support pendant suspension via a ceiling-mounted eyelet or dual mounting configurations using a double holder assembly. The fixture includes a 50 cm H05RN-F 3G1 supply cable with an open-end connection and cable gland inlet for straightforward installation.
Every RayBeam Lite V2 is backed by strong quality assurance. The product complies with CE and RoHS standards, with ENEC certification in preparation, and boasts a rated service life of approximately 100,000 hours (L70B10C1) and 50,000 hours (L90B10C1). tempLED reinforces confidence in the product through a five-year full warranty and an extended ten-year spare parts guarantee, making it a secure, long-term investment for professional environments requiring reliable and high-output LED lighting. Each delivery includes the luminaire and standard mounting bracket, ensuring immediate readiness for installation and integration into modern industrial lighting systems.
