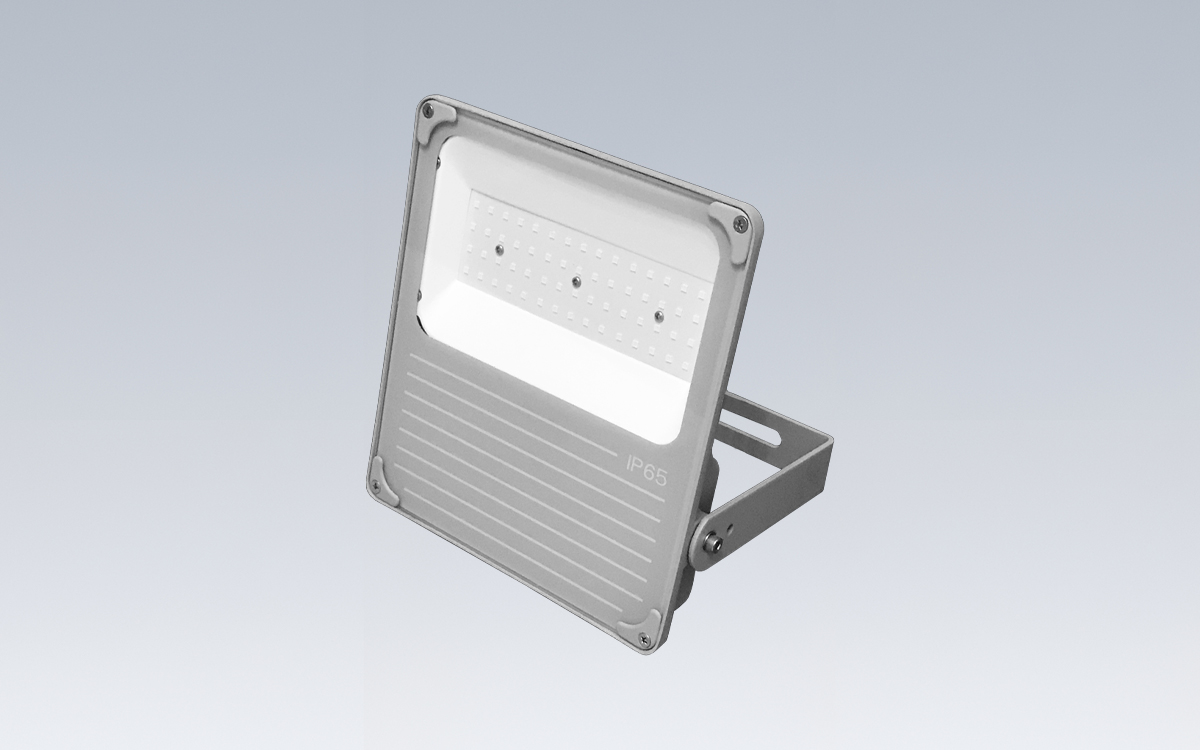

The tempLED RayFlex LED flood light represents a durable and versatile lighting solution for demanding environments such as workplaces, loading ramps, building facades, and security zones. It offers ten power levels ranging from 30 to 300 watts, ensuring flexibility for diverse lighting applications. A broad light distribution pattern enhances its adaptability across various settings, while the option for a low-voltage version (40 watts, 42–48 VAC) makes it suitable for specialized installations. The system also supports retrofittable DALI dimming, enabling advanced control integration. With a full five-year warranty and a ten-year spare parts guarantee, users benefit from a secure and long-term investment.
Built around a modular architecture, the RayFlex luminaire features replaceable components and energy-efficient constant-current power supplies, which can include an optional Constant Lumen Output (CLO) function for consistent brightness over time. Its robust, powder-coated die-cast aluminum housing integrates a high-capacity heat sink to ensure optimal thermal management and durability. A toughened safety glass cover provides impact resistance, while a pressure compensation membrane prevents internal condensation. For larger models (RayFlex 96 to 300), a UV-resistant optical system ensures long-term optical clarity and performance.
The luminaire delivers an initial luminous flux between 4,200 and 40,500 lumens, achieving system efficiency up to 140 lumens per watt. It maintains a color temperature of either 4,000 K or 5,000 K, with a color rendering index (CRI) above 80 and consistency within 5 SDCM. Symmetrical beam angles of 90° or 110° are available for precise light distribution. Built to comply with IEC/TR 62778 photobiological safety standards, the fixture ensures reliable performance and visual comfort.
Electrotechnically, the RayFlex supports both high- and low-voltage configurations. High-voltage versions operate from 100 to 240 VAC, while low-voltage types function between 42 and 48 VAC, both at 50/60 Hz. Power consumption ranges from 30 to 300 watts with a tolerance of ±10%, and the fixture achieves a power factor above 0.90. Integrated protections include overvoltage, overheating, and temperature monitoring systems, complemented by low total harmonic distortion (<10%). The luminaire’s temperature classification (ATEX T5) and a maximum case temperature of +90°C underline its suitability for rigorous industrial conditions.
Energy efficiency classifications align with the European standard: models RayFlex 30/40/50/75/96/145/300 correspond to class D, while RayFlex 200/230 corresponds to class E. The fixture is designed for simple installation, featuring an adjustable mounting bracket with a –90° to +90° range.
The rugged housing supports ambient temperatures from –40°C to +50°C and meets IP65 ingress protection standards for dust and water resistance, alongside an IK07 impact resistance rating. High-voltage types comply with Protection Class I, while low-voltage models meet Class III. A pressure compensation membrane further enhances reliability. Both the housing and heat sink are made from die-cast aluminum, finished in powder-coated white aluminum (RAL 9006). The optical assembly—comprising UV-resistant polycarbonate lenses and a clear toughened safety glass cover—ensures both durability and light quality.
Standard high-voltage units include a 100 cm H05RN-F 3G1 power cable with open ends, while low-voltage versions come with a 1,000 cm cable and a Mennekes plug (type 656 A). The luminaire is equipped with a cable gland inlet for secure wiring and supports three-pole grid connections.
The RayFlex LED flood light meets CE and RoHS standards, and ENEC certification is in preparation. Its long operational lifespan—approximately 100,000 hours at L70B10C1 and 50,000 hours at L90B10C1—ensures sustained reliability and low maintenance. Each unit ships with a luminaire and mounting bracket included, backed by a comprehensive five-year product warranty and a ten-year spare parts guarantee, ensuring peace of mind and long-term value.
