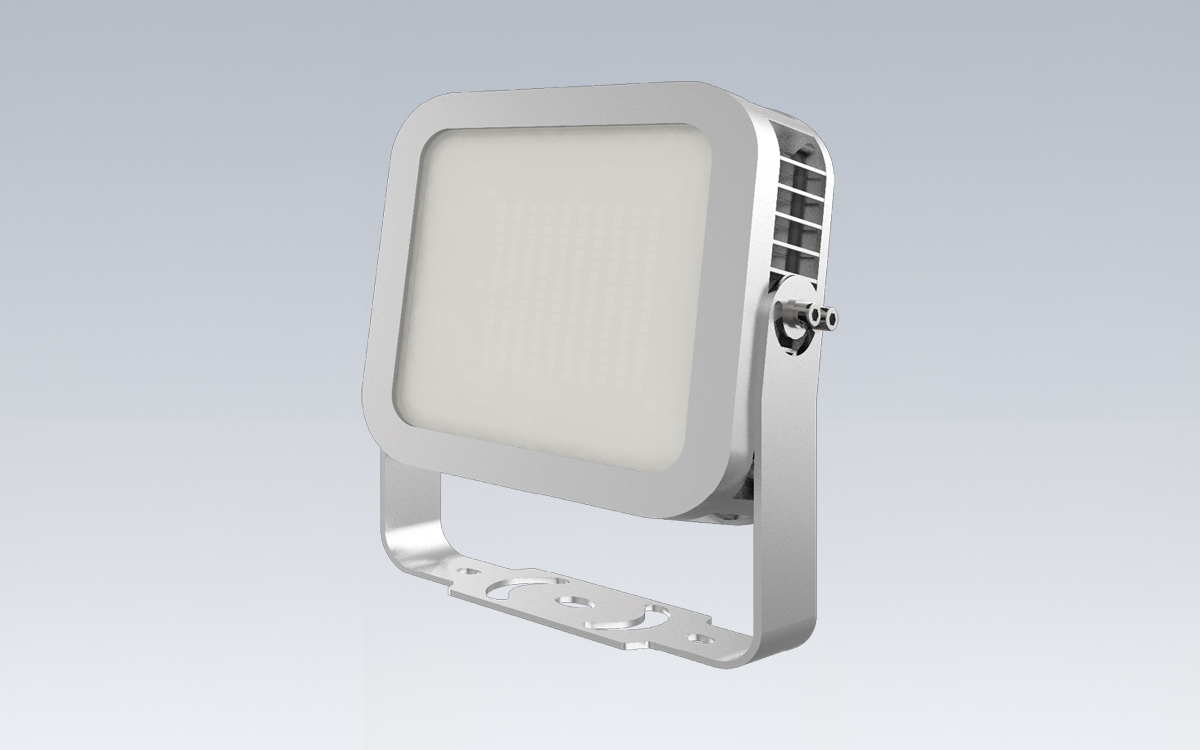

The RayBase V3 high-temperature LED flood light is an ideal solution for heavy industrial environments that experience high ambient temperatures, reaching up to +80 degrees Celsius in standard high-temperature (HT) versions and up to +110 degrees Celsius in ultra-high-temperature (UHT) variants. This luminaire is available in three power levels ranging from 30 to 80 watts, allowing reliable illumination of narrow, hard-to-access, or confined areas. Its compact design is complemented by an opaque, impact-resistant cover lens made of thick safety glass, ensuring durability in challenging conditions. The flood light comes with DALI-2 dimming as standard, allowing flexible light control, and is backed by a five-year full warranty and a ten-year spare parts guarantee, ensuring a secure and long-term investment for industrial operations.
The RayBase V3 flood light incorporates a pressure compensation membrane to prevent condensation, a solid die-cast aluminum housing with durable powder coating, and a modular structure that enables the exchange and replacement of key components. It includes an energy-efficient constant current power supply with integrated DALI-2 dimming and optional constant lumen output (CLO), as well as a high-performance heat sink designed with a chimney effect to withstand extreme ambient temperatures up to +110 degrees Celsius. The optical system is built for durability, using impact- and UV-resistant materials, and the opaque safety glass cover ensures reliable operation even in demanding industrial conditions.
In terms of lighting performance, the RayBase V3 produces initial luminous flux between 4,080 and 11,600 lumens, with a luminous flux tolerance of ±10 percent and system efficiency of up to 145 lumens per watt. The luminaire is available in color temperatures of 4,000 or 5,000 kelvins, with a color rendering index (CRI) greater than 80 and color consistency of less than 5 SDCM. The symmetrical beam angle is 120 degrees, and the photobiological safety is compliant with IEC/TR 62778, while compact flicker degree (CFD) is available on request.
Electrotechnical specifications include AC power supplies ranging from 198 to 240 volts for HT versions and 100 to 240 volts for UHT versions, with supply frequency of 50/60 hertz. DC power supply ranges are 176 to 250 volts for HT types and 127 to 250 volts for UHT types. The system performance spans 30 to 80 watts with ±10 percent tolerance, a power factor above 0.90, overvoltage and overheating protection, and temperature monitoring. Total harmonic distortion (THD) is below 10 percent, and the temperature classification meets ATEX T5 standards, with maximum Tc temperatures of +85 degrees Celsius for HT and +90 degrees Celsius for UHT types.
The RayBase V3 flood light is rated IP67 for ingress protection and IK08 for impact resistance, making it suitable for harsh industrial environments. Electrical protection class is I, and the luminaire maintains a limited surface temperature for HT types. The housing and heat sink are constructed from die-cast aluminum, while the mounting bracket is made of powder-coated steel in white aluminum according to RAL 9006. The cover plate is opaque, impact-resistant toughened safety glass, and the housing is finished with durable powder coating. Supply cables and connections vary depending on the specific model, with cable inlets via cable gland and open cable ends for three-pole AC and two-pole DALI connections.
The RayBase V3 maintains longevity under extreme conditions, with a lifespan of approximately 100,000 hours at 25 degrees Celsius and around 80,000 hours at elevated temperatures of 80 degrees Celsius (HT) and 110 degrees Celsius (UHT). L90B10C1 lifespan is approximately 50,000 hours at 25 degrees Celsius. The HT version carries a five-year guarantee, while the UHT version has a three-year guarantee, complemented by a ten-year spare parts guarantee. The flood light is delivered complete with the luminaire and mounting bracket, making it ready for installation in industrial high-temperature environments.
