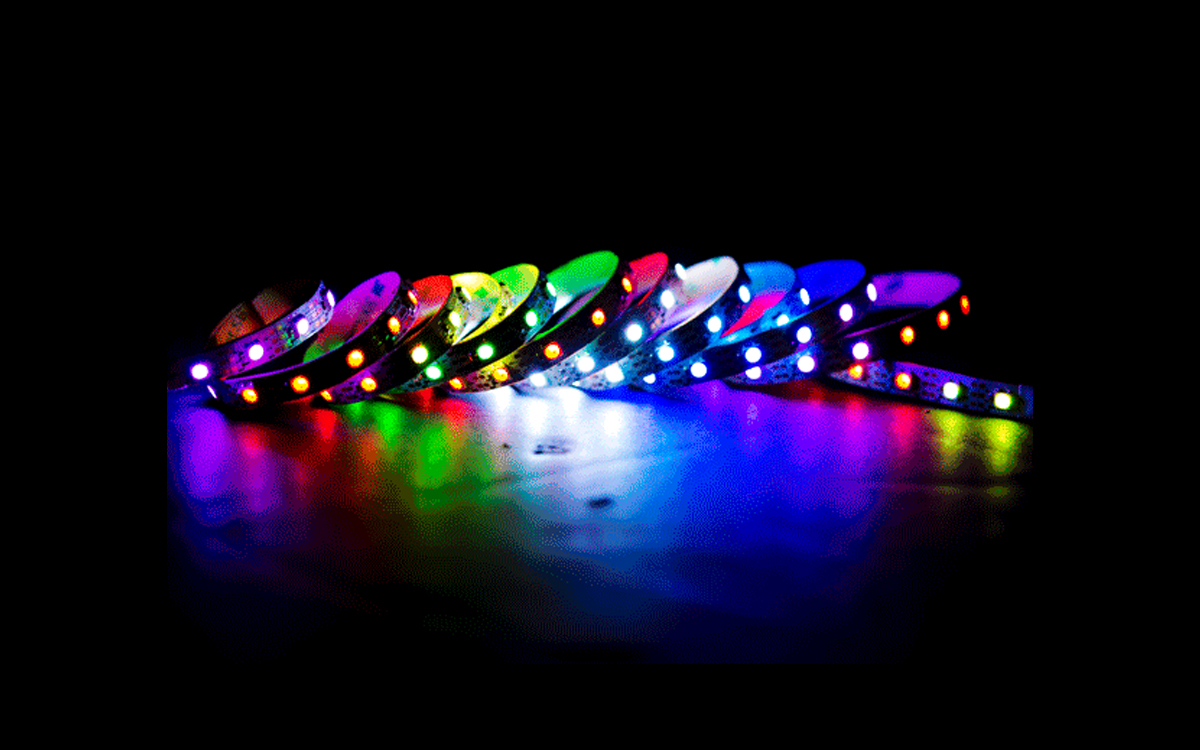

The RGBDW 4-in-1 PixelControl LED Strip Light is an advanced lighting solution that dramatically expands the creative possibilities of pixel-controlled LED installations by combining standard RGB LEDs with 6,500K white LEDs in a single node. This unique configuration allows lighting designers to produce richer tones and more nuanced color blends that were previously unattainable with traditional RGB-only pixel strips. Each pixel contains one RGBDW 4-in-1 LED, enabling designers to mix RGB with 6,500K white on a pixel-by-pixel basis. This level of control allows for smooth gradients, eye-catching fades, and complex animated effects. Each two-meter reel contains 120 individually addressable pixels, with a high density of 60 LEDs per meter and a compact 10mm width, offering precise placement and flexible installation options. The strip is cuttable at every LED, providing the smallest possible increment for custom layouts.
The RGBDW 4-in-1 PixelControl LED Strip is fully compatible with a range of PixelControl LED controllers, allowing for robust control of color, speed, brightness, and animation direction without requiring additional DMX decoders. For integration into DMX-based systems, the RGBDW 4-in-1 Strip can be paired with the DMX512 V2 PixelControl Decoder, which converts standard DMX output into the serial protocol required by the WS2814 IC that drives the LEDs. This makes it suitable for both standalone creative installations and complex, professional DMX setups.
Each reel is equipped with a female SM connector on the input side and a male SM connector with a built-in power injector on the output. For reliable performance in linked installations, additional power should be injected approximately every two meters. The strip is directional, with arrows clearly indicating the correct input orientation. When using SM connectors, the maximum recommended amperage is 3.5A per connector to ensure stable operation and prevent damage.
Technical specifications highlight the RGBDW 4-in-1 PixelControl LED Strip’s performance and flexibility. Each pixel is addressable in the order of Green, Red, Blue, and White, driven by a WS2814 IC and powered by 5 VDC. Each reel contains 120 pixels, corresponding to approximately 0.93 DMX universes. Power consumption is 25.5 watts per reel, or 12.8 watts per meter, with an energy-efficient output that provides bright, consistent illumination. The strip is cuttable every 0.65 inches (16.7 mm), allowing for precise placement in custom installations. The LEDs emit light at wavelengths of 623 nm (red), 522 nm (green), 472 nm (blue), and 6,500K for the white channel, enabling accurate color reproduction and high-quality white light for professional applications.
The RGBDW 4-in-1 PixelControl LED Strip is ideal for creating dynamic, animated lighting effects that incorporate both RGB and white light. It is suitable for architectural lighting, stage and entertainment environments, interactive displays, retail installations, and any project that requires precise pixel-level control. The combination of high-quality LEDs, flexible cutting increments, and compatibility with DMX and PixelControl systems provides designers with a versatile tool for crafting visually striking lighting experiences.
