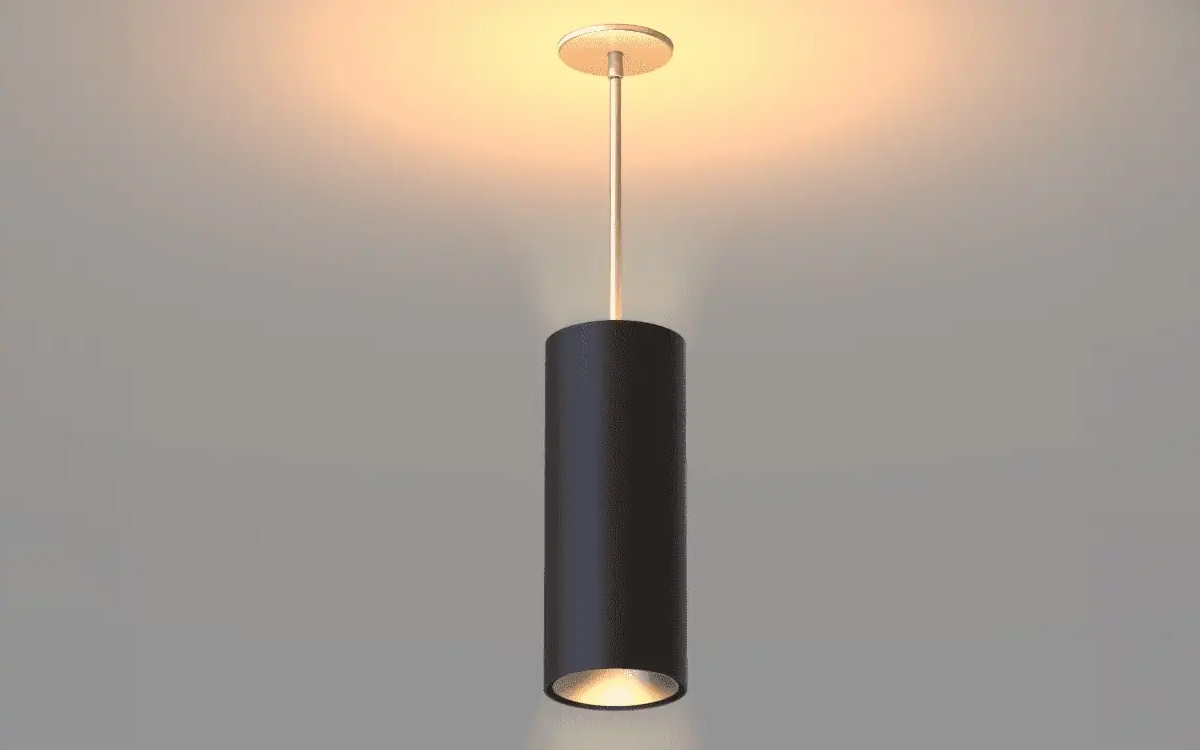

INZA is a refined and innovative indirect LED lighting fixture that balances performance with minimalist design. Defined by its simple, single-point suspension, this cylindrical pendant delivers a clean, architectural presence while providing soft indirect illumination that highlights ceiling details and enhances overall spatial character. Available in a 6-inch round housing, INZA comes in two distinct configurations: the I6RT model, which offers both indirect and direct illumination, and the I6RP model, which delivers indirect lighting only.
In its indirect plus direct configuration, the I6RT features two independent circuits, allowing for separate dimming and precise specification of lumen output, color temperature, and optical control in each direction. This flexibility makes it well-suited for a wide range of applications, from focused task lighting to broad ambient illumination. Performance options include lumen packages from 700 up to 3000 lumens, with LED color temperatures ranging from 2700K to 4000K. With CRI ratings available in both 83 and 98, INZA ensures high-quality color rendering for visually demanding environments. Optical distributions range from narrow 11-degree beams to wide 83-degree spreads for downlighting, along with medium and wide distributions for uplighting.
The light source is powered by the Xicato XTM LED module, delivering up to 3000 source lumens in each direction. Color consistency is tightly controlled within a 1x2 SDCM MacAdam ellipse along the black body locus, ensuring uniformity with minimal shifts—CCT tolerance is held to within ±40K to 70K, with Duv limited to ±0.001. This guarantees precise, reliable light quality over time.
INZA integrates high-performance control and driver options within its system. The internal driver is available with standard 0–10V or phase dimming down to 10 percent, while advanced protocols including Lutron EcoSystem, DALI, DMX, and 1 percent dimming are also supported. Input voltage ranges from 100 to 277VAC, with 347VAC options available upon request, and phase dimming versions are compatible with 120VAC only. Depending on configuration, the fixture consumes up to 72 watts.
Crafted with CNC-machined aluminum and stainless steel hardware, INZA is built for durability as well as elegance. A TGIC polyester powder-coated finish ensures long-lasting performance for interior use, while the fixture’s 8.5-pound (3.9 kg) weight supports stability in its suspension design. It is listed for damp locations, ETL listed to UL 1598, 2108, 8750, and CSA standards, making it compliant for a wide range of applications.
INZA is engineered for longevity, with an L70 lifetime exceeding 55,000 hours at 70 percent lumen maintenance, backed by LM80 and TM-21 data. Field-replaceable reflectors, available without tools, provide easy maintenance and flexibility over time. The fixture also comes with a lifetime limited warranty, further ensuring long-term reliability. Supporting documentation, including LM-79-08 IES files, is available for lighting designers and specifiers who require detailed photometric data.
