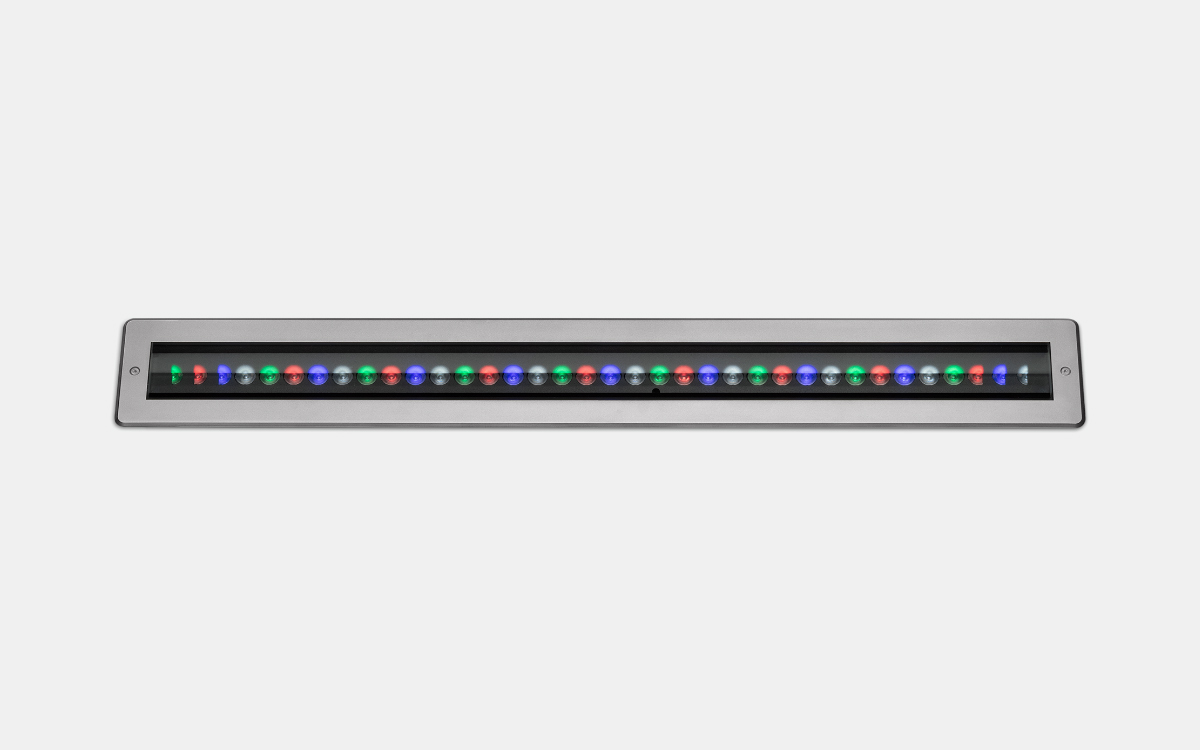

The PARADE L Recessed RGBW series offers a high-performance solution for architectural in-ground lighting, combining precision, output, and visual appeal across multiple fixture lengths. Designed specifically for close-up installations, each luminaire delivers superb light output and consistent color coverage, making them ideal for wall grazing and recessed pedestrian area applications. Built with a modular super-flux design and high-luminance RGBW LED configuration, PARADE L units ensure vibrant chromatic mixing using premium LEDs available with either 4000K natural white or 3000K warm white. Their robust IP67-rated housing and integrated power supply support quick plug-and-play installation and reliable long-term use, even in walk-over environments.
The PARADE L1 Recessed RGBW bar is the most compact in the lineup, delivering up to 920 lumens at 46 lm/W while maintaining a low-profile footprint of just 388x142x84 mm. It supports various advanced control protocols including DMX-RDM, DALI DT8, DALI, self-addressing, and wireless data. Its versatile optics range from narrow spot beams to elliptical wide and wall wash distributions, offering precise lighting control tailored to architectural needs. Operating at 20W max with an IK10 impact rating, the L1 is engineered for efficiency and durability in pedestrian zones.
PARADE L2 Recessed RGBW builds on this foundation with a longer housing and significantly higher light output—2086 lumens at 55 lm/W—within a 680x132x117 mm form factor. In addition to the same robust weatherproofing and control features, L2 introduces optional one-foot-long independent pixel clusters. These pixel modules enable dynamic lighting effects, making the L2 ideal for animated visual designs and graphic rendering in urban installations. Consuming just 38W, it balances power and performance for mid-scale applications.
Stepping up in scale and power, the PARADE L3 Recessed RGBW pushes output to 2538 lumens at 44 lm/W, expanding fixture length to 984 mm. It retains the independent pixel functionality and full optical versatility found in the L2, while offering even broader coverage for large façades and public spaces. With the same DMX, DALI, and wireless compatibility, the L3 is a powerful choice for complex lighting designs requiring modular scalability.
At the top of the range, the PARADE L4 Recessed RGBW delivers an impressive 3432 lumens at 44 lm/W in a 1289 mm fixture. It is ideal for expansive in-ground installations where high output and extended reach are critical. Like the L2 and L3, the L4 features optional independent pixel control for animated displays, making it a top-tier solution for large-format, programmable architectural lighting projects. Despite its power, the fixture maintains efficiency at just 78W and supports full DMX-RDM, DALI DT8, self-addressing, and remote wireless data control.
All PARADE L models feature walk-over rated recessed housings with IK10 impact resistance, a wide variety of beam angles including spot, medium, wide, and elliptical options, and seamless integration into modern urban lighting landscapes. The series offers lighting designers a scalable and adaptable system for color-rich, dynamic exterior applications.
