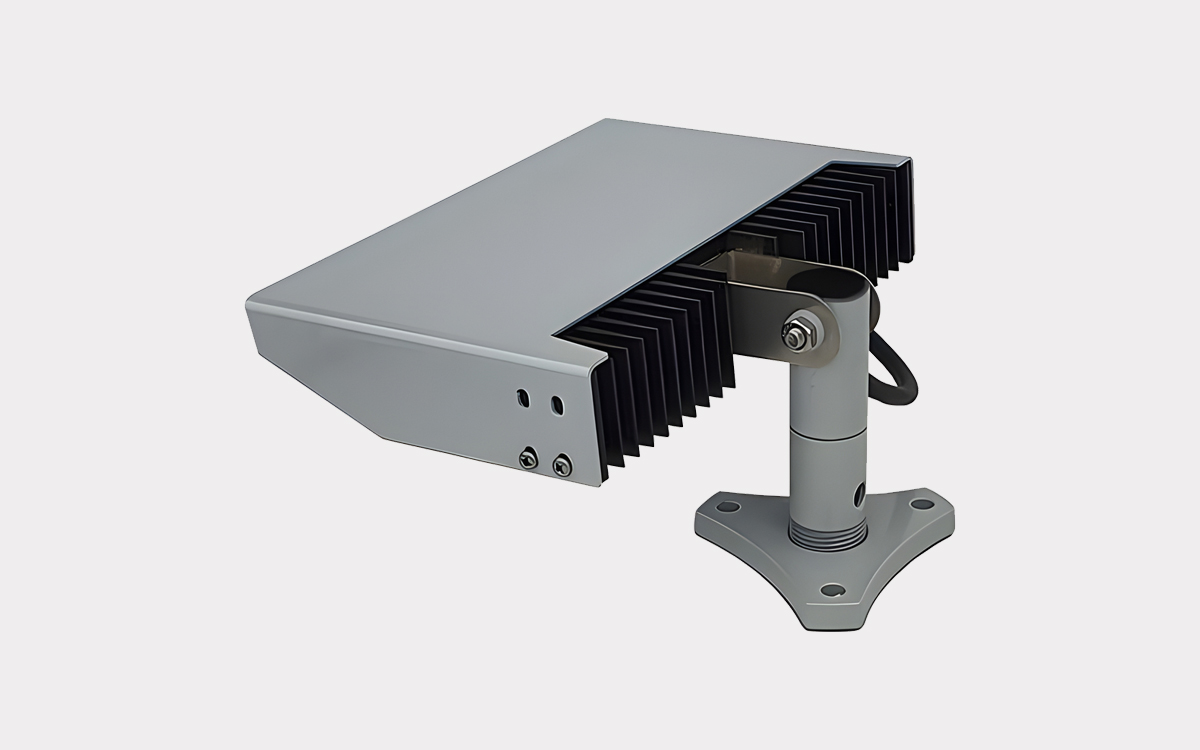

The HA-Heliflo is a high-performance, purpose-built floodlighting system engineered for heliport applications, particularly focused on illuminating Touchdown and Lift-Off Areas (TLOF) and delivering efficient wash lighting. With a design that prioritizes both functionality and safety, this fixture is ideal for enhancing visibility during helicopter operations while minimizing glare and obstructions. Equipped with an integrated anti-glare shield and a frangible mount, the HA-Heliflo reduces visual discomfort for pilots and enhances safety in case of impact, making it exceptionally well-suited for critical aviation environments.
Operating on a versatile 100–240 VAC power supply, the HA-Heliflo offers installation flexibility across a range of electrical systems. The unit emits bright white light with a 6000 K color temperature, ensuring sharp, high-contrast illumination that meets stringent heliport operational requirements. Constructed from marine-grade aluminum (AlMg4,5), the floodlight features a sleek metallic grey RAL 9006 finish as standard, with custom colors available upon request. This combination of rugged material and refined aesthetics delivers durability and style in demanding outdoor conditions.
With a power consumption of approximately 50 watts and compact dimensions of 318 x 255 x 131 mm, the HA-Heliflo maintains energy efficiency without compromising brightness. Its robust build is reinforced with an IP67 ingress protection rating, guaranteeing full resistance to dust and protection against immersion in water up to 1 meter in depth. These characteristics ensure long-term reliability and consistent performance in harsh environments, including extreme weather.
Weighing approximately 3.5 kg, the HA-Heliflo is both lightweight and strong, facilitating straightforward installation and reducing structural stress on mounts and poles. Fully compliant with global aviation standards—including ICAO Annex 14 Vol. II Heliports, EASA ADR Heliports, FAA AC 150/5390-2c, and UK CAP 437—the floodlight supports international safety and regulatory requirements, making it a trusted solution for heliports worldwide.
Whether used for general floodlighting, targeted TLOF illumination, or helipad wash lighting, the HA-Heliflo ensures maximum operational safety, exceptional visual performance, and long-lasting dependability in every heliport lighting application.
