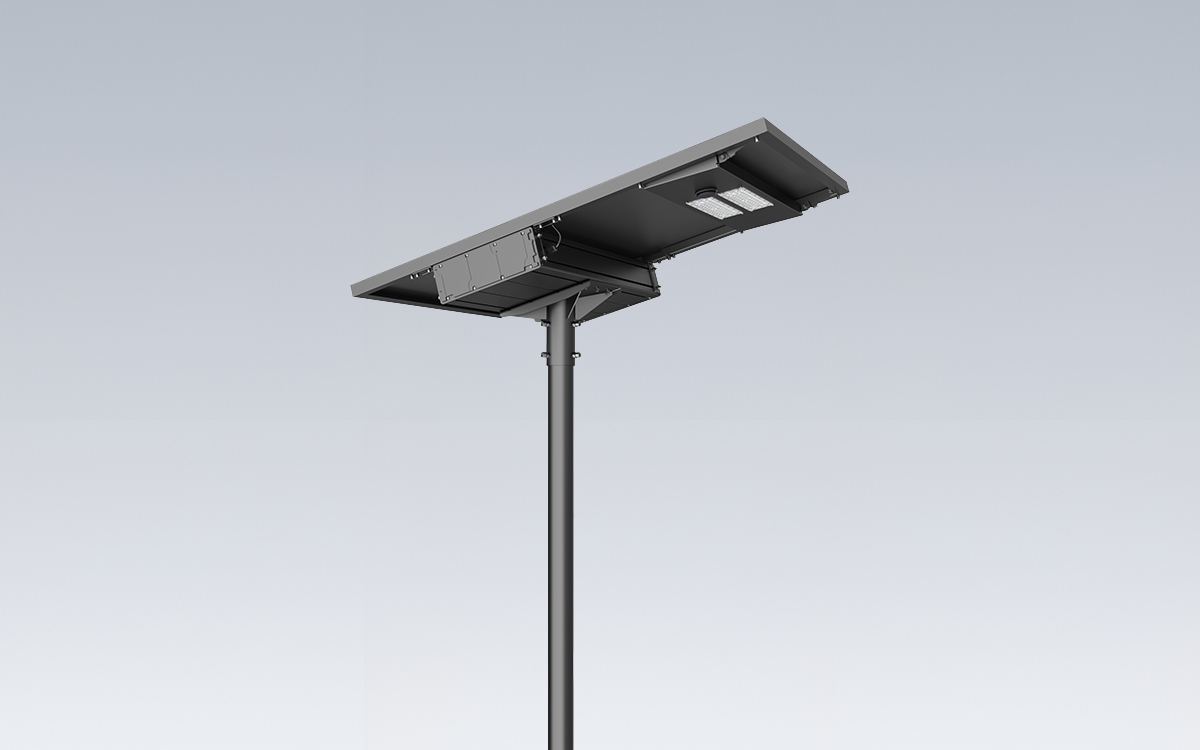

The PV7 series AIO high-power solar LED street lights represent a modern approach to sustainable outdoor lighting, combining advanced performance, durability, and smart energy management. These solar street lights are available in an all-in-one configuration, with an optional all-in-two design that separates the solar panel from the luminaire while maintaining a compact and efficient layout. The battery compartment is constructed from profile aluminum alloy, providing robust waterproof protection and long-lasting durability while promoting effective heat dissipation. This ensures that the built-in high-energy density lithium-ion battery, which has a service life of up to eight years, remains reliable in diverse outdoor conditions.
With luminous efficacy reaching 200 lumens per watt, the PV7 series delivers uniform brightness across large areas. High-efficiency LED modules are paired with various light distribution curve designs, including Type II, Type III, and Type V, enabling precise control of light placement for streets, pedestrian areas, parking lots, and commercial spaces. The optional all-in-two configuration and strategically positioned solar panels maximize solar energy utilization, enhancing system efficiency and reducing the need for frequent maintenance. The plug-and-play connection between the solar panel and the luminaire simplifies installation, making high-quality, sustainable lighting solutions more accessible for urban and remote applications.
The PV7 series is available in power ratings from 80W to 120W, with solar panel capacities ranging from 160W to 240W and battery capacities between 1,536Wh and 2,304Wh. Operating on DC 12/24V input, the luminaire offers a color temperature range of 2,200K to 6,500K, and CRI values of Ra>70 by default, with optional Ra>80 for enhanced color rendering. Post-top mounting is standard, and the system supports intelligent controls including motion or PIR sensors, timer dimming, and daylight sensors for automated operation and energy conservation.
Constructed for durability and reliable performance, the PV7 series meets IP66 and IK10 standards for water, dust, and impact resistance and can operate within a wide temperature range of -20°C to +60°C. Certifications include CE, IEC, ROHS, LM79, LM80, TM-21, IP66, IK10, and IEC62471, ensuring compliance with international safety and quality standards. The series also supports remote control to adjust system configuration, enabling flexible management of outdoor lighting networks. Backed by a three-year warranty, the PV7 series AIO solar LED street lights provide a robust, sustainable, and adaptable solution for modern urban and commercial lighting projects.
