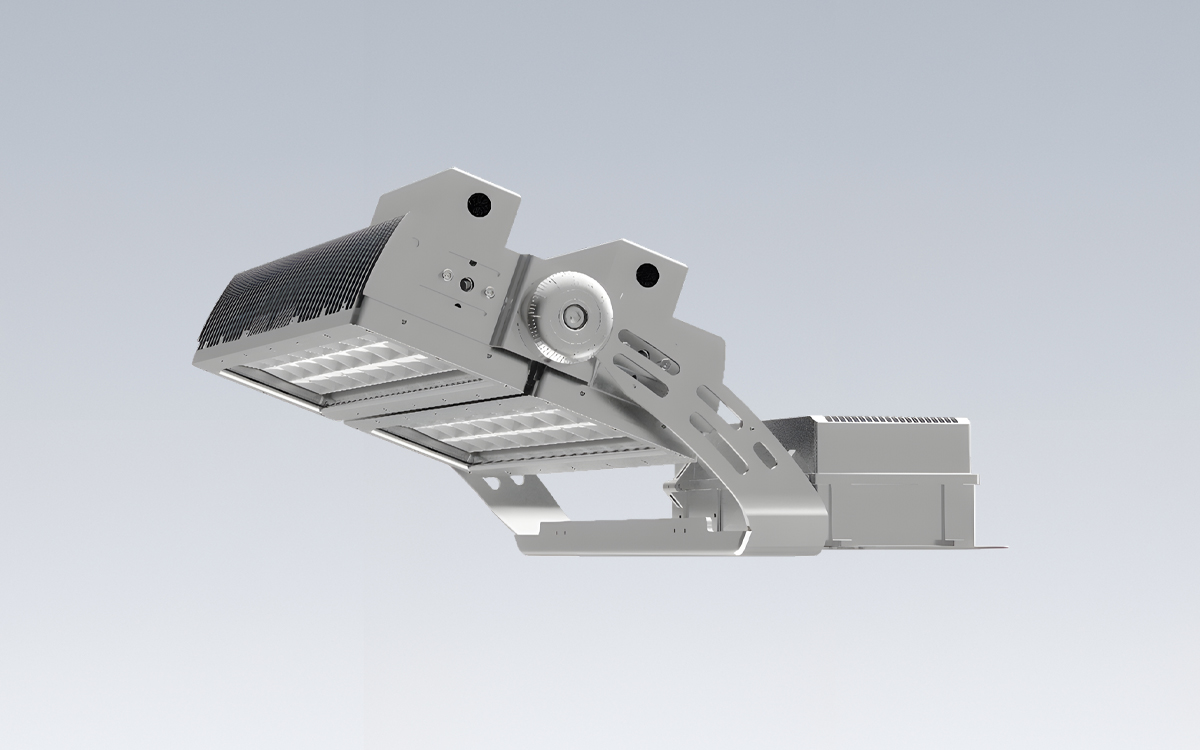

The RayField V3 LED floodlight represents a new benchmark in high-power lighting for large-scale outdoor and industrial applications. Developed for environments that demand maximum brightness and precision, this powerful luminaire excels in sports arenas, shipyards, hangars, cranes, and mast installations. With six output levels ranging from 400 to 1,800 watts and an impressive luminous efficacy of up to 160 lumens per watt, it delivers exceptional light output while maintaining energy efficiency and reliability. Its modular construction allows all main components to be exchanged or replaced with ease, ensuring a durable and future-proof lighting solution. The RayField V3 is also distinguished by its ability to deliver targeted light distribution without unwanted glare, making it particularly suitable for professional and recreational sports facilities—from soccer, basketball, and tennis courts to golf courses and ski slopes—both indoors and outdoors.
At the heart of the RayField V3 lies a choice of precision-engineered optical systems that ensure light is directed precisely where it is needed. The range includes symmetrical beam angles of 15° and 30°, as well as asymmetrical distributions of 20° x 30° and 35° x 85° for complex site geometries or tall mounting positions. These optics guarantee high uniformity and control, while an optional reflector system can achieve a Unified Luminaire Rating (ULR) of up to 0%, minimizing stray light and preventing skyglow—an essential advantage for sports facilities near residential zones or in environmentally sensitive locations. For even greater ecological consideration, a warm white 3,000 K color temperature is available to reduce disruption to nocturnal wildlife, making the fixture suitable for environmentally responsible installations.
The floodlight’s electrotechnical design ensures safe, stable, and long-lasting performance under demanding conditions. It supports both AC (100–240 V) and DC (127–250 V) power input, with integrated constant current drivers that can be configured for DALI-2 dimming or optional Constant Lumen Output (CLO) functionality. Depending on the power rating, one to three power supplies are integrated, and each unit incorporates robust overvoltage protection up to 20 kV, as well as thermal monitoring and overheating safeguards. With a power factor greater than 0.90 and a total harmonic distortion (THD) below 20%, the system guarantees electrical stability and compatibility with modern control networks.
The RayField V3 also demonstrates exceptional structural and environmental resilience. Its die-cast aluminum housing and heat sink combine strength with effective thermal management through a chimney-cooling effect that optimizes heat dissipation during prolonged operation. The 5 mm thick tempered safety glass front cover offers superior impact resistance, while the UV-resistant optical components maintain optical clarity and color stability over time. Rated IP66 for ingress protection and IK08 for impact resistance, the luminaire operates reliably in temperatures from –40°C to +45°C, ensuring uninterrupted functionality in extreme climates. Both the luminaire head and power supply box are equipped with pressure compensation membranes to prevent condensation and maintain internal balance.
Installation flexibility is a defining advantage of the RayField V3. It comes with a precision-engineered steel mounting bracket, powder-coated in RAL 9006 white aluminum, allowing an adjustment range from –180° to +110° for optimal aiming and beam placement. A degree indicator ensures consistent alignment across multiple units, while vandalism protection can be added via optional accessories. The remotely mountable power supply box, connected through cables up to 50 meters in length depending on the configuration, simplifies maintenance and wiring thanks to its tool-free access design.
In terms of operational reliability, the RayField V3 ensures long service life and minimal maintenance demands. It boasts a rated lifetime of approximately 100,000 hours at L70B10C1 and 50,000 hours at L90B10C1, ensuring years of dependable service even under continuous operation. Certified for ENEC, CE, and RoHS standards, the fixture meets stringent quality and safety requirements. Each floodlight comes complete with the luminaire, mounting bracket, fall protection, and the appropriate power supply box, fully preassembled for installation.
Every unit is backed by a five-year full warranty and a ten-year spare parts guarantee, emphasizing the manufacturer’s confidence in its long-term reliability and build quality. Whether used to light professional stadiums, industrial yards, or large outdoor venues, the RayField V3 combines power, precision, and durability in a single, future-ready solution that meets the most demanding lighting challenges.
