High-Output LED Tail Fin Position Light for Gulfstream Aircraft

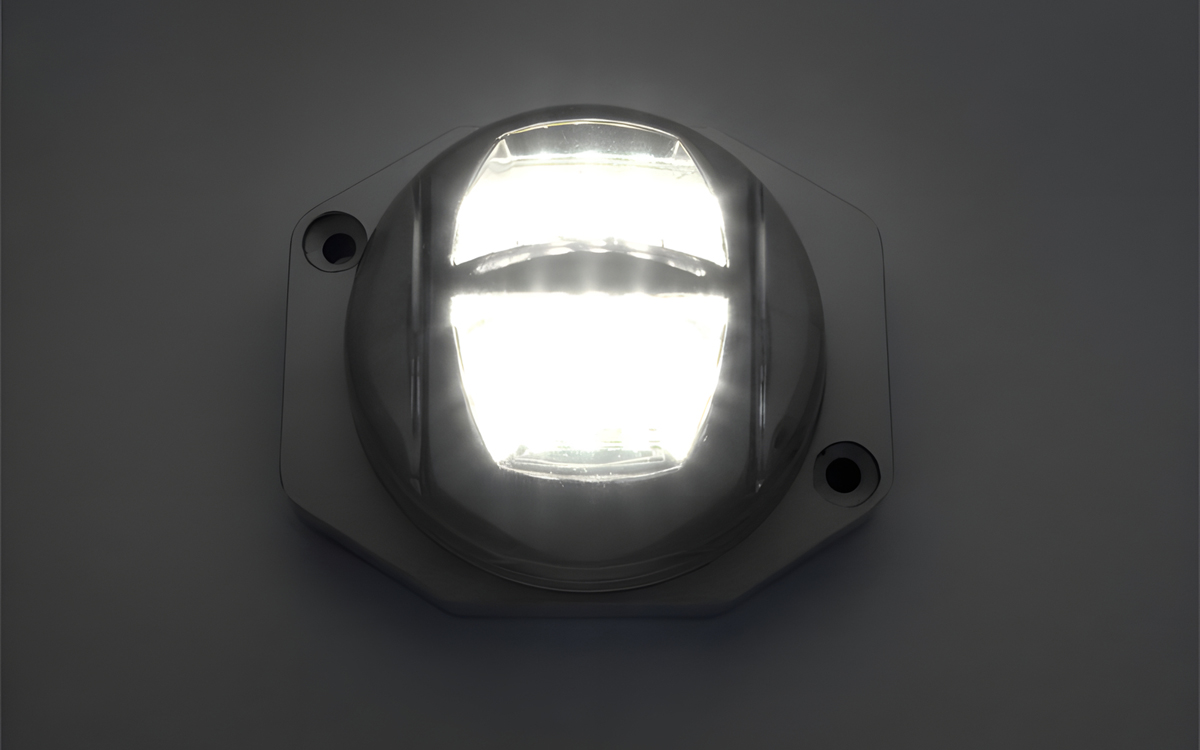

The Aveo Pegatron tail fin position light is a compact, high-performance solution engineered as a direct drop-in replacement for the Honeywell Astreon Tail Position Light. Specifically designed for aviation applications requiring a reliable and efficient position light, Pegatron offers a reduced physical footprint while delivering superior optical output. It is ideally suited for Gulfstream aircraft, with an STC applicable to models G100, G200, GII, GIII, GIV, G450, GV, and G550, and replaces legacy models such as A2064, B9730, 30-2368, and 30-2382 with modern solid-state technology.

Utilizing 12 ultra-high brightness CREE LEDs in the white POSITION mode, the Pegatron light provides 140° horizontal coverage and exceptional visibility, far surpassing the performance of older-generation lights. Compared to the Honeywell Astreon, which employs only three low-power LEDs, the Pegatron delivers a significantly higher light output, making the aircraft visible from up to five times the distance. This makes it an ideal solution for operations where superior visibility and safety are critical.

The Pegatron light is hermetically sealed and built to withstand harsh environmental conditions. It is waterproof, shockproof, dust-proof, and vibration-resistant. Its robust design has been rigorously tested to DO-160 categories and exceeds applicable EASA ETSO standards. The unit operates within a wide temperature range from -55°C to +85°C (-67°F to +185°F), and includes built-in over-temperature protection, reverse polarity protection, and over-voltage shutdown at 38.5V DC. It supports a DC input voltage range from 18V to 36V, with a nominal operating voltage of 28V DC, drawing approximately 0.22A ±5%.

Weighing only 106 grams (0.234 lbs), the Pegatron also contributes to overall aircraft weight savings. It requires no external power supply units, which further simplifies installation and reduces system complexity. As a result, the Pegatron is not only a technologically advanced lighting upgrade but also a highly efficient and maintenance-friendly option for aircraft tail position lighting.

https://www.aveoengineering.com/pegatron/
