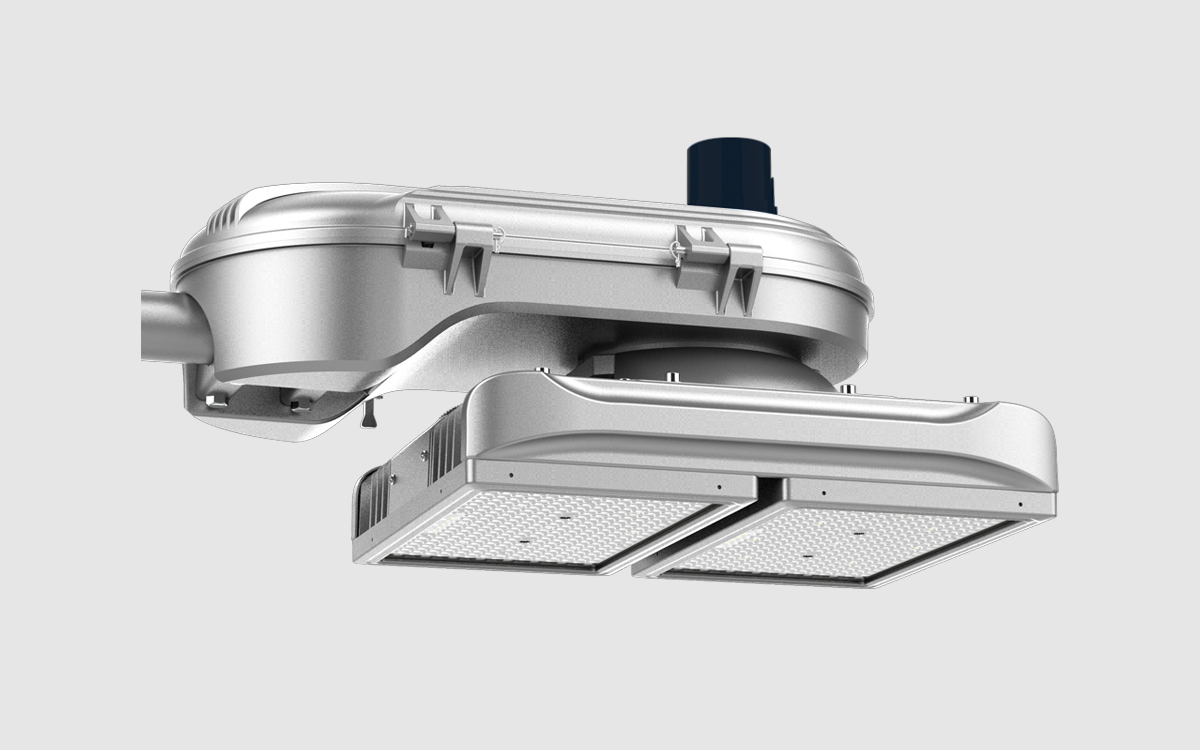

The Soar Series High Mast LED is engineered to deliver powerful, high-output illumination for large-scale outdoor environments such as ports, terminals, airport aprons, and expansive facility areas. Combining performance and durability, this advanced fixture provides up to an impressive 140,000 lumens in a sleek, purpose-built form factor. All electrical and optical components are fully enclosed in a high-strength, marine-grade die-cast aluminum housing, protected by a weather-resistant powder coat finish and secured with marine-grade stainless steel hardware. The IP66-rated enclosure, paired with a UV-resistant polycarbonate lens, ensures excellent resistance to water, dust, corrosion, and UV exposure, making the fixture ideal for harsh coastal and industrial environments. Field-rotatable optics allow precise beam orientation with 0–360° rotation, while the mounting system accommodates standard 1.65–2.375 inch (42–60 mm OD) mast arms and provides a ±5° tilt adjustment for targeted light distribution.
Available in two high-performance configurations—630W delivering up to 105,000 lumens, and 960W delivering up to 140,000 lumens—the Soar Series offers exceptional efficiency and long-term reliability. It features a rated L80 lifetime exceeding 100,000 hours per TM-21, significantly reducing maintenance demands and operational downtime. The fixture supports a choice of color temperatures, including super cool white (5700K), cool white (5000K), and neutral white (4000K), ensuring the ability to match site-specific visual requirements while maintaining uniform coverage across large areas.
The Soar Series also integrates seamlessly with modern lighting control systems, featuring standard compatibility with Synapse® controls as well as a 7-pin twist-lock receptacle and shorting cap for easy integration with third-party control platforms. Its electrical system operates on either 120–277V or 277–480V at 50/60Hz, with a power factor greater than 0.9 at 277V and a total harmonic distortion (THD) of less than 15%. Designed to withstand demanding conditions, the fixture is vibration-tested to ANSI C136.31 3G standards, passes 1,000 hours of salt spray testing per ASTM B117, and maintains reliable performance across ambient temperatures from -30°C to +50°C.
With an effective projected area (EPA) of 1.69 sq. ft. (0.15 m²) and a fixture weight of 69 lbs (31.5 kg) for both wattage models, the Soar Series offers robust yet manageable installation. Measuring 28.7 inches (730 mm) in length, 17.3 inches (439 mm) in width, and 11 inches (283 mm) in height, it combines compact design with uncompromising performance. Certified to UL 1598 for wet locations, compliant with CE, IP66, and RoHS standards, the Soar Series High Mast LED delivers reliable, high-intensity lighting with the durability and adaptability needed for the most demanding large-area applications.
