The Highland® Series is engineered to illuminate expansive ports, terminals, and large industrial areas across the United States, delivering reliable, energy-efficient lighting solutions that reduce maintenance costs while enhancing safety and security. Designed to retrofit outdated HID fixtures or specified for new construction projects, the Highland Series incorporates advanced, customized optics that ensure uniform illumination across vast spaces, minimizing the number of fixtures required and optimizing overall investment. Its versatile optical options allow tailored light levels to meet the specific needs of different environments and operational demands within ports, intermodal terminals, prisons, military bases, and other industrial facilities.
Available in two sizes—the Highland 500 and Highland 250—the series offers a range of lumen outputs and customizable optics to provide superior illumination tailored to the operational area below. The Highland 500 delivers up to 80,000 lumens at 530 watts, while the Highland 250 offers up to 40,000 lumens at 265 watts, both providing energy savings of up to 65% compared to traditional HID fixtures. These fixtures boast an impressive lifetime of more than 100,000 hours, ensuring long-lasting performance and reduced replacement frequency.

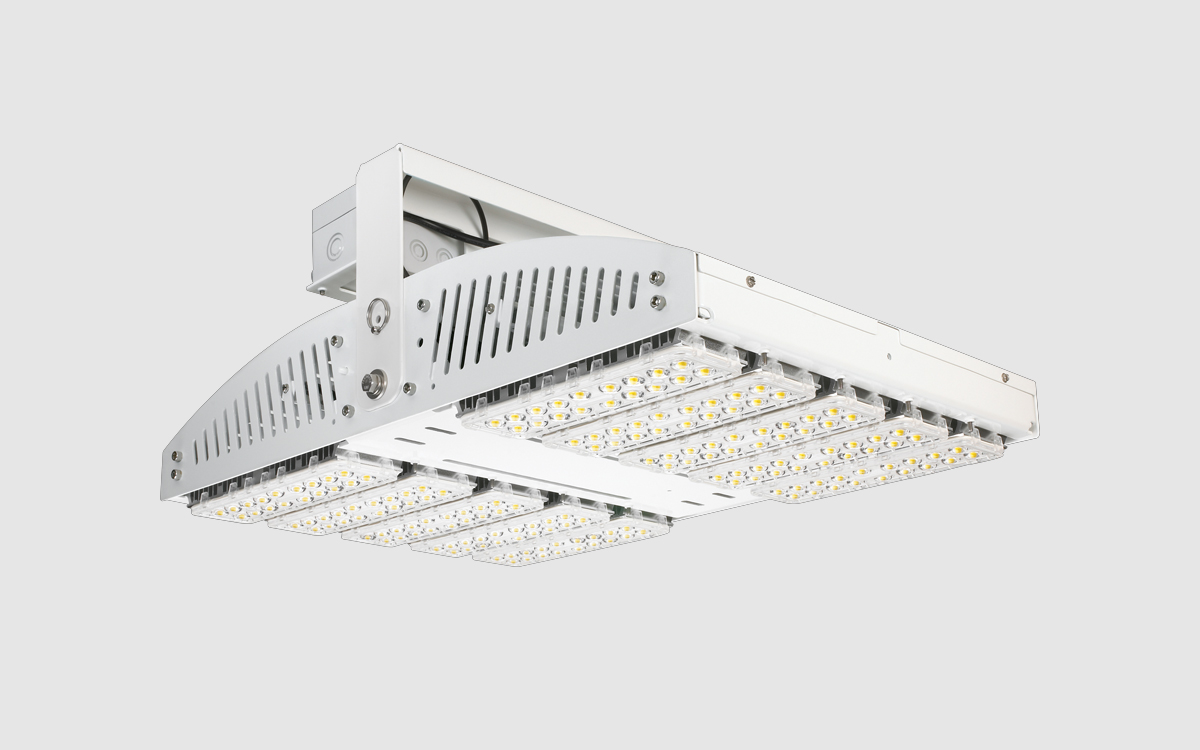

Constructed from high-strength AL5052 aluminum, the Highland fixtures feature a weather-resistant powder coat finish and are complemented by marine-grade stainless steel hardware to withstand harsh environmental conditions. The built-in, adjustable visor option enhances light control and glare reduction, and the fixtures are equipped with UV-resistant polycarbonate lenses to maintain clarity and durability over time. Standard mounting includes a trunnion mount with 5° indexed aiming for precise positioning, while an optional pipe mount accommodates NPS pipes from 2.00 to 2.38 inches outer diameter. The fixtures exhibit a low effective projected area (EPA), with the Highland 250 model at 0.96 square feet and the Highland 500 model at 1.21 square feet, optimizing wind load resistance for high mast installations.
The Highland Series supports a wide input voltage range, from 90 to 305 volts at 50-60 Hz for the 120-277V models and 249 to 528 volts at 50-60 Hz for the 277-480V models, ensuring compatibility with diverse electrical systems. They offer advanced surge protection rated at 20kV/10kA, maintaining a power factor above 0.9 at 277 volts for efficient energy use. The fixtures are rated IP66 for weatherproof performance and withstand ambient operating temperatures from -40°C to +45°C, making them suitable for a wide range of challenging outdoor environments.
Certifications include ETL/cETL listings for UL 1598 wet locations and UL 8750 for LED equipment, CSA C22.2 No. 250.0, DLC qualification, and approval by the International Dark Sky Association for warm white options, emphasizing both safety and environmental responsibility. Additionally, the Highland Series complies with the Buy American Act (BAA), ensuring domestic manufacturing standards.
Ideal applications for the Highland Series include large area high mast lighting for roadways, shipyards, container yards, and aviation ramps and aprons. The series also excels in securing sensitive sites such as prisons and military bases, and illuminating expansive industrial facilities and hangars. The combination of rugged construction, superior optical performance, and energy efficiency make the Highland Series a trusted choice for demanding large-scale lighting projects where reliability and operational cost savings are critical.
