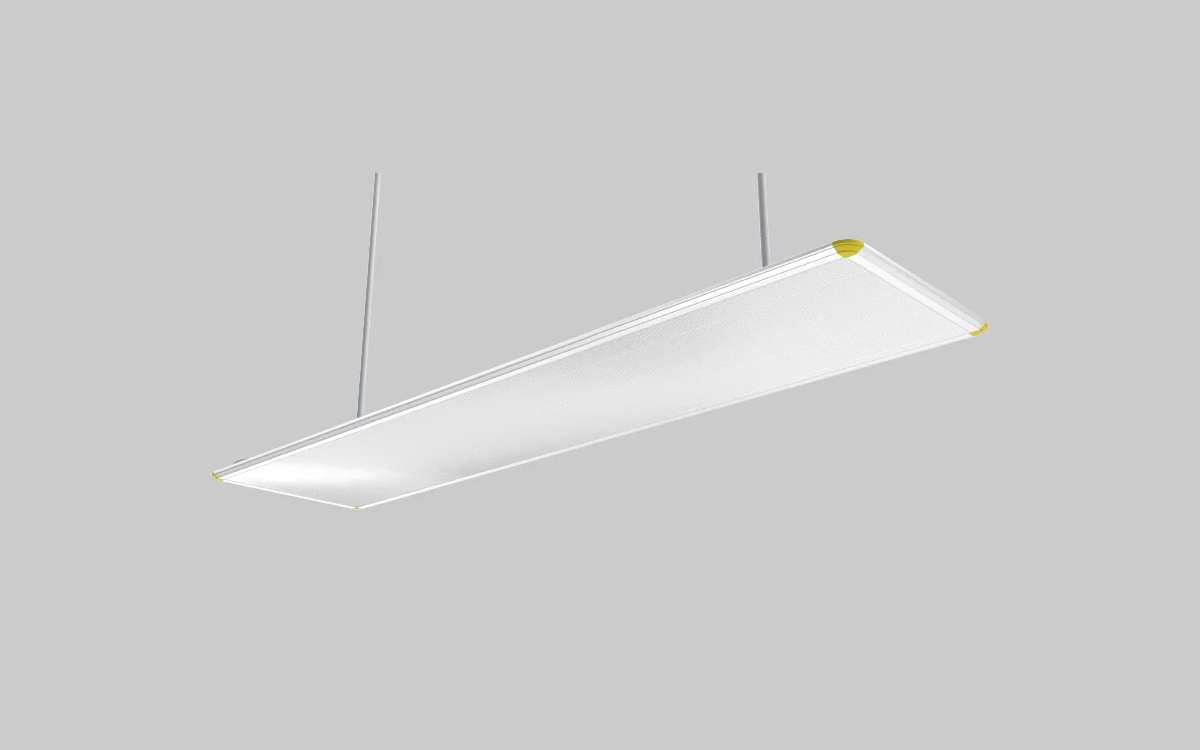

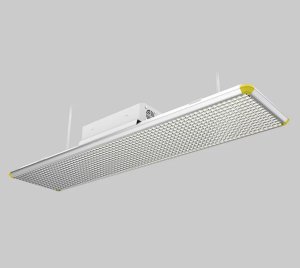

The EXC-JJ07B educational classroom light is an extremely energy-efficient new product designed to replace traditional grid lights. Its unique all-plastic integrated structure maximizes heat dissipation performance, ensuring a long service life for the fixture. This model features a high-efficiency, high color rendering SMD2835 LED light source paired perfectly with a diffusion plate. The addition of a prismatic grille anti-glare cover softens and evens out the light output, effectively eliminating the discomfort caused by glare.
Equipped with an external constant-current driver power supply, the EXC-JJ07B occupies minimal space and is easy to install and use. It ensures instant, flicker-free illumination, making it highly suitable for classroom environments. This lighting solution is designed to meet the specific requirements of educational lighting products, delivering both strong applicability and compliance with classroom lighting standards.
Basic specifications include a voltage of AC220-240V and power consumption of 36W with a power factor of ≥0.95. It offers excellent color rendering with a CRI over 95 and R9 above 90, using full-spectrum LEDs. The luminous flux ranges between 3000 to 3600 lumens with luminous efficacy greater than 85 lm/W. The color temperature options are 5000K or 3700K, with a low color tolerance of ≤3 SDCM and a blue light hazard rating of RG0. Flicker is kept below 1%, and the prismatic anti-glare design ensures comfortable lighting. The light beam angles measure 96° (C0-180) and 93° (C90-270), with a Unified Glare Rating (UGR) under 16 and blackboard surface uniformity greater than 0.8.
This model is pendant-mounted, rated IP40 for protection, and constructed with an aluminum profile combined with a plastic end cap. Its dimensions are 1200mm by 300mm by 45mm, making it a practical, durable, and efficient lighting solution for modern classrooms.
