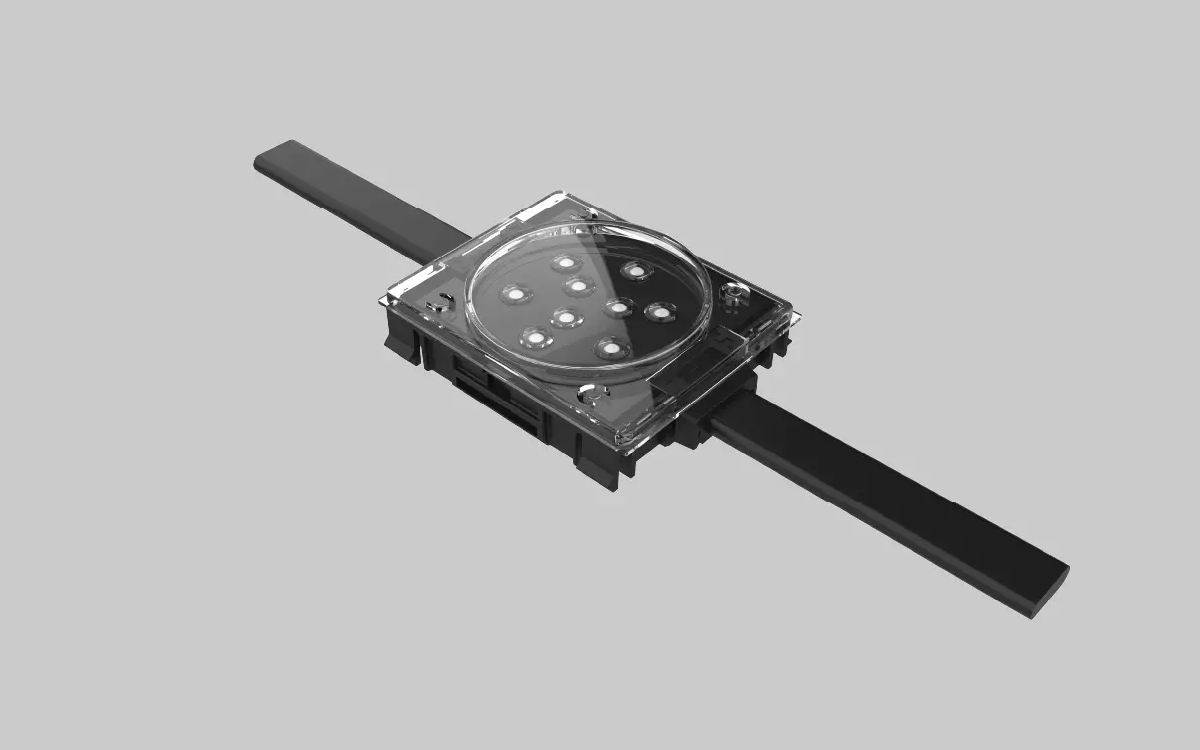

The EXC-P53MA direct view LED pixel light is an individually addressable lighting node designed specifically for outdoor landscape lighting applications. This series features ultra-long distance power supply capabilities and supports cascading loads exceeding 50 meters, making it highly efficient for large-scale installations. Compatible with the intelligent DMX512 control protocol and the international RDM standard, it also includes a global ESTA unique UID number for advanced control and management.
Each LED pixel in the EXC-P53MA series operates independently, allowing for precise control with up to 65,536 levels of grayscale change. The light sources include SMD white LEDs and RGB 3-in-1 LEDs, with customizable pixel spacing to suit various installation needs. The lamp string can accommodate up to 12 points per meter, offering flexibility in design for building facades, contour lighting, and surface decoration both indoors and outdoors.
Constructed from flame-retardant and weatherproof engineering plastic with a PC lens, the EXC-P53MA is built to withstand harsh outdoor environments with an IP66 rating. It operates on a DC 48V power supply, with a maximum power consumption of 2.7W per pixel, and boasts a long lifespan of 50,000 hours. The light also supports high glow and low brightness settings with adjustable gamma curves for enhanced visual effects.
The design incorporates advanced features such as a DMX512 parallel bus system, clip-on/off style connections with anti-pull protection, and a high thermal conductivity transformer sealed with German-imported glue to ensure waterproofing and durability. Additional protections include outdoor lighting safeguards and electrostatic discharge (ESD) resistance. This product offers flexible installation options and supports remote power supply technology at DC 48V, making it a versatile solution for dynamic outdoor lighting projects.
