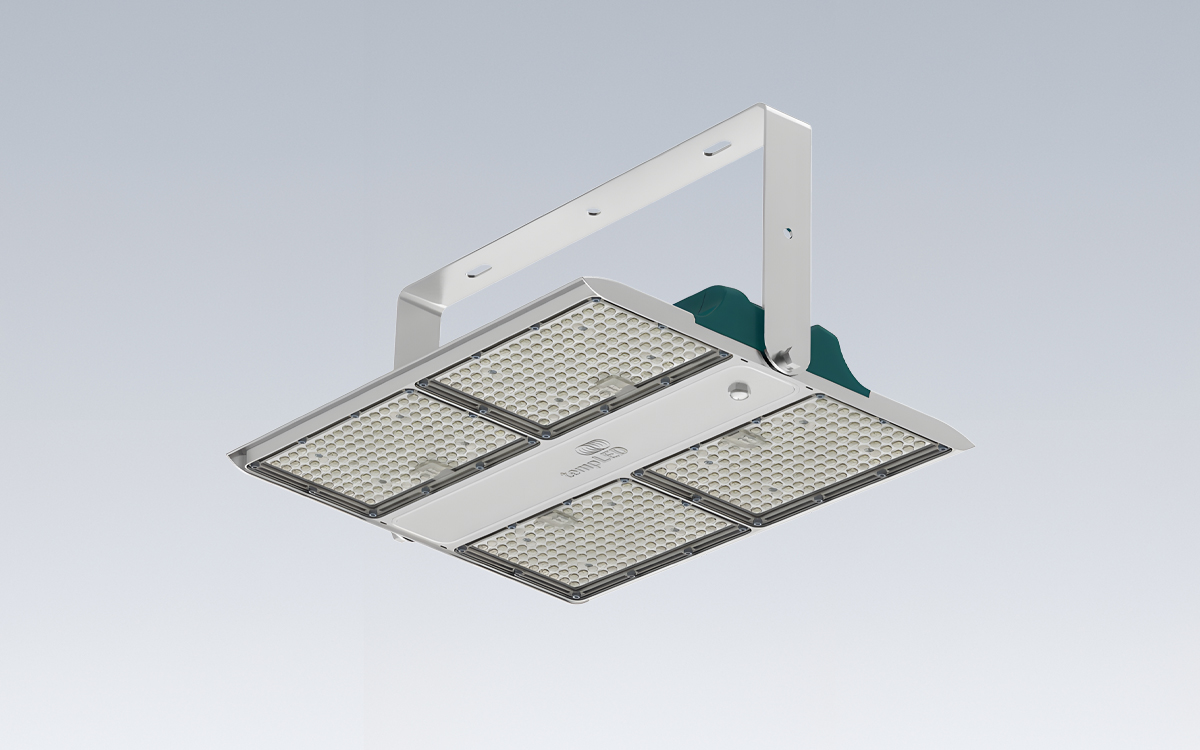

The RayLance V2 high-bay LED light represents a professional lighting solution tailored for industrial and logistics facilities, production halls, and sports venues. Its luminous efficiency of up to 180 lumens per watt ensures powerful and consistent performance even in demanding environments. Certified for ball-impact safety and achieving a Unified Glare Rating (UGR) of less than 16, this luminaire is equally suitable for gymnasiums and sports halls where visual comfort and durability are critical. The RayLance V2’s modular architecture allows for easy maintenance through exchangeable and replaceable components, ensuring long-term functionality and cost efficiency.
The luminaire is powered by a constant-current power supply equipped with integrated DALI-2 dimming and an optional Constant Lumen Output (CLO) function for consistent brightness throughout its lifetime. It employs a robust, impact- and UV-resistant polycarbonate optical system with three available symmetrical beam angles—60°, 90°, and 120°—to adapt to various ceiling heights and area lighting requirements. With its unified glare control design and a smooth, powder-coated aluminum housing surface, the fixture not only enhances lighting precision but also supports easy cleaning and maintenance in environments where hygiene and visibility are key.
The system delivers an initial luminous flux ranging from 13,500 to 26,100 lumens with a color temperature of 4,000 or 5,000 kelvins and a color rendering index (CRI) above 80. Color consistency remains within a 5-step MacAdam ellipse (SDCM), ensuring stable color uniformity across installations. Electrical performance is equally strong, with a power factor above 0.90, total harmonic distortion (THD) below 10%, and integrated protection features such as overvoltage, overheating, and temperature monitoring safeguards. It operates across a wide voltage range of 90–240 V AC or 127–250 V DC and achieves a temperature classification of T5 with a maximum case temperature (Tc) of +90°C.
Built for challenging environments, the RayLance V2 provides ingress protection to IP66 and impact resistance to IK08, ensuring resistance to dust, moisture, and mechanical stress. The die-cast aluminum housing and polycarbonate heat sink components are complemented by a white aluminum finish (RAL 9006) with a water-blue power supply housing (RAL 5021), both protected by a durable powder coating. A pressure compensation membrane prevents internal condensation, extending component life. Operating in ambient temperatures from –30°C to +50°C, the luminaire maintains reliable performance in both cold storage areas and warm industrial spaces.
Control flexibility is a defining feature of this series. DALI-2 dimming is included as standard, allowing for digital light management and compatibility with automation systems. Optional upgrades enable Casambi wireless control for networked lighting environments, daylight-responsive dimming, or integration into human-centric lighting concepts. Emergency lighting modules are also available, providing approximately three hours of backup illumination using LiFePO4 battery technology.
Mounting options are highly versatile, supporting installation via a standard adjustable bracket with a 0–90° range or optional suspension systems. These include 4-point rope suspensions with heights up to three meters, as well as fixed or adjustable double and triple mounting brackets made from stainless steel. Each bracket configuration features scale markings and integrated 5-pole power distribution systems (1-to-2 or 1-to-3) for simplified wiring and multi-unit installation. Ball-impact-safe mounting systems ensure stability and safety in sports or assembly areas where physical impact resistance is essential.
The RayLance V2’s modular design extends to its accessory ecosystem. Available accessories include preconfigured rope suspensions, adjustable stainless-steel bracket systems, Wieland RST20i5 connectors, ready-to-use 5-pin cable extensions, and Casambi control units for Bluetooth-based configuration. Safety plugs with IP44 protection and upgrade packages for compliance with DIN 10500 (HACCP / IFS) standards make the fixture suitable for food and hygiene-sensitive environments. An optional emergency lighting module automatically detects power loss and restores function upon voltage return, providing operational assurance in critical areas.
Certified under ENEC, CE, and RoHS standards and compliant with DIN 10500 (HACCP / IFS) requirements, the RayLance V2 exemplifies reliability and quality assurance. It is classified under energy efficiency class B, reflecting its optimized power usage. With a projected lifespan of approximately 100,000 hours at L70B10C1 and 50,000 hours at L90B10C1, the luminaire ensures enduring performance for industrial and commercial lighting applications. Backed by a five-year full guarantee and a ten-year spare parts warranty, it represents a secure and sustainable lighting investment for any professional installation.
