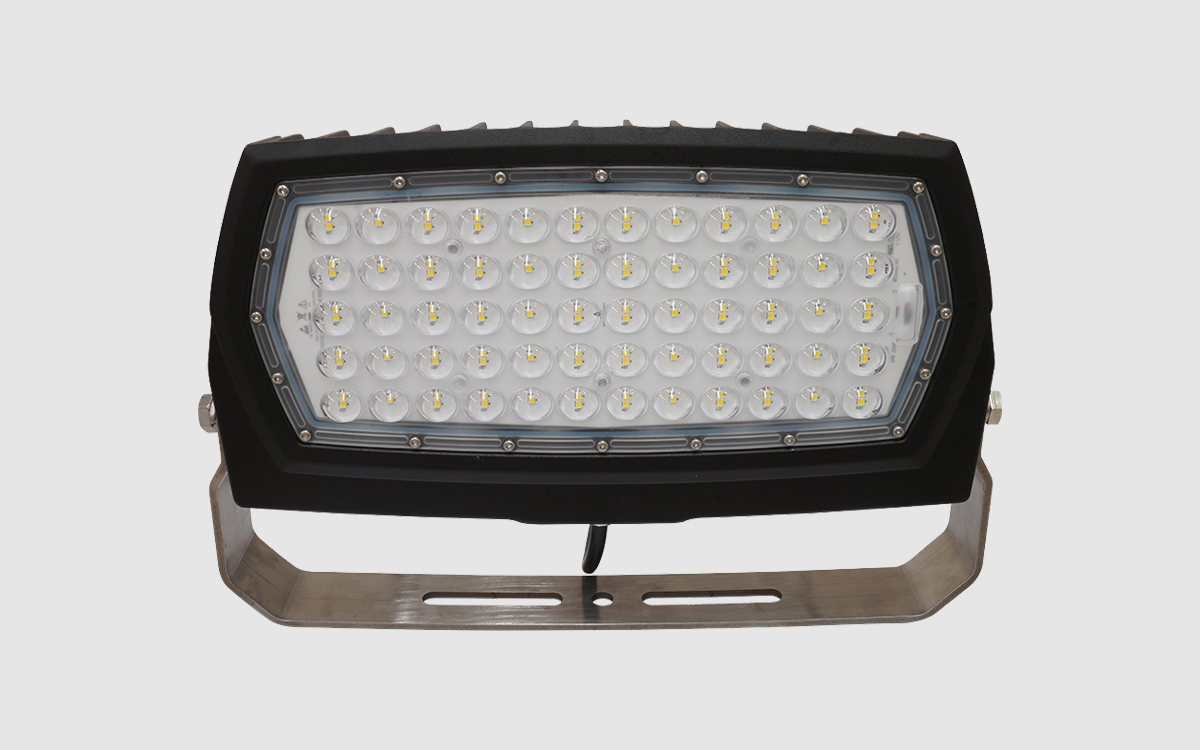

The Midline Flood 2 is a versatile and heavy-duty floodlight engineered to meet the rigorous demands of marine and industrial environments. As a second-generation model, it has earned the trust of leading inland and offshore vessel operators for its dependable exterior deck and waterline illumination. Its robust design also makes it well-suited for applications such as gantries on terminal yard cranes and crane logo lighting, where reliable and powerful lighting is essential.
Constructed from marine-grade aluminum castings, the Midline Flood 2 features corrosion-resistant 316 stainless steel external hardware and an adjustable 316 stainless steel mounting bracket, ensuring long-lasting durability even in harsh saltwater conditions. The fixture is rated IP66 for protection against dust and powerful water jets, and it meets UL1598A standards for marine outside use in saltwater environments. These certifications, along with CSA C22.2 No. 250.0 and CE compliance, underscore the floodlight’s suitability for challenging outdoor and marine applications.
The Midline Flood 2 offers two optic options to provide customizable lighting coverage: a medium flood optic with a beam angle of 35° by 30°, and a wide flood optic with an expansive beam spread of 115° by 80°. Its lumen output is field-adjustable, allowing operators to select from 8,000, 10,500, or 13,000 lumens to tailor illumination precisely to the application’s requirements. The fixture supports wattages up to 90W and operates efficiently on a broad power range from 120V to 347V at 50-60 Hz. It also incorporates a fully potted, isolated driver to enhance electrical protection and reliability.
Designed for extreme operating conditions, the Midline Flood 2 performs reliably within a wide ambient temperature range of -40°C to +55°C and emits light at a crisp 5000K color temperature, ideal for clear visibility in demanding environments. Its rugged construction is complemented by additional certifications including IK08 impact resistance, ABS marine certification, 3G vibration compliance per ANSI C136.31, FCC Part 15 Class A standards for electromagnetic emissions, and RoHS compliance for environmental safety.
This floodlight is commonly deployed for general deck lighting, embarkation zones, deck winch and flank lighting, davits, lifeboat and life raft stations, and deck-mounted cranes on offshore supply vessels (OSV) and platform supply vessels (PSV). It is also widely used in port gantry lighting, crane logo illumination, truck lane lighting, work platform illumination, small area floodlighting, and perimeter lighting on tugboats, push boats, and other marine vessels. The Midline Flood 2’s combination of durability, adaptability, and powerful output makes it an ideal lighting solution across a wide spectrum of marine and industrial applications.
