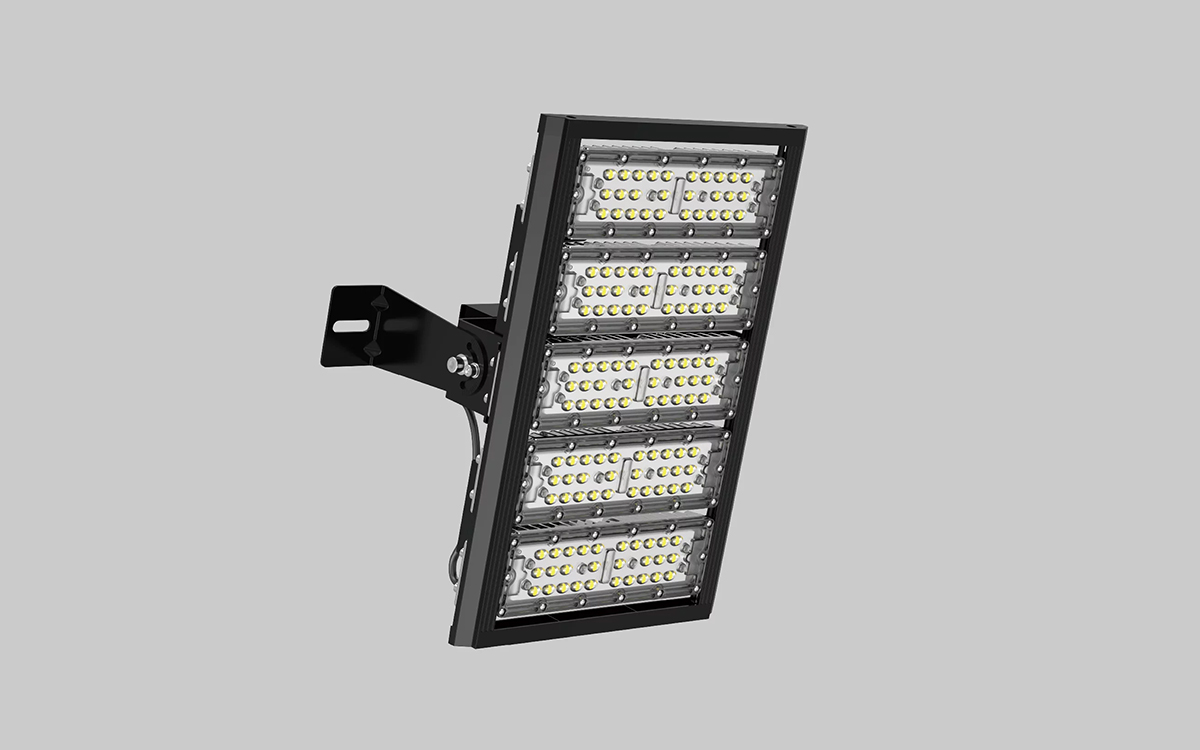

The EXC-TL-Z01 LED Tunnel Light is engineered for durability, efficiency, and versatility in demanding environments. Designed with a waterproof, isolated switching power supply from a reputable brand, it ensures high safety standards and reliable performance. Its modular, serialized design allows for quick maintenance and flexible power expansion, making it suitable for a range of tunnel lighting needs.
The luminaire features an outdoor electrostatic spraying process on the module surface, enhancing corrosion resistance and weather resilience. High-quality imported optical-grade materials are used for the lens, ensuring accurate light distribution, high luminous efficiency, and robust weather resistance. With multiple beam angle options available, the EXC-TL-Z01 adapts well to varied lighting applications. It also supports intelligent control systems such as PLC and 485 protocols and includes Class 1 anti-electrocution protection for added safety.
In terms of specifications, the light is available in multiple power configurations: 100W/120W, 150W/180W, 200W/240W, and 250W/300W. It operates on an input voltage range of AC90–305V at 50/60Hz, with a power factor greater than 0.95. Compatible LED sources include 2835, 3030, and 5050 types. The available color temperatures are 3000K, 4000K, 5000K, and 5700K, with a color rendering index (CRI) above 70. Luminous efficacy ranges from 130 to 180 lm/W, and the fixture offers a long service life of up to 50,000 hours. Constructed with ADC12 and AL6063 materials, the luminaire is IP66-rated for dust and water resistance, performs reliably in temperatures from -40°C to +50°C, and operates in environments with 10% to 90% relative humidity. It is designed for bracket installation.
