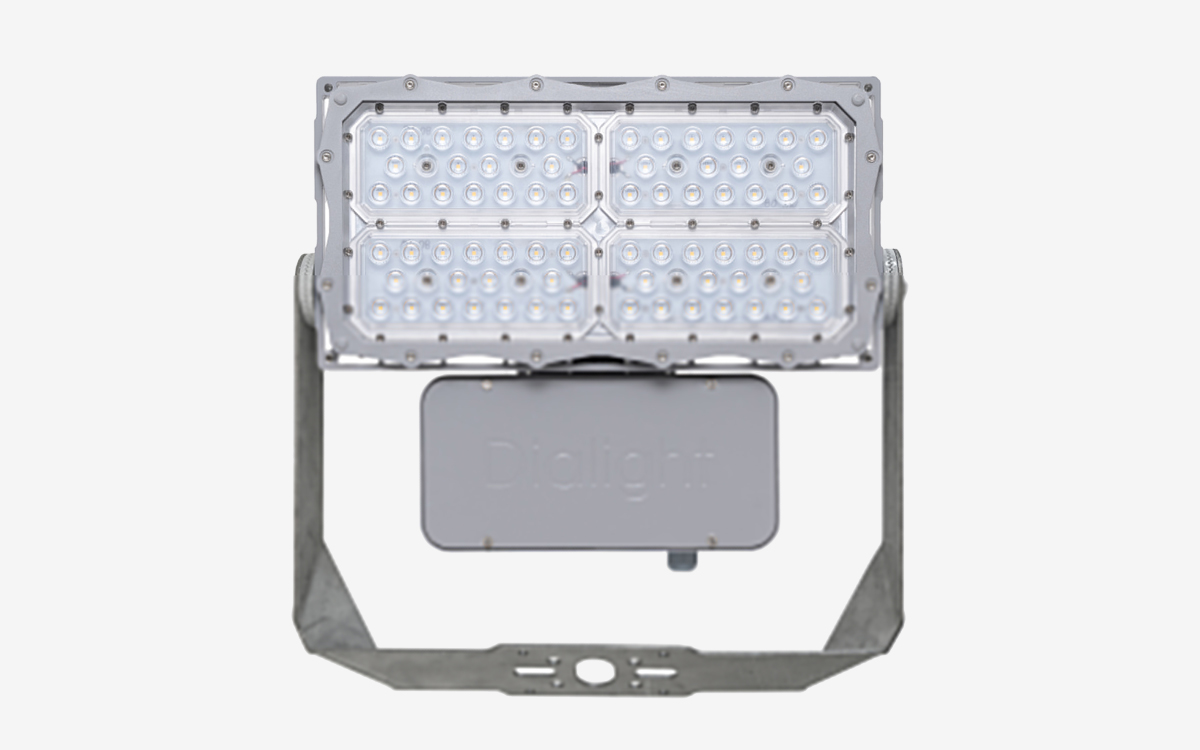

The new ProSite Floodlight is engineered to deliver exceptional performance and durability in the harshest industrial environments. Designed with advanced optics and cutting-edge LED technology, the fixture offers superior illumination while maintaining a sleek and compact profile. It features Dialight’s patent-pending molded optics and chip scale package LEDs to optimize light output and uniformity across large spaces. With models ranging from 12,000 to 65,000 lumens and achieving up to 165 lumens per watt, the ProSite Floodlight is ideal for mounting heights up to 100 feet, providing crisp, near-daylight visibility that enhances operational safety and security.
Purpose-built for demanding sectors such as oil and gas, petrochemical, chemical processing, metals, mining, and heavy industrial operations, the ProSite Floodlight ensures reliable lighting performance in both indoor and outdoor installations. Its rugged construction includes an A360 die-cast aluminum housing with corrosion-resistant 316 stainless steel hardware and a dual-layer epoxy and polyester finish, delivering maximum resilience in corrosive and extreme conditions. The fixture’s design also allows for multiple mounting configurations, including straight and angled stainless steel brackets, heavy-duty options, and a slipfitter compatible with 1-1/4” to 2-3/8” OD poles (UL844 models up to CID2 only). Each mounting solution offers a 7.5° tilt adjustment for optimal aiming.
To suit a wide range of lighting needs, the ProSite Floodlight is available with a selection of beam distributions including NEMA 4, NEMA 6, NEMA 7x6, and asymmetric patterns. Advanced lens options—integrated polycarbonate optic, glass lens cover, or polycarbonate lens cover—ensure performance and protection, with impact ratings of IK10 for PC models and IK08 for glass lens variants. The fixture supports various correlated color temperatures, including cool white (5000K), neutral white (4000K), warm white (2700K and 2200K), and amber, with a standard 70 CRI and an optional upgrade to 80 CRI for improved color rendering in visually demanding tasks.
Designed for global compatibility and reliability, the ProSite operates across a wide input voltage range: 120–277 VAC, 120–250 VDC, and 347–480 VAC at 50/60Hz. It meets stringent electromagnetic compatibility standards (CISPR 15), flicker requirements (IEC 61000-3-3), harmonic distortion limits (IEC 61000-3-2 Class C), and immunity standards for lighting (IEC 61547). Built-in transient protection withstands surges of 6kV line-to-line and line-to-ground, with optional modules available for 10kA or 20kA single-strike surge events. The fixture maintains a low total harmonic distortion (<20%) and a high power factor (>0.9) for efficient power use.
Lighting control is highly flexible with standard support for 0-10 VDC and DALI 1/2 dimming protocols. Additionally, optional wireless control is available via Dialight’s IntelliLED™ system, allowing for advanced lighting management in complex facilities. Operating reliably in temperatures ranging from -40°F to +149°F (-40°C to +65°C), the ProSite Floodlight is well-suited to both extreme cold and high-heat industrial environments. Its environmental and safety certifications include UL 1598/A, UL 844 (CID2, CIID1, CIID2, CIII), CE, ENEC, RCM, CSA, and IECEx/ATEX for Zone 2, 21, and 22 hazardous locations.
With a compact EPA of 0.186 m² and cable entry via dual M25 ports, the fixture is easy to integrate into both new and retrofit installations. The ProSite Floodlight is backed by Dialight’s industry-leading 10-year warranty, ensuring long-term peace of mind and reduced maintenance costs for critical industrial operations requiring dependable, high-performance lighting.
