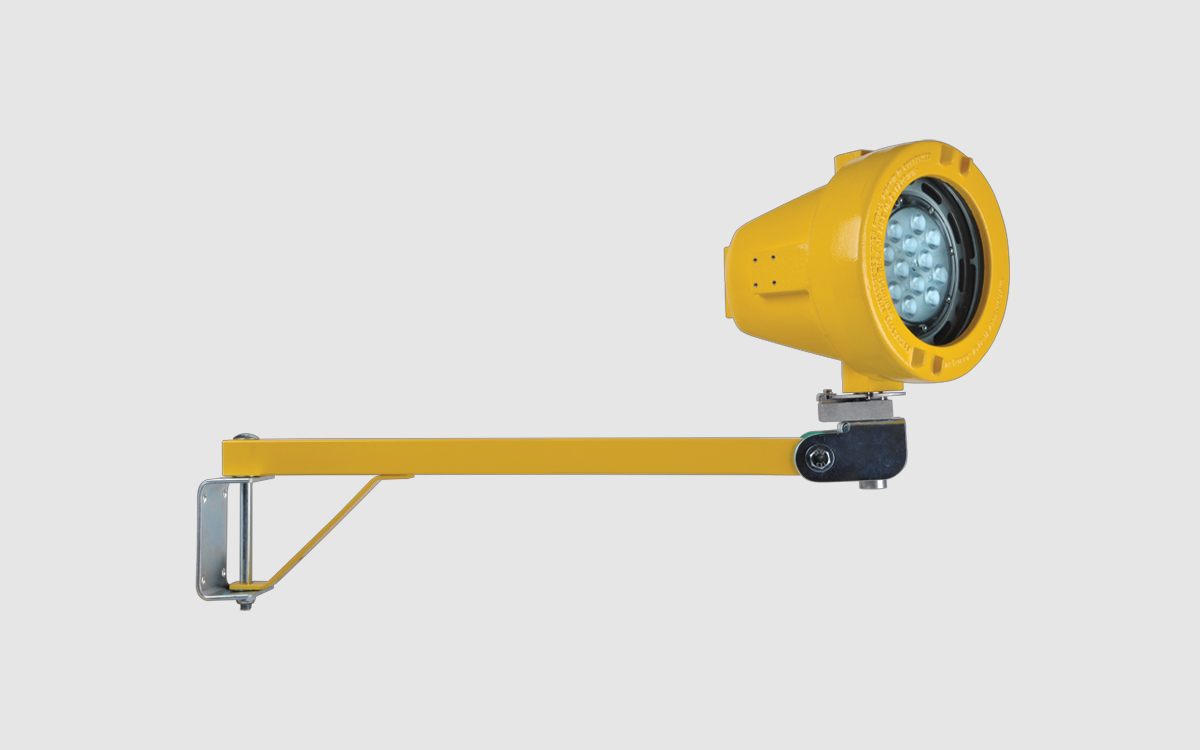

The DLX LED docklite® is a high-performance lighting solution specifically engineered for hazardous locations and demanding industrial environments such as paint booths, chemical plants, loading facilities, and refineries. Designed for unmatched durability, it features a corrosion-resistant, copper-free cast aluminum shell and cover that provide exceptional resilience in extreme outdoor and marine applications, including saltwater environments. The rugged construction ensures consistent, reliable operation even under the harshest conditions, making it a trusted choice for critical lighting needs where safety and dependability are paramount.
This versatile fixture can be paired with Modular docklite® loading dock arms to create a complete, adaptable lighting system. These arms are available in multiple sizes, including 24-inch, 42-inch, and 60-inch single-strut options, as well as 42-inch and 60-inch double-strut configurations, allowing for precise positioning and coverage in a wide range of applications. The DLX is also designed with a 26-inch swing arm made from robust 1.50-inch square steel tubing, offering a horizontal swing of up to 180 degrees. Threaded joints between the shell and cover, combined with a head that rotates up to 230 degrees horizontally and 74 degrees vertically, allow for precise beam placement to target specific work areas.
The DLX LED docklite® delivers powerful illumination with a 44-watt output producing up to 3,800 lumens, available in either a 45° flood beam for broad coverage or a 28° spot beam for concentrated lighting. It uses conformal-coated LED modules rated for 50,000 hours of life and a cool white 5000K color temperature, providing crisp visibility and improved safety in work zones. The fixture includes fully potted, replaceable drivers—two per unit—with integrated over-voltage, over-current, and short-circuit protection to ensure long-term reliability. Operating at 120-277V and 50-60Hz, the DLX maintains a power factor greater than 0.9 for energy efficiency.
Its robust construction extends to a 3/4-inch thick tempered glass lens, zinc-plated hardware, and a yellow thermoset powder-coated finish for enhanced corrosion resistance. The DLX also comes with a factory-sealed wire entrance and six feet of wiring for flexible installation. Mounting is made easy with a 3x5-inch zinc-plated steel bracket, ensuring stability in industrial settings. Designed to perform in ambient temperatures ranging from -20°C to +40°C, it is suitable for year-round operation in varying climates.
The DLX is fully compliant with stringent safety and quality standards, holding ETL/cETL certifications to UL 1598 for ordinary locations, UL 1598A for marine outside type (saltwater), and UL 844 for hazardous locations. It meets Class I, Division 1 Groups C and D; Class I, Division 2 Groups A, B, C, and D; Class II, Divisions 1 and 2 Groups F and G; and Class III, Divisions 1 and 2 requirements, with a T4A temperature rating of 120°C. Additionally, it is CSA C22.2 No. 250.0 certified, NEMA 4X rated, and compliant with both the Buy American Act (BAA) and Build America, Buy America Act (BABA), making it an ideal choice for projects that require domestically manufactured equipment with proven performance and durability.
