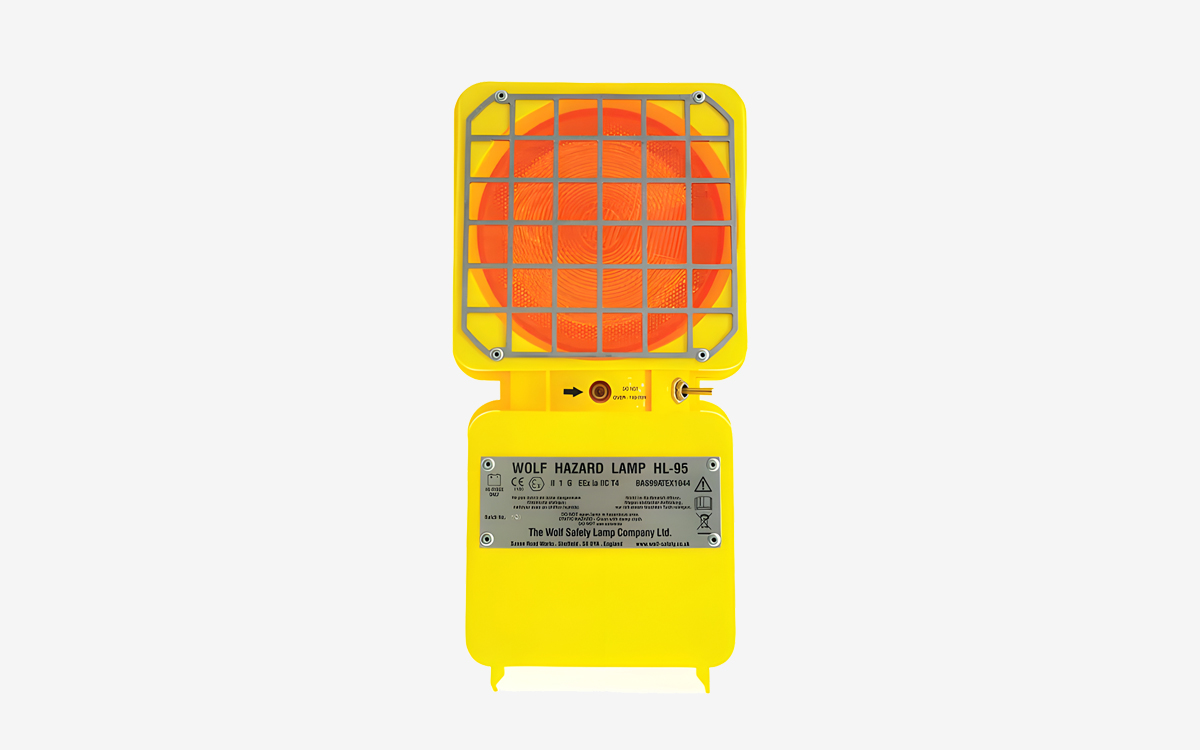

The HL-95 Hazard Lamp is a semi-portable, free-standing illuminated warning device specifically engineered for use in potentially explosive atmospheres. Fully CE-marked and certified to the ATEX directive, the HL-95 is approved for safe operation in hazardous areas classified as Zones 0, 1, or 2. Its intrinsically safe design (protection type “Ex ia”) meets stringent safety standards for use in environments with gas groups IIA, IIB, and IIC, and carries a temperature classification of T4, allowing for reliable function in ambient temperatures ranging from -10°C to +40°C. The lamp is certified under BAS 99 ATEX 1044X and clearly marked with Code II 1 G Ex ia op is IIC T4 Ga.
Power for the HL-95 is supplied by a high-capacity, air-depolarised primary cell battery, which delivers remarkable longevity from a compact, lightweight power source. In flashing mode, the lamp can run continuously for up to 1,500 hours—equivalent to approximately two months of operation. In static mode, where the lamp remains steadily illuminated, the battery life extends up to 500 hours. All operational settings, including on/off and mode selection (flashing or static), are controlled via a three-position toggle switch mounted externally on the unit for easy access.
Further extending the operational life, the HL-95 includes a daylight cut-out function, enabled by an internally located switch. When activated, a light-dependent resistor (LDR) automatically turns the lamp on at dusk and off at dawn, conserving energy during daylight hours. In this energy-efficient mode, with the lamp set to flash and enabled with daylight cut-out, a single battery could potentially power the lamp for up to six months.
The HL-95 features a robust bi-directional lens configuration, with two lenses positioned back-to-back to provide 180-degree visibility and ensure effective signaling from multiple angles. Each lens delivers a light output greater than 2 candela, powered by a pair of highly durable, amber-colored light-emitting diodes (LEDs). These solid-state light sources are engineered for longevity and stability, offering reliable illumination without the need for frequent maintenance or replacement.
The entire assembly is housed in a static-dissipative polypropylene body, providing excellent resistance to impact and static buildup, both of which are crucial for safe operation in explosive environments. The transparent plastic lenses are protected by a stainless steel guard that enhances durability and shields the light-emitting components from damage in harsh industrial settings.
Ideal for marking obstacles, defining hazardous zones, or enhancing visibility in critical environments, the HL-95 Hazard Lamp is a highly dependable tool for improving safety in areas where explosive gases or vapors may be present. Its long battery life, dual-mode functionality, daylight-sensing capabilities, and rugged construction make it an invaluable solution for long-term hazard marking in challenging conditions.
