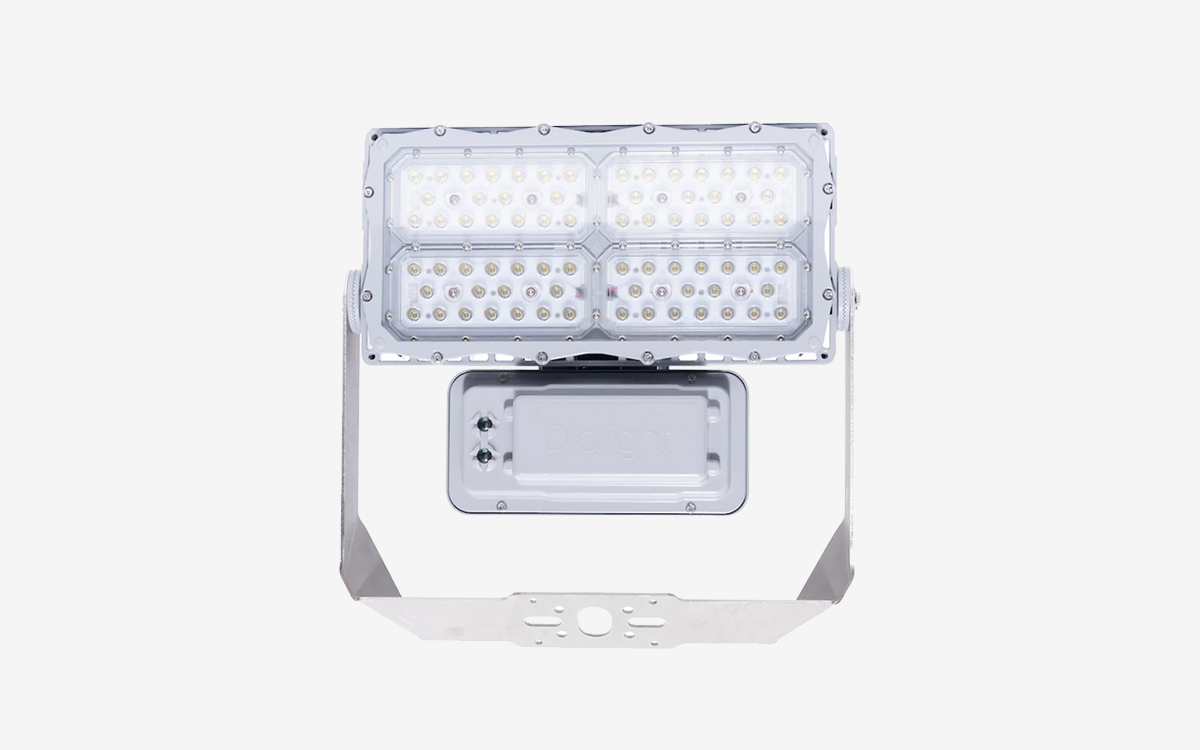

The Battery Backup ProSite Floodlight delivers a powerful combination of rugged, high-performance lighting with integrated emergency capability, making it an ideal solution for safety-critical and high-risk environments. Engineered as an extension of the trusted ProSite range, this fixture includes a built-in 10W NiMH battery that ensures up to 180 minutes of reliable illumination during power outages, supporting safety and compliance in areas prone to electrical instability. It is particularly suited for applications such as building exits, egress routes, muster points, site perimeters, and other locations where dependable emergency lighting is essential.
Available in lumen outputs ranging from 12,000 to 30,000 lumens, the Battery Backup ProSite Floodlight offers exceptional efficacy of up to 165 lumens per watt and a wide selection of beam distribution patterns, including NEMA 4, NEMA 6, NEMA 7x6, asymmetric, and asymmetric wide options. Multiple correlated color temperature (CCT) configurations are available to meet specific visual and aesthetic needs, including cool white (5000K), neutral white (4000K), warm white (2700K and 2200K), and amber, with a standard CRI of 70 and an optional 80 CRI upgrade for enhanced color rendering. The luminaire is constructed with a die-cast A360 aluminum housing and features a superior dual-layer epoxy and polyester coating for long-term durability. Lens options include an integrated polycarbonate optic, glass lens cover, or polycarbonate lens cover, all designed to withstand harsh operating environments.
This floodlight is rated for operation in ambient temperatures from -4°F to +131°F (-20°C to +55°C) and delivers robust protection and endurance across a range of challenging conditions. The unit is tested to meet EMC and flicker standards including CISPR 15, IEC 61000-3-3, IEC 61547, and IEC 61000-3-2 Class C. It features standard surge protection (6kV line-to-line and line-to-ground), with optional upgradeable modules for 10kA and 20kA single-strike protection. Additional electrical specifications include a power factor greater than 0.9 and total harmonic distortion (THD) of less than 20%. The luminaire operates on 120-277 VAC, 50/60 Hz and supports both 0-10 VDC dimming and DALI 1 and 2 protocols, with optional IntelliLED™ wireless dimming capabilities.
Mounting flexibility is a key strength of the Battery Backup ProSite Floodlight, with several corrosion-resistant 316 stainless steel bracket options available, including straight, angled (each with a 7.5° tilt adjustment), heavy-duty, and a slipfitter bracket compatible with 1-1/4” to 2-3/8” OD poles (UL844 models up to CID2 only). The fixture supports dual ¾” NPT cable entries for ease of installation. Its rugged design is further reinforced by its IK10 impact rating for models with integrated PC optics or lens covers, and IK08 rating for versions with glass lens covers. It also includes a default 90-minute emergency duration, with field-selectable options for 60 or 180 minutes depending on project needs.
Certified to meet UL 1598/A, UL 844, UL 924, CE, ENEC, and RCM standards, the floodlight is pending approval for ATEX/IECEx Zone 2, 21, and 22 hazardous area applications, ensuring it meets stringent global safety and performance benchmarks. With its long-life design, comprehensive protection features, and Dialight’s renowned 10-year warranty, the Battery Backup ProSite Floodlight is a versatile and highly reliable lighting solution for demanding industrial environments.
