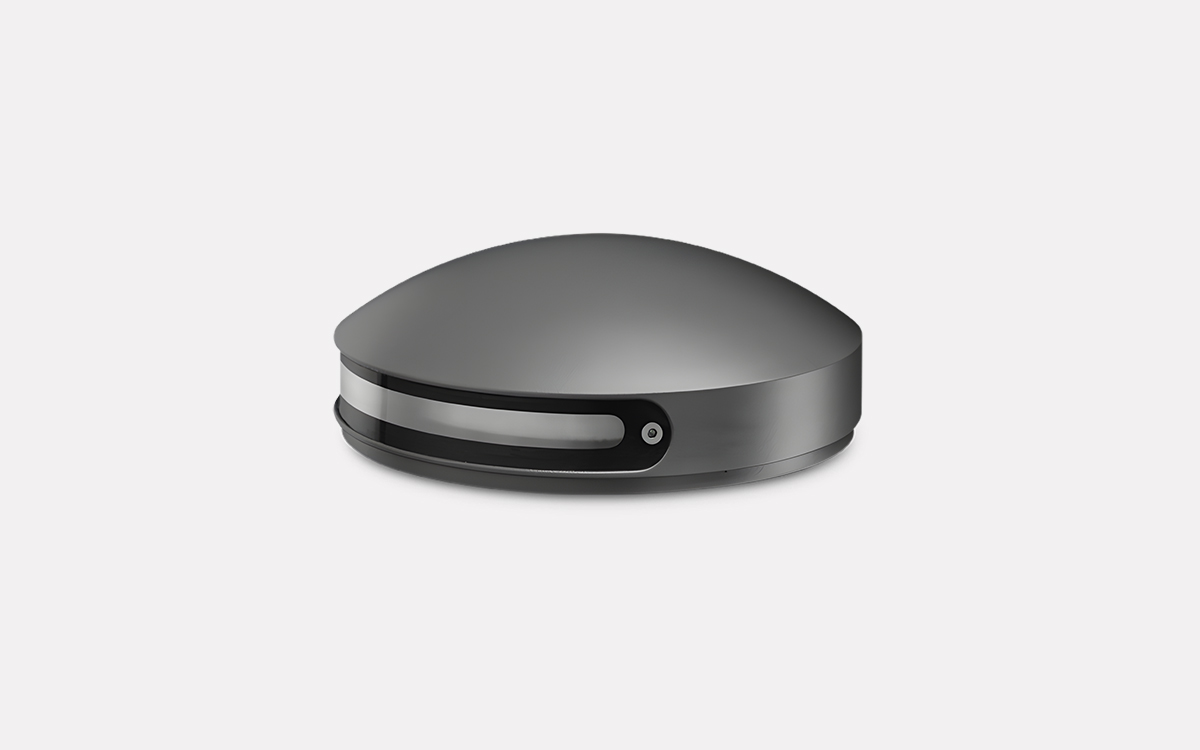

The EFC120 LED is a robust in-ground marker light engineered for architectural applications requiring durability, precision, and visual comfort. Designed with a stainless steel inground section and a die-cast dome made from marine-grade aluminium alloy, it offers high corrosion resistance with a 5CE protective coating and PCS polymer-coated stainless steel hardware. The fixture is rated IP67 and IK09, making it suitable for challenging outdoor environments with resistance to dust, water ingress, and mechanical impact.
The luminaire features a factory-sealed termination chamber equipped with a cable gland and 1.5 meters of flexible, PVC-free cable. An IP68 in-line connector allows for easy disconnection and off-site lamp replacement without disrupting the installation. Inside, an integral EC electronic converter is housed in a thermally separated compartment for long-term performance and reliability. The gear and lens tray are designed for tool-free removal, enabling fast maintenance and upgrades. CAD-optimized optics ensure precise light distribution with excellent glare control, while the factory-installed LED circuit board guarantees consistent quality.
The EFC120 offers controlled beam light distribution in both one-sided and two-sided configurations, making it ideal for pathway guidance, edge marking, and architectural delineation. It supports a range of color temperatures including 2700 K, 3000 K, and 4000 K, with an optional ultra-warm 2200 K version available upon request. All units include a preconfigured installation blockout for direct embedding into concrete surfaces, simplifying installation in permanent exterior settings.
The fixture is suitable for areas with occasional low-speed vehicular access but is not intended for normal road traffic, particularly in conditions involving abrupt braking, turning, or acceleration, which may result in damage.
Finishing options include a range of RAL colors such as Signal Black (RAL9004), White Aluminium (RAL9006), Grey Aluminium (RAL9007), Anthracite Grey (RAL7016), and Traffic White (RAL9016), offering design flexibility for blending into different architectural styles. Powered by a 220–240V 50/60 Hz supply, the system maintains a power factor greater than 0.9 and includes basic surge protection (1/2 kV). The EFC120 stands as a dependable solution for high-performance exterior lighting with minimal maintenance and elegant form.
