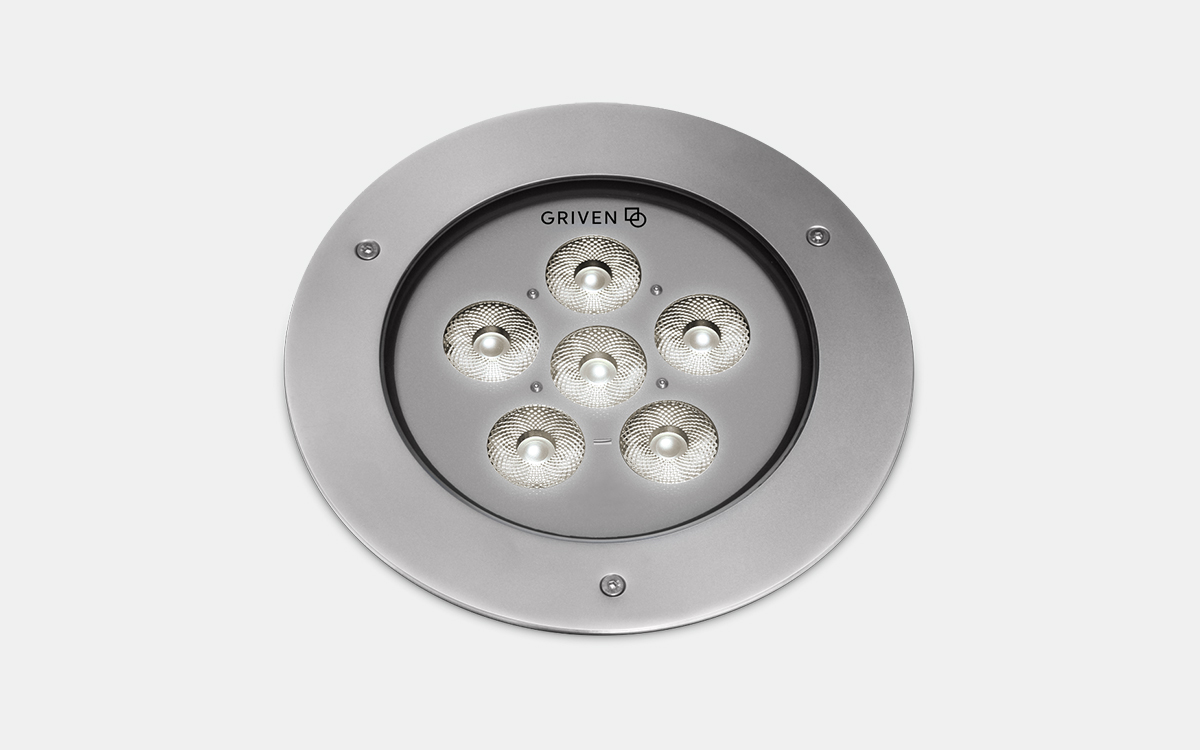

RUBY MC R DW is a high-performance exterior recessed uplighter engineered for demanding architectural applications, delivering powerful and flexible lighting from a compact form. Designed with a shallow recessed depth, it enables comfortable in-ground installation, making it ideal for both spot lighting and wall grazing effects across architectural facades and landscape features.
Equipped with dynamic white multichip LEDs, the fixture offers a tunable color temperature range from 3000K to 6500K, ensuring seamless light distribution and smooth white transitions. Its optical precision is enhanced by a selection of beam angles, including spot, narrow, medium, and wide, enabling tailored lighting effects based on project requirements.
With a robust IP67-rated enclosure and a deadweight load resistance of up to 2000 kg, RUBY MC R DW is suitable for use in drive-over applications, including vehicular areas. It is available in a Polar Edition that includes an integrated de-icing system with electrically heated glass, ensuring reliable operation even in extreme cold weather conditions.
The fixture operates on a wide input voltage range of 100–277VAC and consumes 53W of power. It supports DMX-RDM and optional remote wireless data control for flexible integration into advanced lighting systems. With a maximum delivered luminous output of 3896 lumens at 74 lm/W, this compact uplighter delivers both performance and durability in demanding outdoor environments. Formwork for installation is available separately.
