The 6330LED Nevada is a medium-scale vintage post-top lantern designed to replicate the charm of a classic gaslight while integrating modern LED technology. Its distinctive roof style and one-piece spun aluminum top with a white reflective underside create both visual appeal and functional efficiency. The luminaire’s cast aluminum lens holder, crafted from 356 alloy for high tensile strength, ensures a solid and durable structure. Together, these details capture the character of a historic streetlight while delivering contemporary performance.
The housing is built from precision-cast aluminum parts, providing structural integrity and longevity in demanding outdoor environments. The aluminum fitter secures the lantern with four stainless steel Allen-head set screws, accommodating a 3-inch outer diameter by 3-inch tall tenon for reliable mounting. Stainless steel hardware is standard, with finishes coordinated through a black oxide conversion coating on dark finishes or uncoated hardware on lighter colors such as white and silver, ensuring a consistent and polished presentation.
Lighting comfort is addressed through several optical options. The lantern can be equipped with an internal diffusing dome lens for a softer appearance. Choices include a lightly diffused acrylic dome lens (SV1D) or a moderately diffused version (SV2D), both recommended when paired with a clear exterior lens but also compatible with other lens types. For further glare control, the SoftVue™ lens option delivers optimal visual comfort. A decorative frosted hourglass-shaped opal glass Hurricane Chimney mounted on a brass holder adds an additional layer of vintage charm inside the lantern, evoking the glow of a historic gas lamp while enhancing the traditional styling.
The LED system is designed for reliability and efficiency. Each luminaire incorporates high-output, high-brightness chip-on-board LEDs assembled within a recyclable, RoHS-compliant two-piece housing free of hazardous materials such as lead or mercury. The system is fully shielded in a downward orientation to maximize efficiency and minimize glare. LEDs are available in 4000K as standard, with optional color temperatures of 2700K, 3000K, 3500K, or 5000K to suit project needs, all with a minimum color rendering index of 70. Custom CCTs are available upon request. Tested in accordance with IESNA LM-79 and TM-21 standards, the LEDs deliver lumen maintenance beyond 100,000 hours, maintaining over 70 percent of initial output at 25°C.
Advanced optical control ensures flexibility for different applications. Individual refractor optics are applied to each LED to achieve precise light distribution patterns in Types II, III, IV, or V per IESNA classifications. For installations requiring additional light control, an internal house-side shield option offers a 120-degree spun aluminum panel, painted to match the fixture, which effectively reduces backlight.
The LED driver system enhances efficiency and longevity. The UL-recognized, high-efficiency driver is installed remotely in the arm, pole, or base, depending on the configuration. It operates on 50/60 Hz, functions as a constant current design with DC voltage output, and features protection against overload, overheating, and short circuits. The driver incorporates surge protection in line with IEEE/ANSI C62.41.2 guidelines, covering line-ground, line-neutral, and neutral-ground pathways. With a power factor greater than 0.9 and a total harmonic distortion below 20 percent, the system ensures clean, reliable power performance. Dimming is supported via 0–10V controls, and a Fixed Dimming Resistor Board option allows fine-tuned light output adjustment across ten field-selectable steps from 25 to 100 percent.
The exterior finish of the luminaire undergoes Sternberg Lighting’s six-stage polyester powder coat paint system. This process exceeds AAMA 2604, AAMA 2605, ASTM D523, and ASTM D4214 standards, ensuring color retention and resistance to environmental stresses. Traditional colors such as Black, White, Park Green, Architectural Medium Bronze, and Dark Bronze are available in smooth or textured finishes, allowing the lantern to be tailored to its surroundings while accentuating its decorative details. Each part is individually inspected to ensure a premium, long-lasting surface quality.

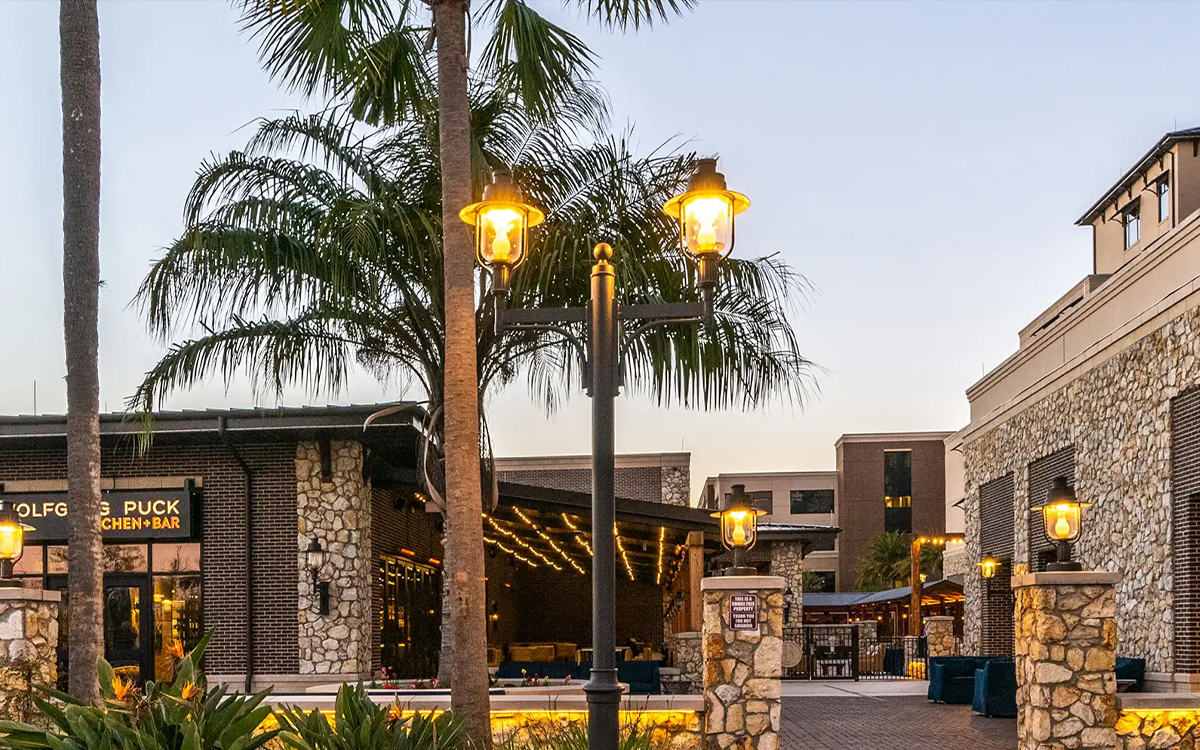

The 6330LED Nevada is UL listed under UL1598 and CSA C22.2 No. 250.0 for use in the United States and Canada, certified for wet locations to ensure safe performance in outdoor applications. The luminaire is backed by a seven-year limited warranty, underscoring its long-term reliability. Combining vintage styling reminiscent of seventeenth-century lanterns with modern optical technology and robust construction, this fixture offers a timeless solution for illuminating parks, campuses, city streets, and public plazas with elegance and efficiency.
