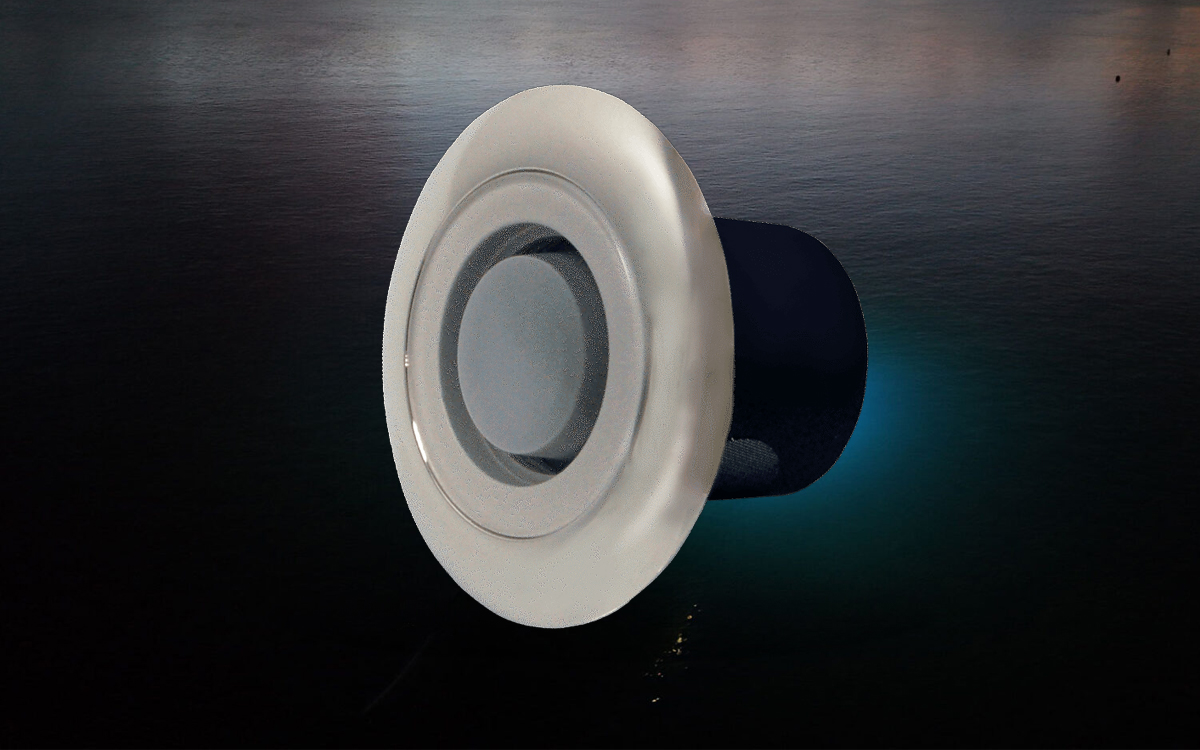

The LUX CL25 Courtesy Lights are designed to elegantly illuminate exterior walkways, stairways, and architectural features of a boat while enhancing ambiance with a warm, welcoming glow. These lights are as functional as they are stylish, creating comfortable lighting environments that improve both aesthetics and safety on board.
Each CL25 unit delivers full-spectrum CRGBW output, combining cold white, red, green, blue, and warm white light within a single fixture. The color temperature is tuneable from 2700K to 6500K, offering precise customization for various moods and settings. Whether you need vivid accent lighting or subtle, warm tones, the CL25 adapts with ease.
Engineered for marine environments, the CL25 is completely sealed and rated IP68, making it suitable for both indoor and outdoor installation. Its robust construction ensures resistance to water ingress, making it ideal for exposed or demanding locations on yachts and other marine vessels.
Operation is seamless, with standard dimming functionality and control via a momentary switch. Users can also opt for enhanced integration with compatible Multifunction Displays (MFDs) or Lumishore Displays for advanced lighting control and automation.
The CL25 features a compact 45mm front bezel and requires only a 25mm hole for fitting. Installation is straightforward using screw fixings, and up to 16 courtesy lights can be powered and controlled from a single LUX Light Control Module. With a wide supply voltage range from 10.5 to 31V DC and a low current draw of just 0.1A (or 0.05A depending on configuration), the CL25 is energy-efficient and well-suited to modern marine lighting systems.
