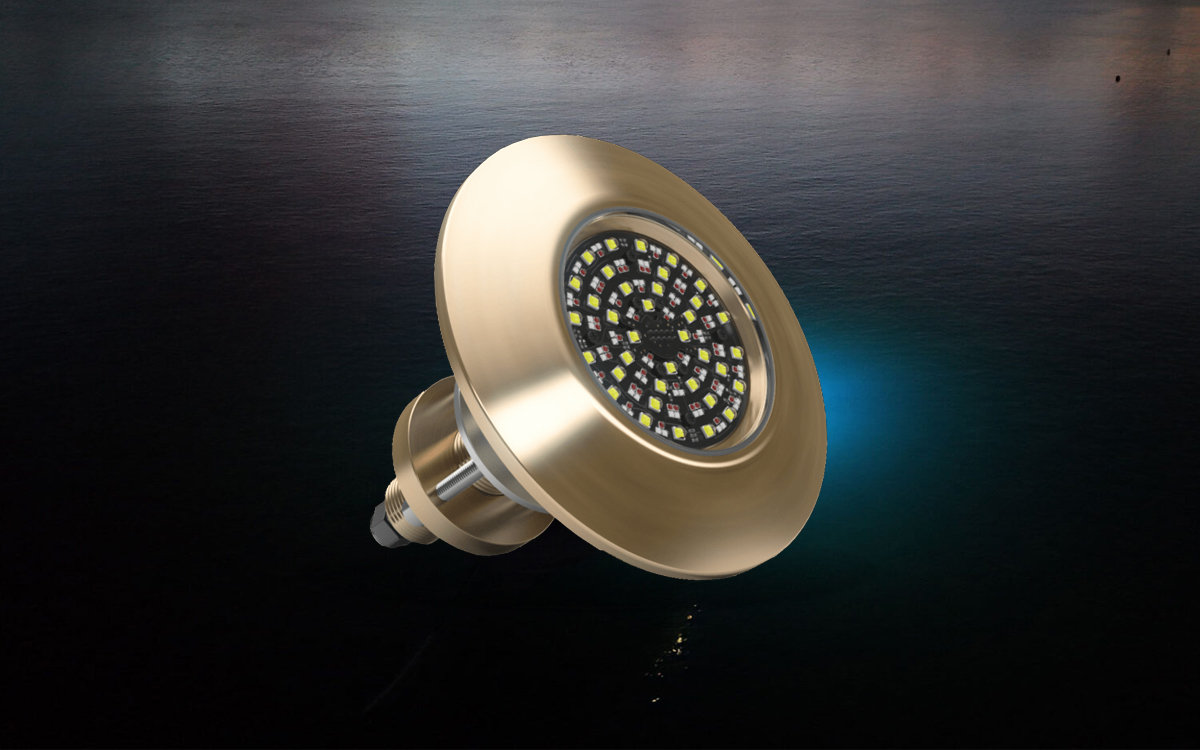

Lumishore's THX1604 underwater light delivers an impressive 17,500 verified fixture lumens paired with an ultra-wide 110° beam angle, creating a stunning halo effect that enhances any marine environment. This model is designed with a flush-fit, extremely low profile and features a standard 1-inch fitting along with an external multi-channel driver, making it suitable for versatile mounting options including transom, side, and bottom installation.
The THX1604 supports full-color change with an EOS RGBW LED array, offering a total luminous output of 39,375 lumens. Its LED configuration consists of 36 white LEDs at 10 watts each, 36 green and 36 blue LEDs at 3 watts each, and 48 red LEDs at 3 watts each, all powered by a high-intensity CoB (Chip on Board) array. The LEDs are rated for a typical lifespan exceeding 50,000 hours. Constructed from marine-grade aluminum bronze, the housing ensures durability and longevity in demanding aquatic conditions. It operates on a 24 V DC supply voltage with an AC option available and draws a maximum current of 6.5 amps.
Users can control colors, modes, and special effects directly from their multifunction display (MFD) or through an optional Lumishore Display. The system offers an extensive range of customizable features including synchronized lighting, adjustable color cycles and sweeps with speed control, fixed and random strobe effects, programmable scenes, and the ability to save favorite settings. Additional capabilities include Wi-Fi control via a dedicated app, sound-to-light synchronization, brightness adjustment, and automatic light discovery and setup, providing a seamless and intuitive user experience.
