Four-Button Wireless 0-10V Dimmer Switch with Scene Recall and Bluetooth Mesh Lighting Control Integration

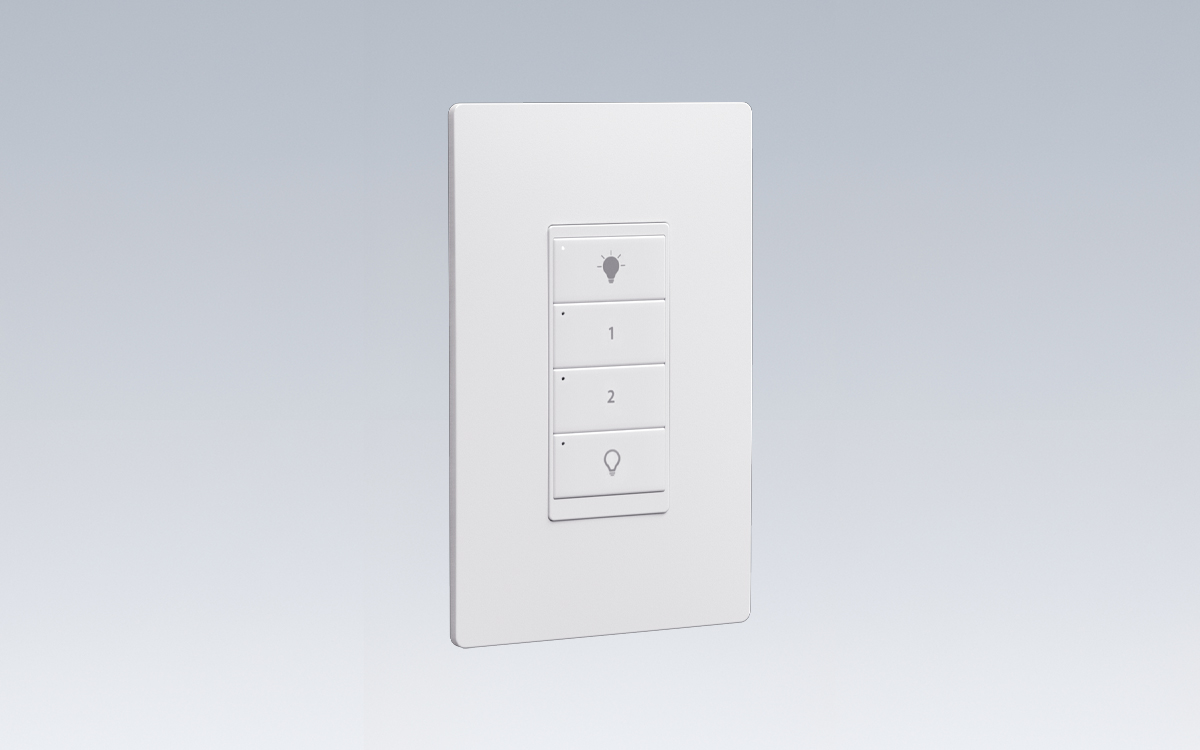

The 0-10V dimmer switch is a four-button wireless keypad that combines flexibility, convenience, and modern control capabilities in a compact design. Each of the four buttons can be configured to perform multiple functions—turning luminaires on and off, dimming them up or down, or recalling preset lighting scenes for specific environments or activities. A small integrated LED indicator provides visual feedback of the active status and, when the keypad is connected to mains power, serves as a subtle guide light for nighttime identification.

Built on Bluetooth Mesh wireless technology, the 0-10V dimmer switch ensures reliable connectivity and seamless integration within a networked lighting control system. It supports an AC input range of 110 to 277VAC at 47–63Hz and includes relay switching capability rated at 5 amps for 120VAC and 3 amps for 277VAC. Designed for versatile installation, the switch can be recessed-mounted within a J-box—preferably non-metallic—or surface-mounted using an additional spacer. Measuring 1.75 x 1.31 x 4.13 inches (44.4 x 33.2 x 105 mm), it is compatible with standard single-gang wall boxes, making it suitable for both new construction and retrofit projects. The operating temperature range of 32°F to 122°F ensures reliable performance in typical indoor environments.

The 0-10V dimmer switch is also easily reconfigurable through the BubblyNet App, enabling quick adjustments to lighting zones, dimming levels, or scene settings without the need for rewiring or complex programming. This simplicity, combined with its wireless design, makes it an ideal control solution for offices, hospitality spaces, and other commercial interiors. By providing precise lighting control, including the ability to adjust brightness levels and recall tailored lighting scenes, the dimmer enhances comfort, user experience, and energy management. Whether implemented in a new system or retrofitted into an existing one, the 0-10V dimmer switch delivers a cost-effective and modern approach to intelligent lighting control.

https://bubblynet.com/0-10v-dimmer-switch.html
Click to expand...
Splendor
  • Wireless Bluetooth Mesh 0-10V Lighting Control Keypad with On-Off and Dimming Functionality for Commercial Interiors
  • Compact Four-Button Lighting Control Keypad with Scene Recall and Wireless Bluetooth Mesh Connectivity
  • Smart 0-10V Dimmer Switch for Offices and Hospitality Spaces with Recessed or Surface-Mount Installation Options
  • Wireless 0-10V Wall-Mounted Keypad for Precision Lighting Control and Seamless Integration into Existing Systems
  • Bluetooth Mesh Lighting Control Switch with Scene Recall and LED Status Indicator for Modern Environments
  • Four-Button 0-10V Dimming Switch with LED Indicator for Adaptive Scene Management and Mood Control
  • Low-Profile Wireless Keypad for 0-10V Dimming Control with Easy Configuration Through the BubblyNet App
  • Multi-Function 0-10V Lighting Control Switch for Scene Recall and Brightness Adjustment Across Networked Systems
  • Reconfigurable Wireless Lighting Keypad for Modern Workspaces with Scene Selection and Dimming Capabilities
  • 0-10V Dimmer Switch with LED Indicator and Bluetooth Mesh Connectivity for Streamlined Lighting Management
  • Wireless Bluetooth Mesh Keypad with Four Customizable Buttons for Full 0-10V Dimming and Scene Control
  • Wall-Mounted 0-10V Dimmer Keypad with Scene Recall and Wireless Integration for Smart Lighting Environments
  • Wireless 0-10V Lighting Controller with Scene Recall and LED Feedback for Commercial Lighting Applications
  • Four-Button Bluetooth Mesh Lighting Keypad for Seamless 0-10V Control and Configurable Scene Selection
  • Compact Wireless 0-10V Dimmer for Networked Lighting Control Systems in Offices and Hospitality Interiors
  • Bluetooth Mesh Wall Control with Adjustable Brightness and Scene Recall for Modern Smart Lighting Systems
  • Elegant Wireless 0-10V Dimmer Switch with LED Indicator for Flexible Lighting Scene Customization
  • Recessed-Mount Bluetooth Mesh Dimmer Keypad for Versatile Lighting Control and Scene-Based Adjustments
  • Four-Button Wall Control Panel for 0-10V Dimming with Scene Recall and Bluetooth Mesh Compatibility
  • Smart Wireless Lighting Control Keypad with Scene Recall and Dimming Precision for Architectural Applications
  • 0-10V Dimming Keypad with Four Configurable Buttons for Personalized Scene Management in Connected Spaces
  • Wireless Bluetooth Mesh Lighting Control Interface with Scene Recall for Energy-Conscious Commercial Interiors
  • Wall-Mounted 0-10V Dimmer Keypad with LED Status Indicator and App-Based Configuration Flexibility
  • Compact Wireless Lighting Control Keypad for Smooth 0-10V Dimming and Multi-Scene Selection Functionality
  • Smart Control Keypad for 0-10V Dimming with LED Indicator and Seamless Bluetooth Mesh Network Integration
  • Four-Button Wireless Wall Control for Networked 0-10V Lighting Systems in Offices and Hospitality Environments
  • Bluetooth Mesh-Enabled 0-10V Dimmer Keypad with Intuitive Scene Recall and LED Identification Indicator
  • Sleek Wireless 0-10V Lighting Keypad with Scene Recall for Architectural, Office, and Hospitality Applications
  • Wireless Wall Control for Precision 0-10V Dimming and Scene Selection Across Bluetooth Mesh Lighting Systems
  • Four-Button Bluetooth Mesh Wall Keypad for Multi-Zone Lighting Management and Scene-Based Control
  • Compact 0-10V Dimming Control Interface for Smart Lighting Networks and Adaptive Scene Configurations
  • Wireless 0-10V Dimmer Wall Switch with Bluetooth Mesh Connectivity for Seamless System Integration
  • User-Friendly 0-10V Lighting Control Keypad with LED Indicator and Wireless App-Based Configuration
  • Multi-Scene 0-10V Dimmer Switch with Bluetooth Mesh for Connected Office and Hospitality Lighting Systems
  • Wireless 0-10V Lighting Control Keypad for Recessed or Surface-Mount Installations in Modern Interiors
  • Customizable Wireless 0-10V Dimming Switch with Scene Recall for Adaptive Lighting in Smart Environments
  • Bluetooth Mesh 0-10V Wall Keypad with Scene Recall and LED Identification for Contemporary Lighting Systems
  • Four-Button Wireless 0-10V Lighting Control Switch for Commercial and Architectural Lighting Applications
  • Modern 0-10V Dimmer Wall Keypad with Wireless Mesh Integration and LED Feedback for Scene Recall
