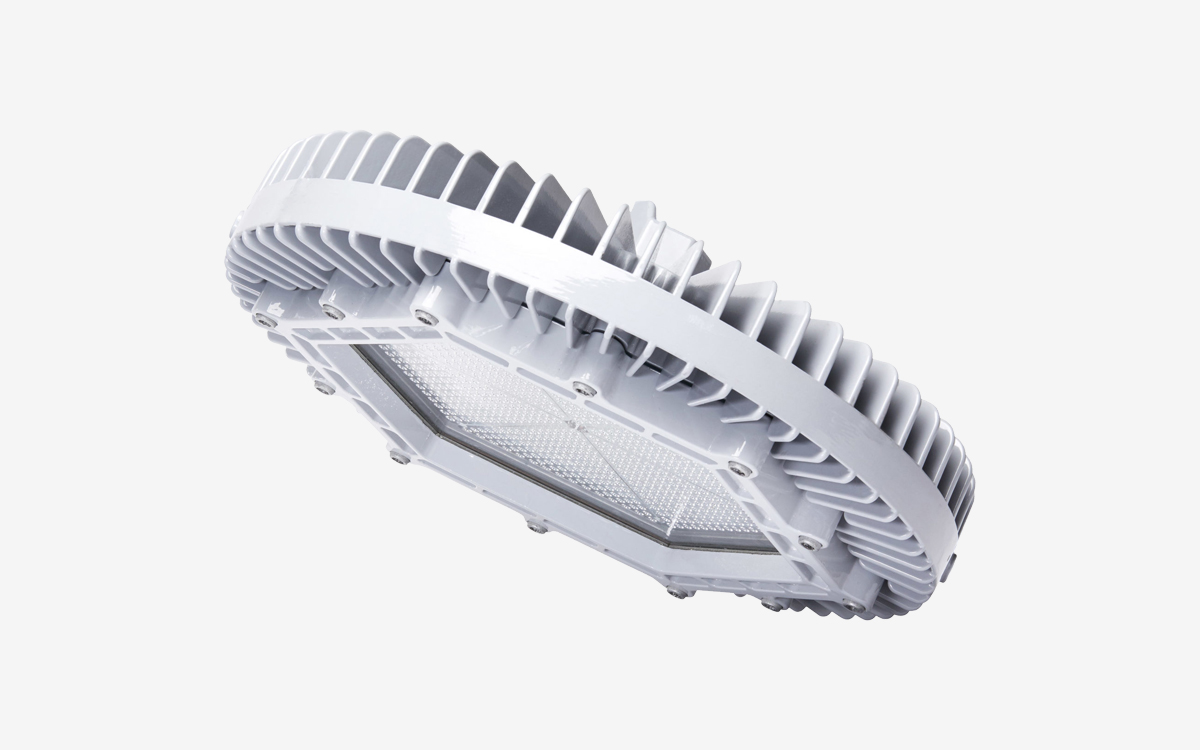

Dialight’s SafeSite® LED High Bay fixture is engineered to deliver industry-leading performance, durability, and safety in the world’s most challenging hazardous environments. Known for offering the broadest range of hazardous location certifications available, the SafeSite High Bay is purpose-built to serve demanding sectors such as oil and gas (including offshore rigs), chemical processing, mining, and pulp and paper facilities. This rugged LED luminaire not only meets rigorous international standards including UL 844 (CID1, CID2, CIID1, CIID2, CIII), CSA, IECEx, ATEX, and INMETRO for Zone 1 and Zone 2 areas, but it also carries ingress and impact protection ratings of IP66/67, NEMA 4X, and IK05/IK06/IK10 to ensure long-term reliability in wet, dusty, and high-impact conditions.
With an L70 rated life exceeding 150,000 hours and a 10-year warranty covering most models, the SafeSite High Bay significantly reduces maintenance requirements, supporting safer operations and increased uptime. Designed to deliver superior lighting quality, the fixture supports lumen outputs from 9,500 to 41,300 lumens and achieves efficacy ratings up to 200 lumens per watt. It is available with various optics—including medium, oval, narrow, wide, and high-efficiency round distributions—to suit a range of application needs, along with lens options in clear or diffused polycarbonate or glass. Color temperature selections include cool white (5000K), neutral white (4000K), and warm white (2700K), with CRI levels of 70 or 80 depending on model.
Flexible installation and integration are ensured through a wide array of mounting options, including hook loop, pendant (3/4" NPT), safety retention tabs, and custom brackets, as well as configurations with junction boxes. Electrical adaptability includes compatibility with 100–277 VAC, 120–250 VDC, and 347–480 VAC systems. Additional options include 10-foot power cables, wiring boxes, and flying leads for streamlined connectivity. The driver is fully potted and sealed, providing exceptional protection and longevity, with an expected MTBF exceeding 300 years and an annual failure rate below 0.3%, based on accelerated life testing for 24/7 operation.
The SafeSite High Bay also supports advanced controls with 0-10VDC variable dimming, allowing users to reduce light output to below 10% for energy savings and increased flexibility. Electrical features include internal fusing, a power factor above 0.9, and THD below 20%. The fixture complies with IEC 61000-3-2 Class C harmonic standards and EMC regulations (FCC Title 47, Subpart B, Section 15, Class A), with RF immunity rated at 10V/m across 80MHz to 1GHz. Transient protection ratings include 8kV/4kA for 100-277 VAC models and 6kV/3kA for 347-480 VAC models per IEEE C62.41, ensuring resilience against electrical surges.
Constructed with a copper-free aluminum housing finished in grey (RAL 7040), the SafeSite High Bay features a dual-coat system comprising a chemical-resistant epoxy primer topped with a sealed polyester coat for superior corrosion resistance. The fixture is designed to endure vibration up to 5G for 750,000 cycles and shock loads up to 50G, per IEC testing standards, making it ideal for environments with heavy machinery and constant motion. With optional battery backup for emergency lighting and most models qualifying for DLC Premium listings, Dialight’s SafeSite LED High Bay stands as a top-tier solution for high-performance illumination in hazardous industrial settings.
