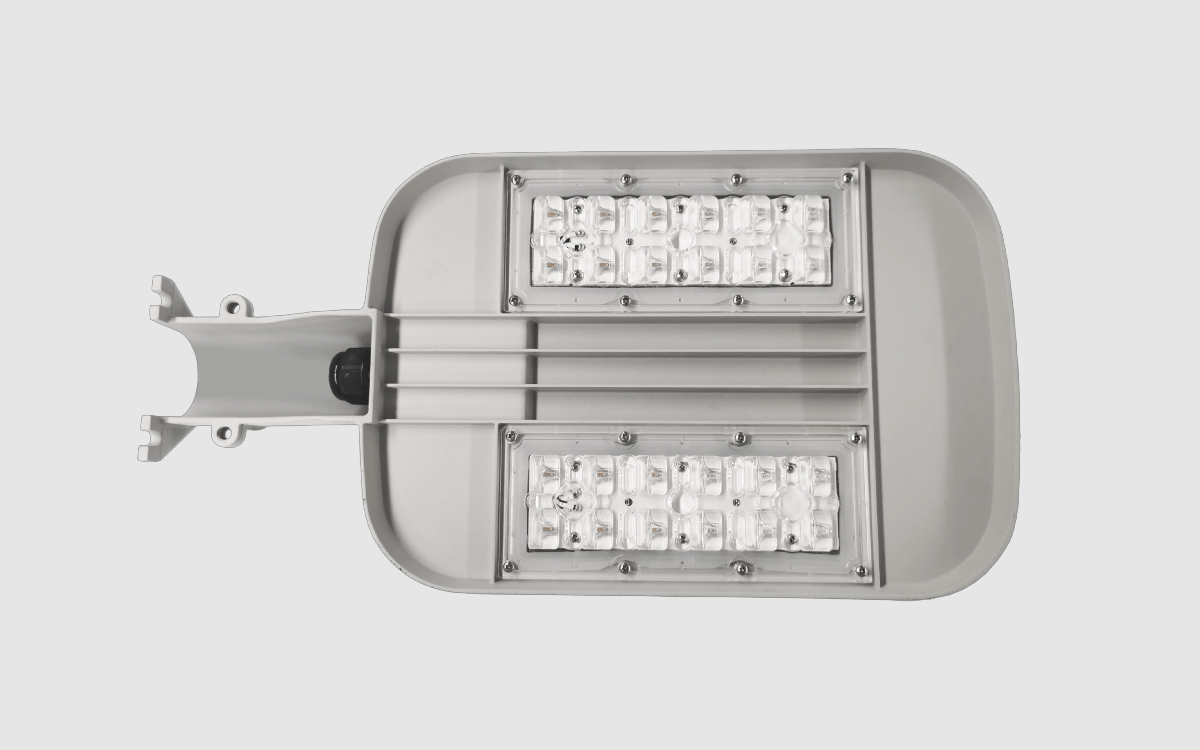

The CVO 2 is a compact and versatile outdoor-rated area light designed to deliver bright, efficient illumination across a variety of industrial and commercial applications. With lumen outputs reaching up to 11,000 lumens for the 5000K model, 8,000 lumens for the 2200K warm white version, and 6,500 lumens for the Amber LED variant, the CVO 2 offers flexible lighting options to meet specific project needs. Its highly efficient optics are engineered to direct light precisely where it is needed while minimizing glare. The fixture features a full cutoff, zero uplight design, which significantly reduces light pollution and complies with DarkSky requirements, particularly for the 2200K and Amber models.
Primarily intended for use in demanding environments such as conveyor belts, catwalks, building perimeters, roadways, and other wall or pole-mounted installations, the CVO 2 is built to withstand harsh conditions typical of mining, maritime, and heavy industrial sites. The fixture is constructed with a marine-grade cast aluminum housing, finished in a durable gray polyester powder coat, and includes marine-grade 316 stainless steel hardware for exceptional corrosion resistance. Its impact-resistant polycarbonate lens, combined with Type II, Type III, or Type V optical distributions, allows for tailored light dispersion suited to various application requirements.
The CVO 2 operates efficiently on a wide input voltage range of 120-277V or 277-480V at 50/60Hz and includes built-in overload, over-voltage, over-temperature, and short-circuit protections to ensure safe, reliable performance. It is also equipped with 0-10V dimming capability for adjustable light levels and energy savings. The fixture accommodates both wall and pole mounting, fitting standard pipe sizes including NPS 1.25 inch (1.66 inch OD) and DN 32 mm (42 mm OD), and is rated for vibration up to 3G at resonant frequency, confirming its robustness in industrial settings.
For emergency lighting requirements, the CVO 2 includes an optional emergency battery (EMB) unit operating at 120-277V with a 90-minute runtime, providing approximately 2,900 initial lumens and 1,900 typical lumens during emergency operation. The ambient operating temperature for non-EMB models ranges from -40°C to +50°C, while EMB-equipped units operate safely from -20°C to +50°C.
Certified to meet stringent industry standards, the CVO 2 holds ETL/cETL certification to UL 1598 for wet locations and UL 1598A for marine saltwater environments. It is UL 844 certified for hazardous locations, covering Class I Division 2 Groups A, B, C, D, Class II Division 2 Groups F and G, and Class III Division 2, with a maximum surface temperature rating of T5 (100°C). Additional compliance includes CSA standards C22.2 No. 250.0 and No. 137, UL 924 for emergency lighting equipment, CE, UKCA, IP66, NEMA 4X, DLC listing, and RoHS. The 2200K and Amber LED models are DarkSky International approved, containing less than 7% and 1% blue light respectively, adhering to Chilean Supreme Decree No. 1 of 2022 regulations for minimal blue light emission. The fixture also meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions.
Key applications for the CVO 2 include illumination of heavy industrial conveyor belts, catwalk lighting, bulk material handling areas, narrow pathways and walkways, pole lighting, wall perimeter lighting, general area lighting, and street lighting. The combination of rugged construction, versatile optics, wide operating temperature range, and comprehensive certifications makes the CVO 2 an economical and reliable solution for LED lighting upgrades and new installations in harsh outdoor environments.
