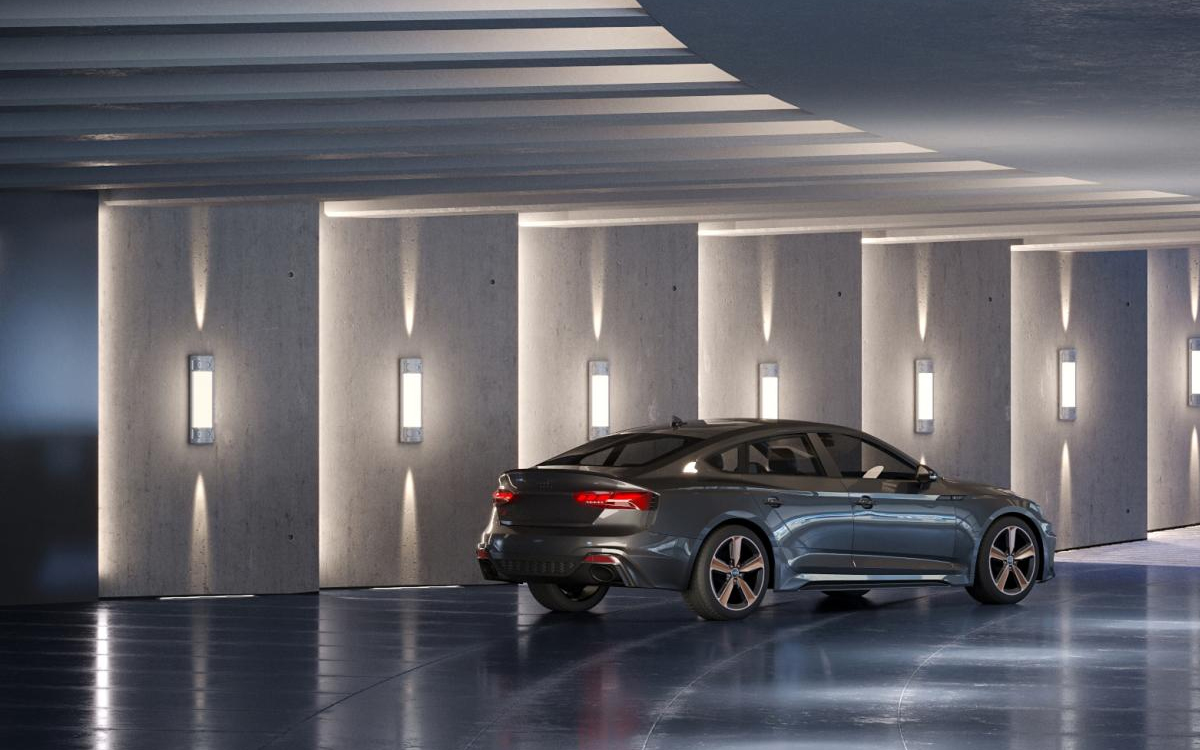

SENTINEL is a bold architectural wall luminaire designed to secure and illuminate exterior environments with powerful omnidirectional light. Engineered to provide versatile lighting options, SENTINEL offers optional uplight and downlight in both narrow and wide beam configurations, ensuring optimal visibility and aesthetic enhancement in a variety of settings. Whether used for safety, architectural expression, or ambient lighting, SENTINEL is a commanding presence in any outdoor lighting design.
Available in three distinct fascia styles—Sentinel, Sentinel II, and Sentinel III—the luminaire allows for design flexibility while maintaining consistent performance. Its construction features a durable die-cast and extruded low-copper aluminum housing, offering superior resistance to corrosion. The front housing is hinged for easy maintenance and secured by a bolt cleverly concealed behind a spring-loaded flap, preserving the fixture's clean, uninterrupted exterior form.
SENTINEL is finished with a metallic, exterior-grade powder coat paint, ensuring durability against environmental exposure and UV degradation. Its internal components are equally resilient, with a one-piece silicone gasket providing a weather-tight seal and an aluminum reflector finished in white powder coating to optimize light output. The diffuser is made of UV-stabilized polycarbonate, offering both impact resistance and optical clarity in outdoor conditions.
The luminaire operates on a high power factor (HPF) electronic driver, compatible with input voltages of 120–277V and 347V in North America (240V in the EU). Dimming capabilities are available for the direct light component, while the optional up/down lights are non-dimmable. Installation is straightforward, with SENTINEL mounting directly over a standard electrical junction box for North American projects.
Built to perform even in challenging environments, SENTINEL functions reliably at temperatures as low as -20°C, making it suitable for a wide range of climates. For emergency lighting scenarios, an optional remote emergency system is available, delivering 1.5 hours of battery backup (or 3 hours in EU models). This system includes an inverter module, NiCad batteries, and a remote LED charge indicator with test switch, capable of being mounted up to 15 feet (4.5 meters) from the luminaire. The test switch fits a standard single-gang electrical box (not included).
Performance metrics are based on a minimum 80 CRI and 3000K color temperature, with delivered lumens optimized for clarity, coverage, and visual comfort. SENTINEL is IP65 rated and certified for wet locations, ensuring it stands up to rain, dust, and other outdoor conditions. With its combination of strength, style, and functionality, SENTINEL is a reliable and versatile choice for architectural wall lighting across commercial, civic, and institutional environments.
