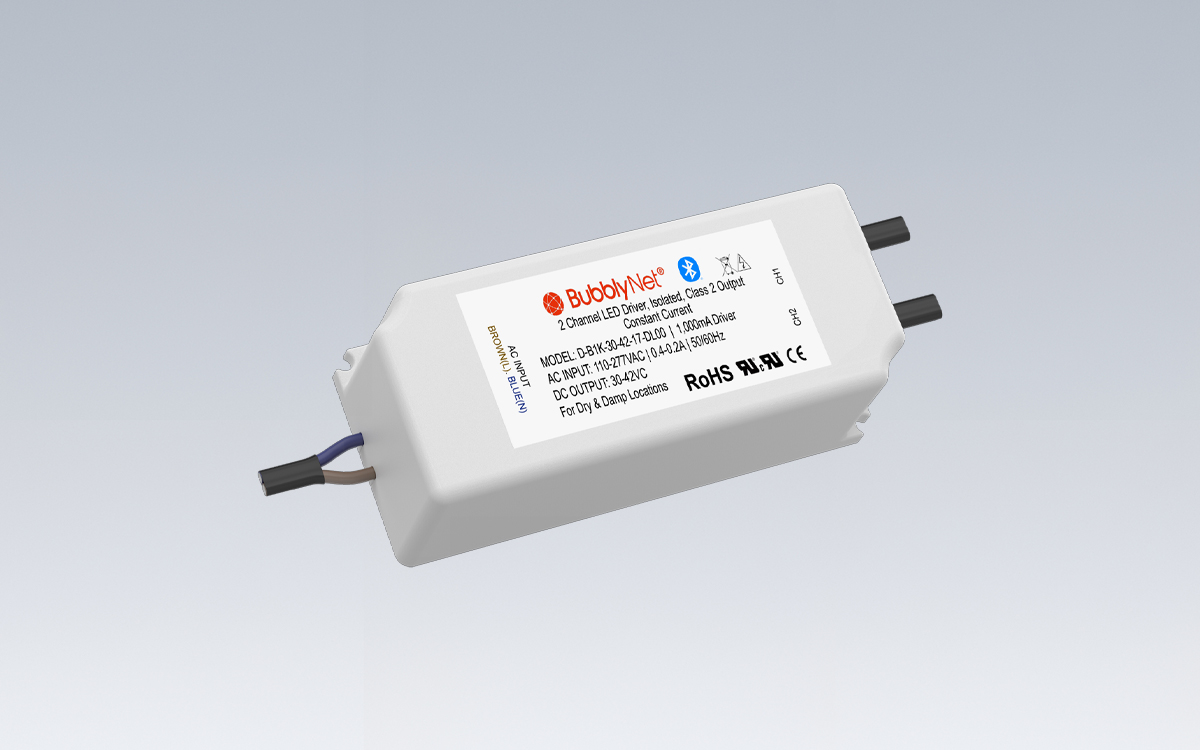

The D-B1K-30-42-17-DL00 is a dual-channel LED driver that functions as both a standalone control solution and a key component within sophisticated Bluetooth® Mesh Networks. Acting like two drivers in one compact unit, it is fully programmable from 100mA up to 1,000mA, making it ideal for Tunable White lighting applications that require precise control of color temperature and output balance. This flexibility allows it to drive a wide range of fixtures, supporting both simple installations and large-scale connected lighting systems.
This wireless Tunable White driver operates via Bluetooth® and does not require an external gateway, simplifying network setup and minimizing hardware requirements. It works on an input voltage range of 110–277VAC and delivers a DC output of 30–42VDC with a combined maximum current of 1A across its two channels. These channels are used to blend different light sources, enabling dynamic adjustment of white tones from warm to cool. The driver incorporates essential protection features, including over-current, short-circuit, and over-temperature safeguards, ensuring long-term reliability and safe operation in demanding environments.
Installation of the D-B1K-30-42-17-DL00 is straightforward. The universal AC input wires connect directly to the main power line, while the DC output wires connect to each tunable white color channel of the fixture. Once powered, the driver automatically begins broadcasting its identification code, signaling readiness for commissioning through the BubblyNet App. During this process, the app provisions the device by assigning security keys, network addresses, and configuration data, allowing it to securely join the Mesh Network. After provisioning, the driver is fully integrated and ready for configuration, supporting both data publishing and subscribing functions within the network.
Physically, the driver measures 4.25 x 1.7 x 1.25 inches (108 x 43 x 25.4 mm), with available housing options measuring 12 x 2.5 x 1.625 inches (305 x 63.5 x 41.3 mm). This compact form factor provides flexibility for a variety of installations, from fixture integration to remote mounting. For detailed housing options and pricing, BubblyNet Sales can be contacted directly.
The D-B1K-30-42-17-DL00 represents a versatile and intelligent solution for modern tunable white lighting systems, combining ease of use, robust performance, and wireless connectivity within a single, efficient driver platform.
